Precision Atmosphere Furnaces & Controlled Thermal Processing
Engineered for demanding metallurgy, powder processing, and advanced industrial manufacturing. Haitem custom protective atmosphere furnace systems deliver oxidation-free thermal processing with exact gas control and dependable continuous operation.
Gas Flow Rate
45.2 m³/h (N₂ / H₂ Mix)
Target Temp
1,250°C
ISO 9001:2015
Certified Quality
CE Compliant
Safety Verified
Global Deployments
Across 40+ Countries
Engineering Support
Direct Factory Service
Controlled Atmosphere Furnaces & Process Systems
Select a product category to explore specialized process atmosphere equipment engineered for precise temperature and gas control.

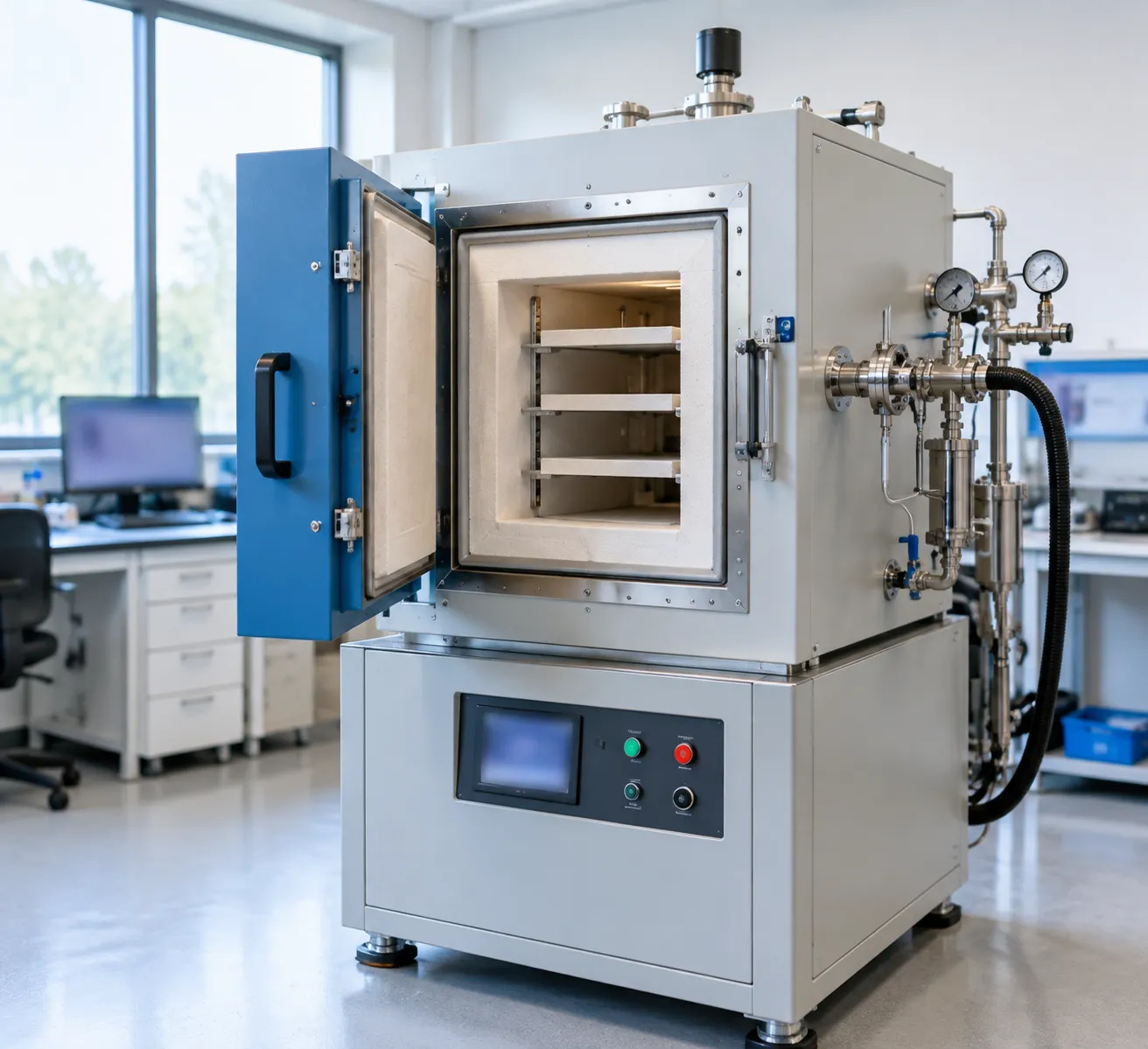

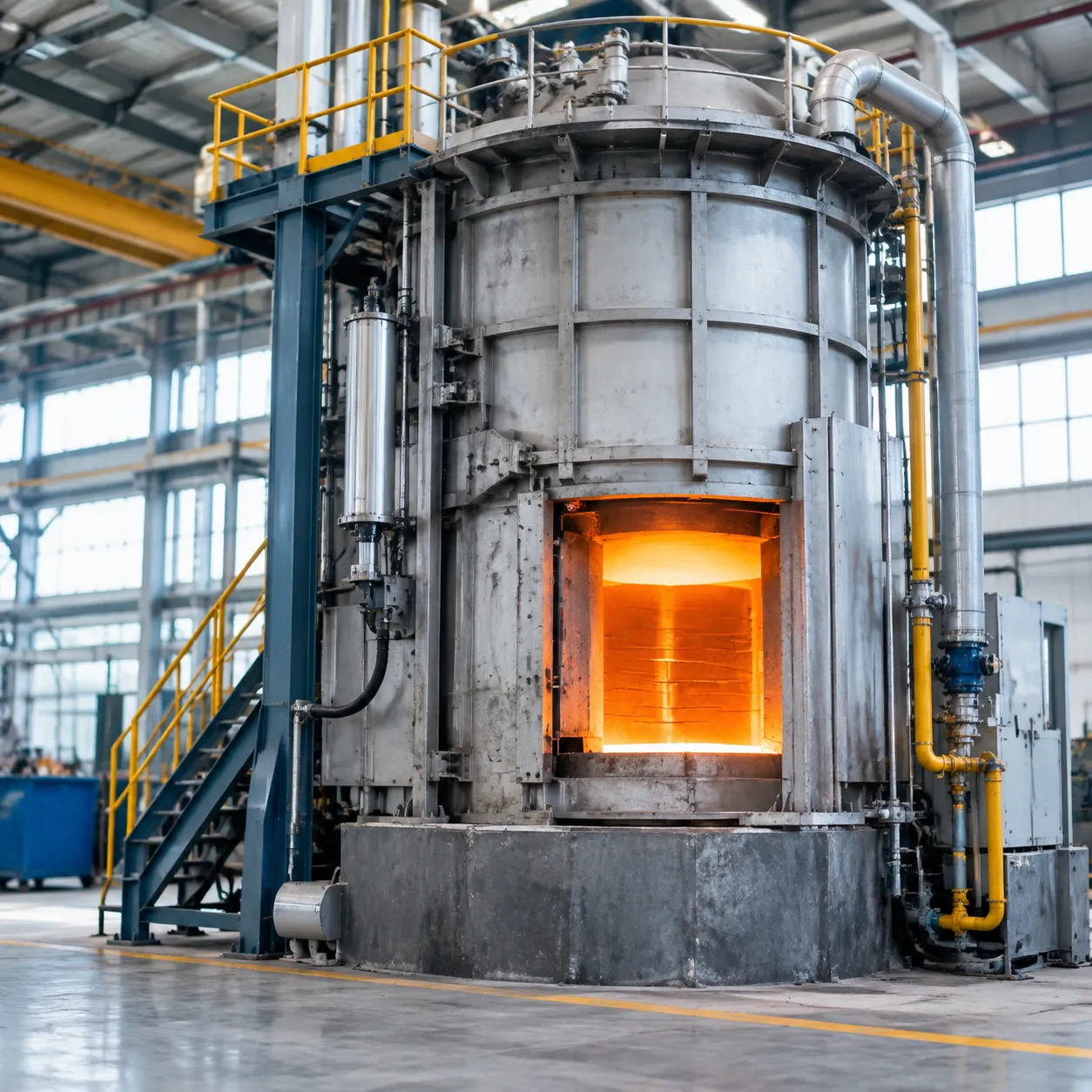

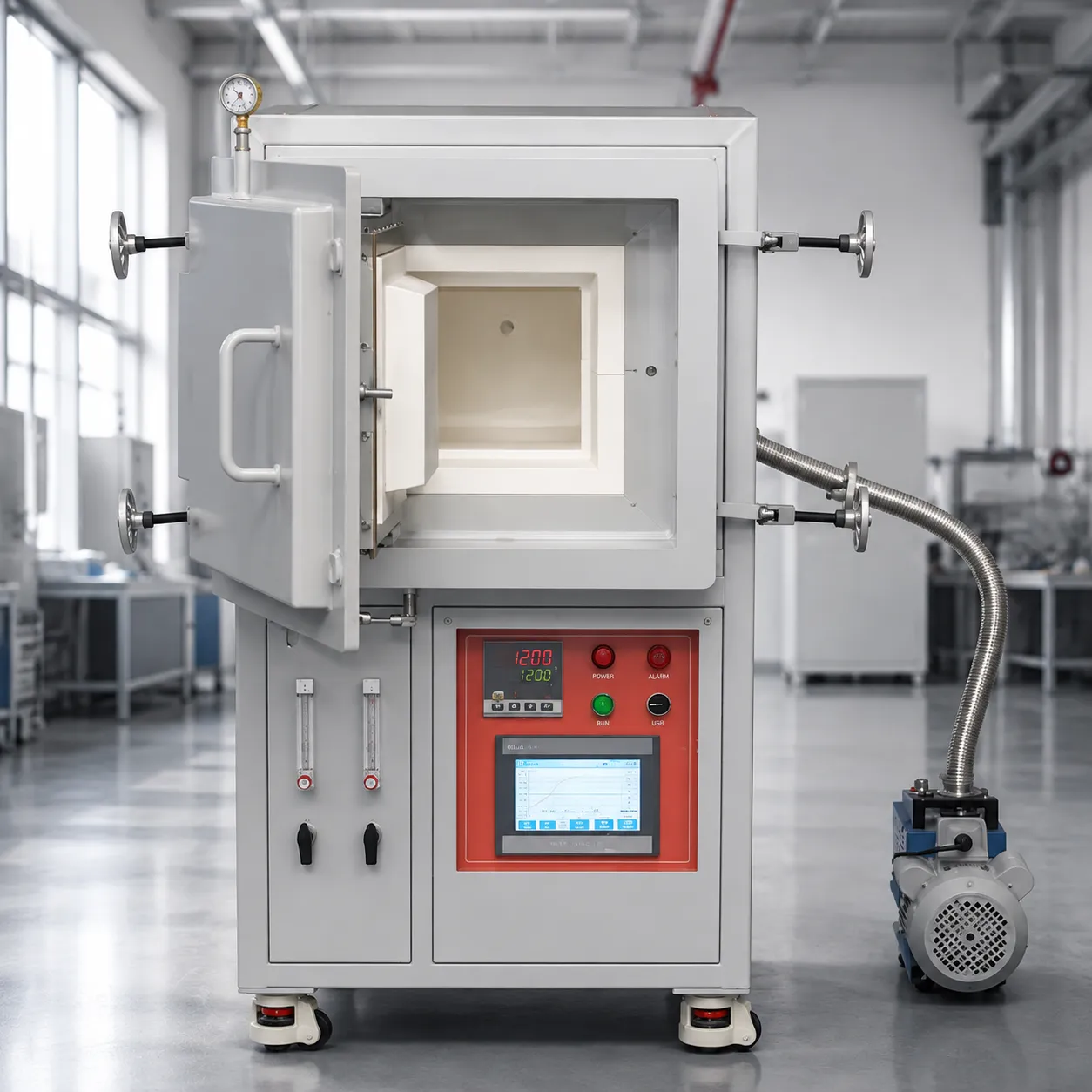

Batch Thermal Processing Controlled Atmosphere Box & Pit Furnaces
Heavy-duty sealed retort systems engineered for gas carburizing, nitriding, and bright annealing under controlled atmospheres.

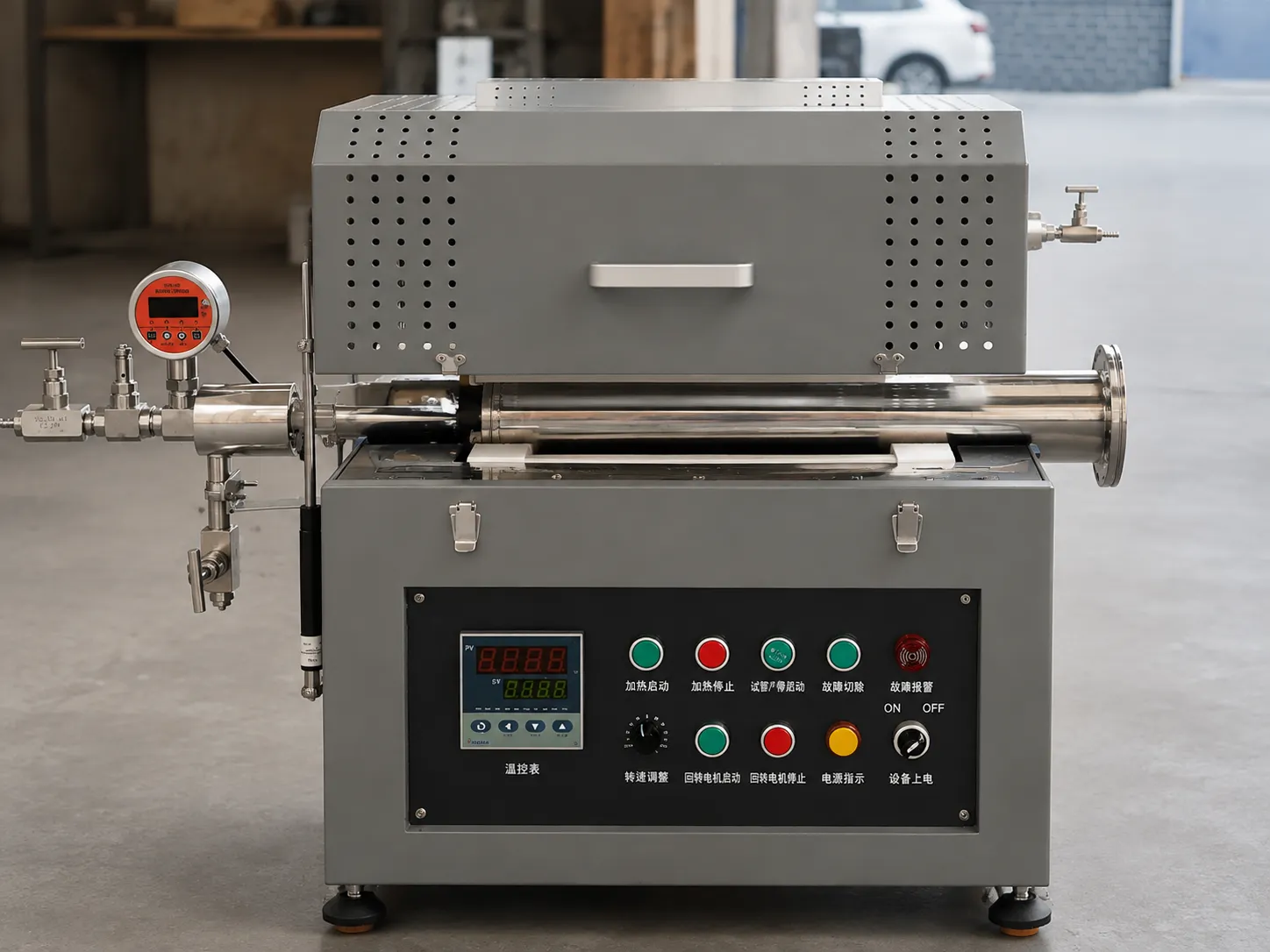

Precision R&D Systems Tube Atmosphere Furnaces
High-precision tube atmosphere furnace configurations with multi-zone heating for CVD, crystal growth, and specialized testing.

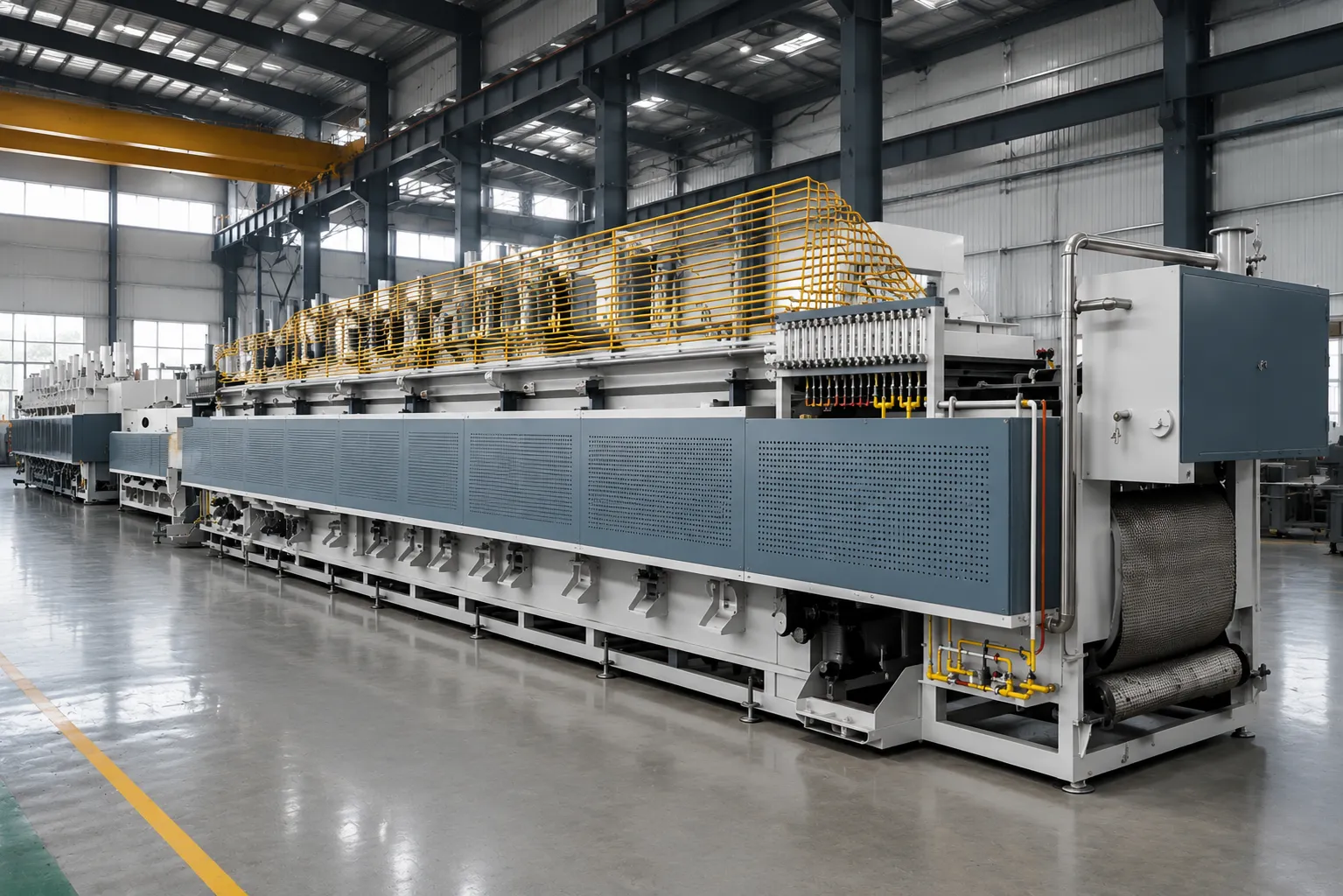

Continuous Production Continuous Mesh Belt Atmosphere Furnaces
Require Custom Engineering for Industrial Applications?
Haitem Furnace delivers custom controlled atmosphere furnace systems tailored to your unique manufacturing-capabilities and requirements.
Atmosphere Control Technology & Gas Compatibility Matrix
Haitem Furnace delivers advanced systems engineered for protective atmosphere thermal processing, giving industrial operators total control over oxygen levels, gas flow dynamics, and chamber pressure. Whether operating an inert gas furnace for non-reactive sintering or a nitrogen hydrogen furnace for active oxide reduction, our architectures guarantee reliable, repeatable, and oxygen-free heating across demanding production cycles.
Precision Oxidation Control Mechanisms
Industrial heat treatment of sensitive metals and advanced ceramics requires absolute isolation from atmospheric oxygen. Haitem Furnace utilizes water-cooled dual-gasket sealing, precision-machined flanges, and elastomer gas barriers to maintain ultra-low leak rates. In-line zirconia sensors track oxygen concentrations down to single-digit PPM levels to ensure continuous, non-oxidizing thermal processing.

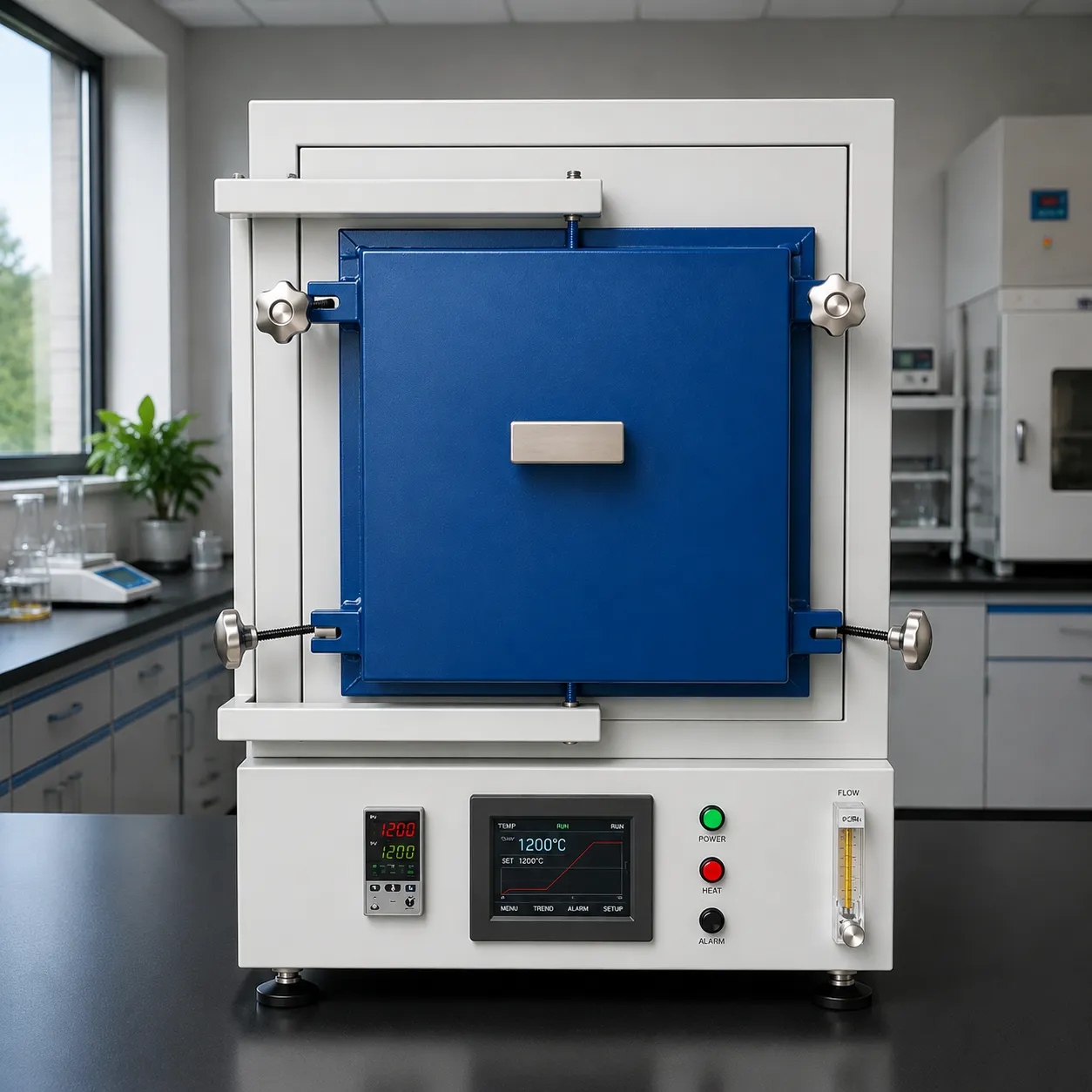

Mass Flow Controller Integration
Atmospheric purity depends on exact gas delivery. Our control panels integrate multi-channel Mass Flow Controllers (MFCs) that automatically manage individual gas introduction rates. Programmable digital mixing manifolds enable smooth transitions between initial nitrogen purging, active reaction cycles, and controlled gas-assisted cooling.
Core Technical Capabilities
- ✓ Closed-Loop Gas Management Digital MFC loops deliver dynamic atmosphere mixing with high repeatability across thermal runs.
- ✓ Automated Emergency Purging Integrated high-flow nitrogen valves flush the hot zone instantly if system anomalies are detected.
- ✓ Real-Time Oxygen Tracking Zirconia oxide sensing arrays feed continuous PPM-level oxygen telemetry to the central PLC.
Industrial Process Gas Compatibility Matrix
The matrix below details supported atmosphere gases, operational chemistry classifications, primary industrial applications, and integrated safety engineering built into Haitem systems.
| Atmosphere Gas | Thermal Category | Primary Application | Safety Hardware |
|---|---|---|---|
| Nitrogen (N₂) | Inert | Oxidation prevention, rapid cooling, pre-heat chamber purging | Automatic over-pressure relief valves and low-supply pressure interlocks |
| Argon (Ar) | Inert | Titanium sintering, high-temp alloy processing, refractory metal heat treatment | High-purity inert gas furnace piping with dual-stage precision regulators |
| Hydrogen (H₂) | Reducing | Bright annealing, MIM debinding & sintering, metal oxide reduction | Nitrogen hydrogen furnace safety interlocks and automatic spark igniters |
| Dissociated Ammonia | Reducing | Stainless steel bright annealing, alloy brazing, sinter-hardening | In-line dew-point sensors and automated leak-detection isolation valves |
| Endothermic / RX Gas | Active | Carburizing, carbonitriding, carbon-potential controlled heat treating | Infrared gas analyzers and closed-loop carbon potential controllers |
Safety Engineering & Protection Systems
Operating reactive or flammable gas mixtures requires absolute operational security. Every Haitem controlled atmosphere furnace integrates multi-tiered hardware safeguards and automated software interlocks. Beyond controlled gas environments, explore our advanced vacuum furnaces designed for ultra-clean processing in demanding thermal applications.
Explosion-Proof Burn-Off Igniters
Pilot burner assemblies and continuous spark igniters cleanly combust effluent hydrogen and hydrocarbon gases, preventing combustible gas buildup in exhaust ductwork.
Positive Differential Pressure Control
Automated pressure management maintains constant positive internal pressure, stopping ambient air infiltration and protecting workpiece surfaces throughout heating cycles.
Triple-Redundant Safety Interlocks
PLC safety circuits trigger immediate emergency nitrogen purging if supply pressure, power supply, temperature parameters, or cooling water flow fall outside safe thresholds.
Multi-Zone Dew Point Tracking
Capacitive and chilled-mirror sensors measure atmospheric dew points down to -60°C (-76°F), verifying dry, non-oxidizing gas environments prior to high-temperature ramp-up.
Industrial Applications & Material Processing Solutions
Haitem Furnace delivers engineered industrial atmosphere furnace systems designed for exact thermal cycles and protective ambient conditions. Advanced thermal processing demands rigorous control over ambient gas chemistry, heating uniformity, and atmosphere purity. Our custom systems eliminate oxygen contamination, control surface reactions, and maximize density across metal, ceramic, and semiconductor manufacturing environments.

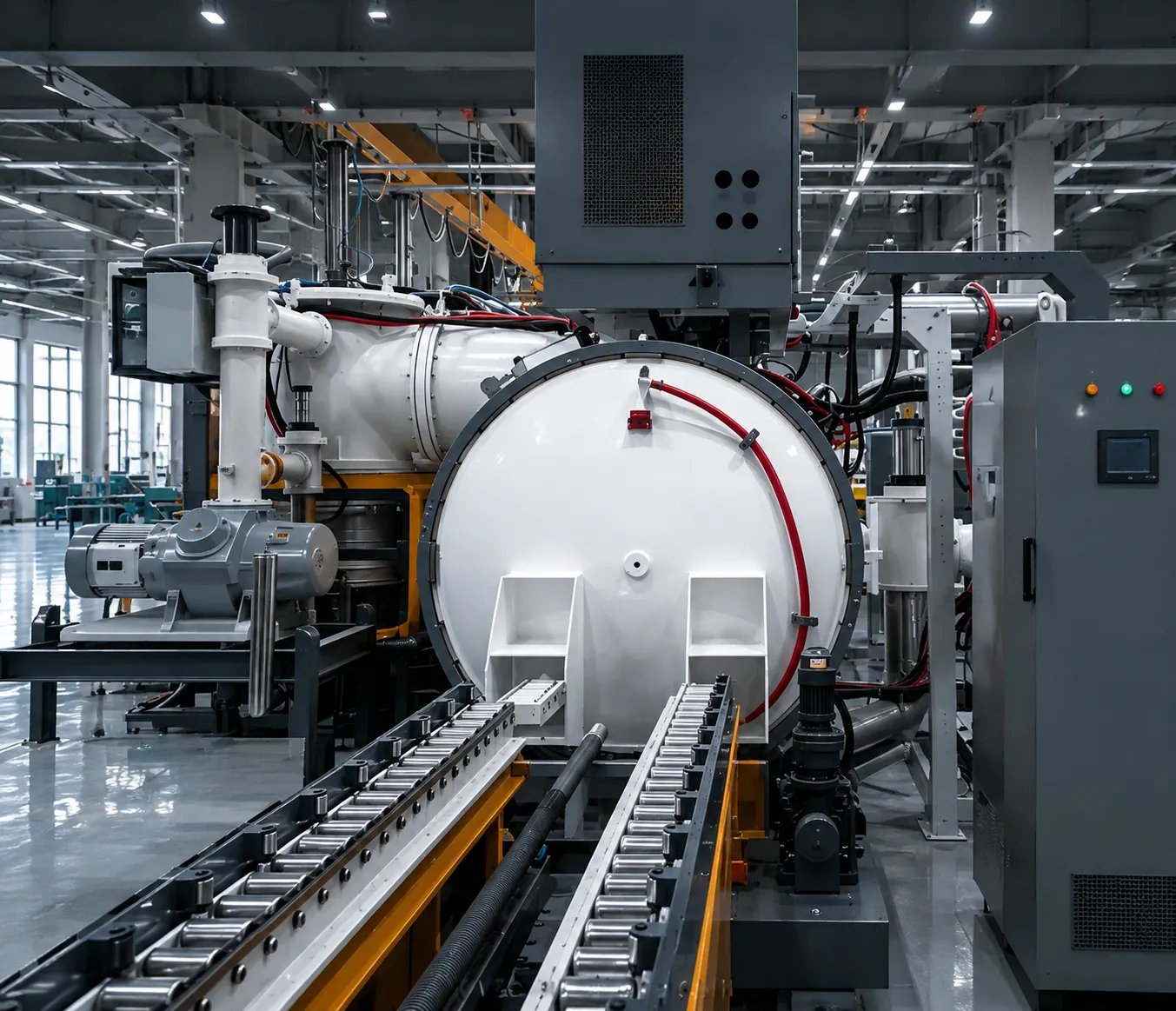

Powder Metallurgy & MIM Thermal Processing
High-density metal injection molding (MIM) and powder metallurgy components rely on strict ambient gas control during critical binder removal and high-temperature sintering phases. Operating under controlled nitrogen, argon, or hydrogen mixtures, our industrial manufacturing capabilities allow us to build systems that ensure stable thermal profiles that prevent surface oxidation and preserve alloy chemistry.
By continuously monitoring oxygen levels and gas dew points, these thermal processing solutions allow precise powder metallurgy atmosphere sintering that eliminates structural voids, promotes microstructural cohesion, and achieves maximum component density without carbon loss or grain growth.
Key Process Capabilities
- Multi-Stage Thermal Debinding: Automated profile transitions from low-temp binder burnout to high-temperature sintering under protective gas flow.
- Ultra-Low Oxygen & Dew Point Control: Integrated zirconia sensors maintain atmosphere purity down to under 5 ppm oxygen.
- MIM Thermal Processing Efficiency: High throughput belt or batch configurations tailored for titanium, stainless steel, and tool steel.

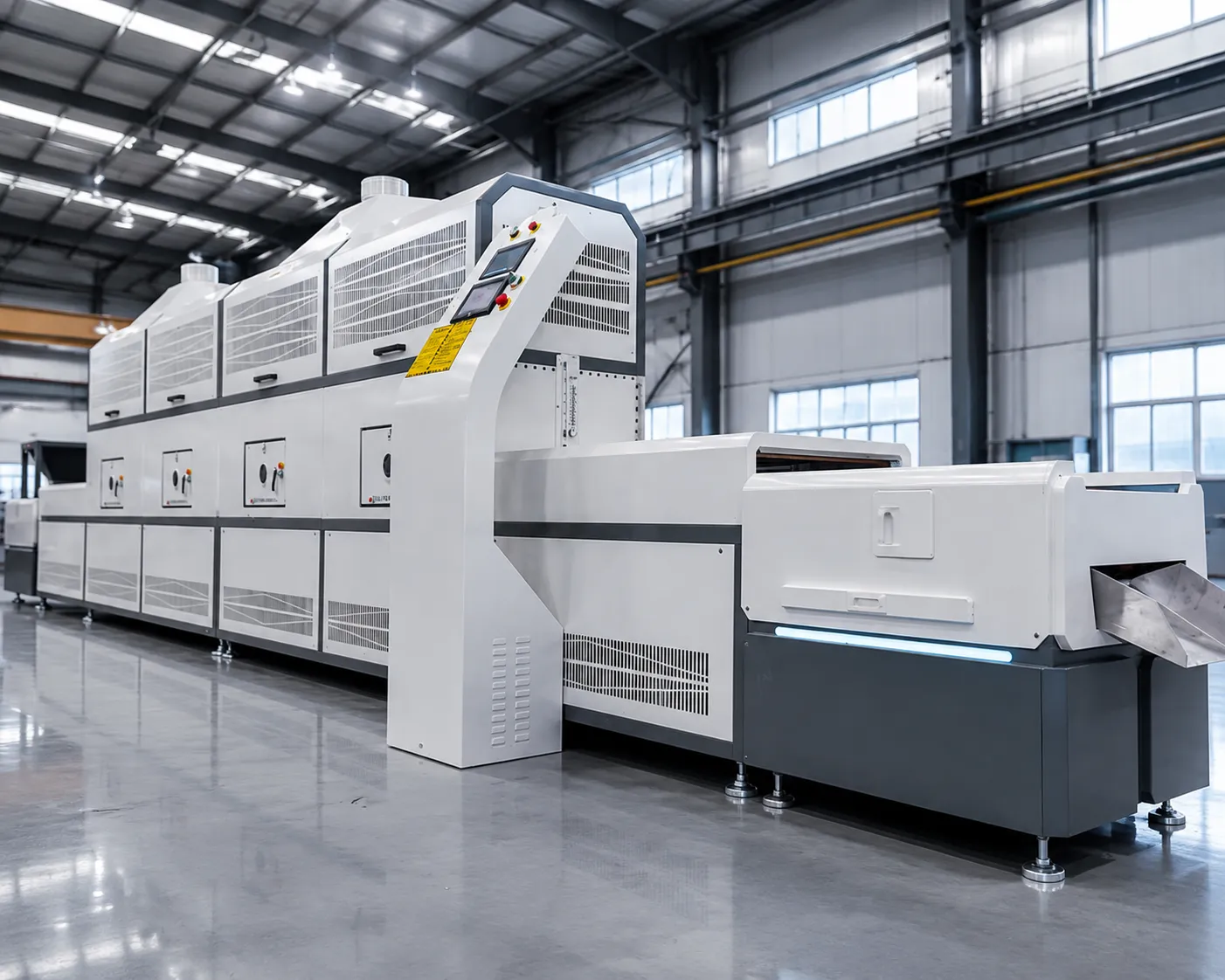

Advanced Ceramics & Semiconductor Wafer Thermal Processing
Technical ceramic substrates, optical glass, and semiconductor wafers demand uncompromising thermal repeatability alongside contamination-free process gases. Standard air firing exposes delicate silicon substrates and high-purity oxides to uncontrolled moisture and atmospheric particles.
Haitem protective atmosphere thermal processing equipment utilizes high-purity quartz and custom refractory linings combined with precise nitrogen or argon purging. In addition to atmosphere systems, we also offer advanced vacuum furnaces for ultra-clean, high-temperature processing. This architecture ensures optimal crystal growth, prevents phase boundary defects, and guarantees high dielectric integrity across electronic components.
Key Technical Advantages
- High-Purity Inert Gas Blanketing: Ultra-pure argon and nitrogen purging prevents oxidation and volatile particle contamination during high-temp firing.
- Multi-Zone Thermal Uniformity: Precision PID controllers and multi-zone heating elements maintain tight ±1°C heating distribution.
- Cleanroom Compatible Integration: Sealed water-cooled flanges allow direct installation within ISO Class 5 cleanrooms.

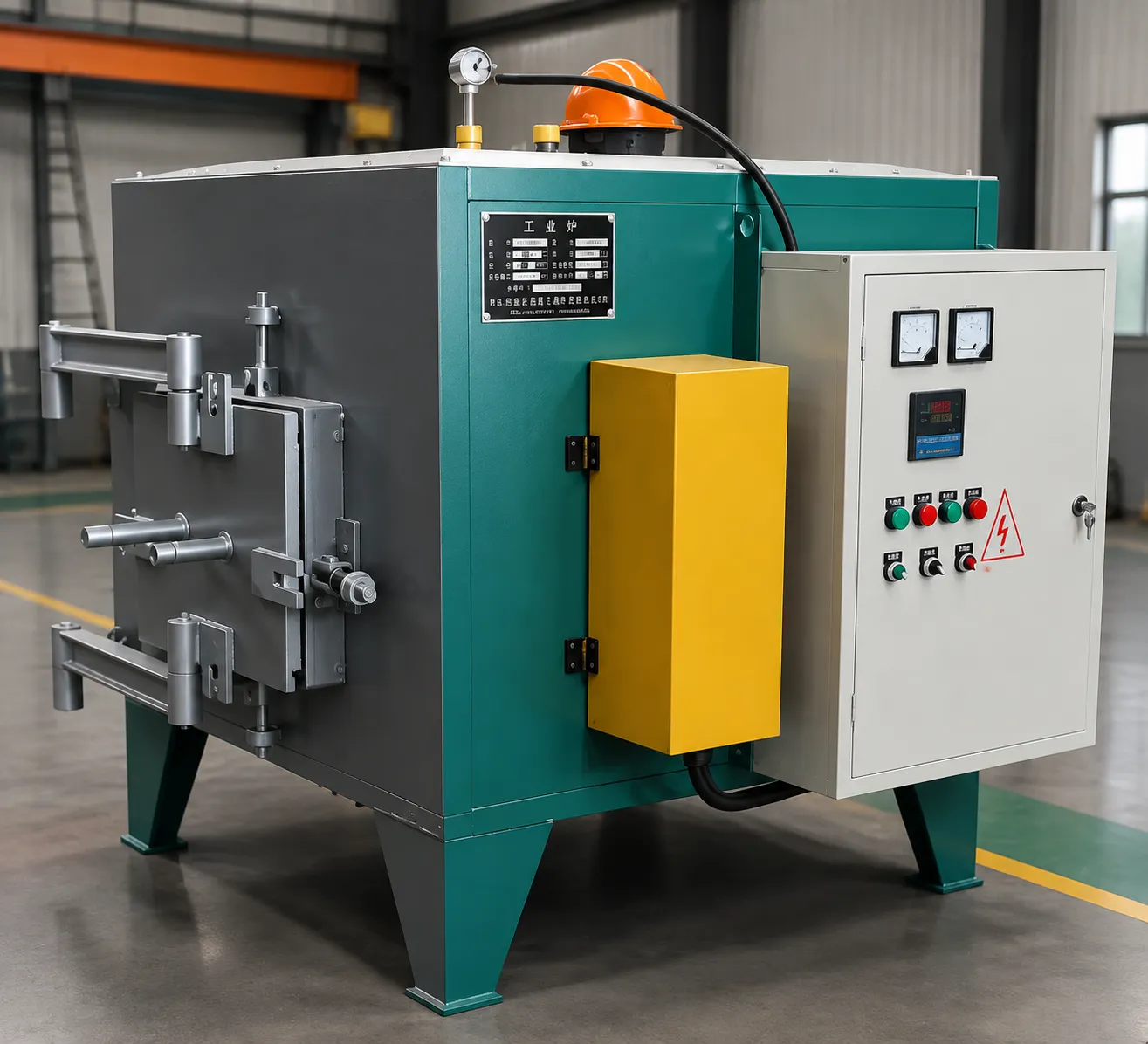

High-Precision Metallurgy & Bright Annealing Solutions
Precision metal tubing, wire, stampings, and automotive fasteners require clean surface finishes free from scale and tarnish. Traditional open-air heat treating leaves surface oxides that require post-process chemical pickling or mechanical grinding.

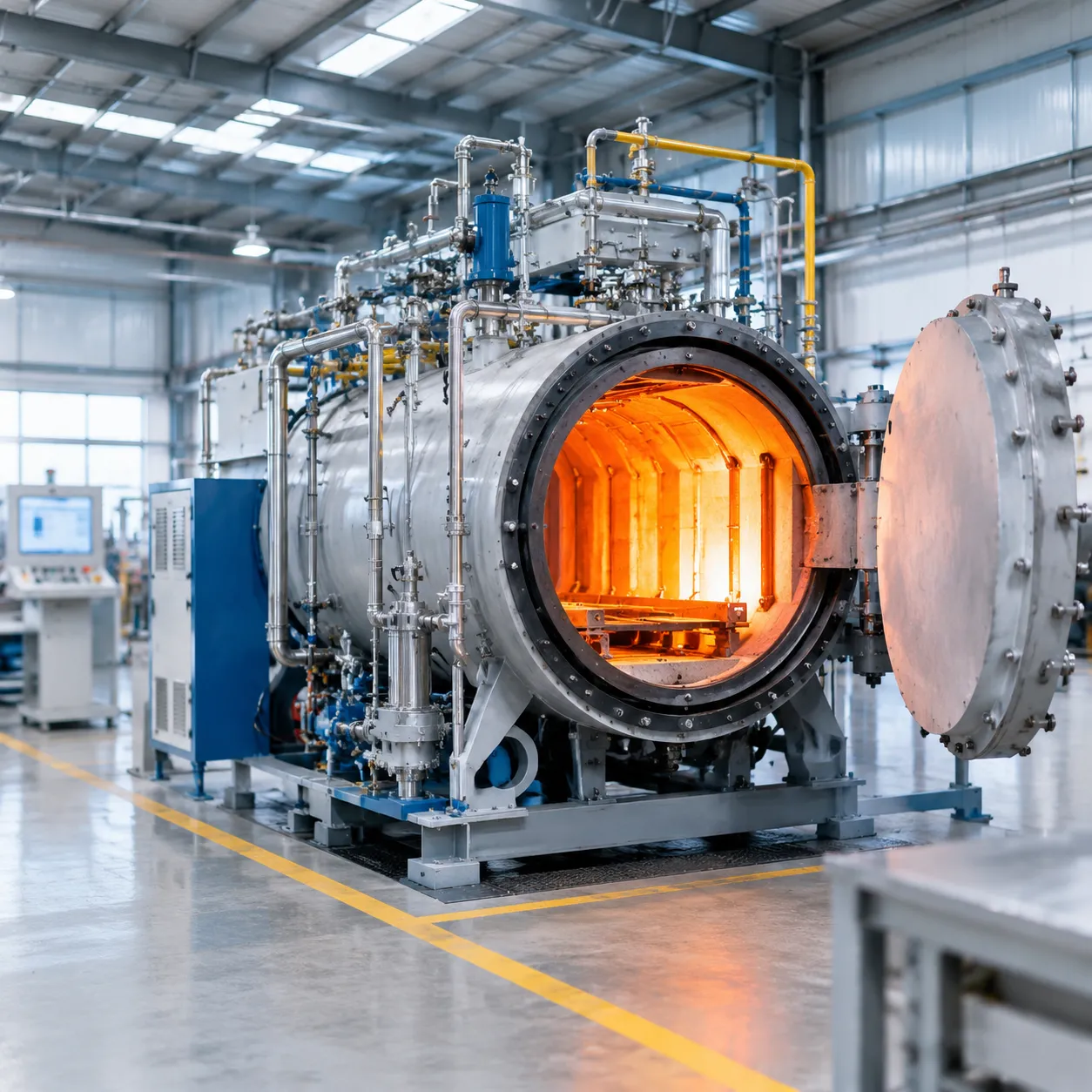

Engineered with high-integrity gas sealing, a Haitem bright annealing furnace uses 100% pure hydrogen or nitrogen-hydrogen mixed gases to strip micro-scale oxides during heating. The result is a scale-free, bright metallic luster directly out of the cooling chamber, drastically cutting post-processing labor and chemical waste.
Key Metallurgical Features
- Nitrogen Hydrogen Furnace Controls: Automated mass flow controllers adjust gas ratios dynamically based on alloy specs.
- Rapid Water-Cooled Cooling Zone: Accelerated cooling rates prevent carbide precipitation in austenitic stainless steels.
- Comprehensive Safety Interlocks: Positive pressure management and auto-purge safety loops prevent explosive gas mixtures.
Material Processing Capability Matrix
Match your specific manufacturing material with recommended atmosphere types, thermal operating windows, and target outcomes achieved with Haitem custom industrial atmosphere furnaces.
| Industry Sector | Primary Target Materials | Recommended Gas Atmosphere | Operating Temp Range | Processing Value Proposition |
|---|---|---|---|---|
| Powder Metallurgy & MIM | Stainless steel, titanium alloys, tool steels, tungsten heavy alloys | 100% Pure H₂, Dissociated Ammonia, Ultra-Pure N₂ / Ar | 1100°C – 1450°C | Eliminates structural voids, optimizes density, prevents decarburization |
| Semiconductors & Microelectronics | Silicon wafers, sapphire crystals, quartz optics, GaAs substrates | High-Purity Argon, Ultra-Pure N₂, N₂/H₂ Forming Gas | 800°C – 1600°C | Prevents surface oxidation, ensures sub-ppm oxygen contamination |
| Advanced Technical Ceramics | Alumina, zirconia, silicon carbide, aluminum nitride | Nitrogen, Argon, Vacuum with Gas Refill | 1300°C – 1800°C | Controls crystal grain boundary structure, maximizes flexural strength |
| High-Precision Metallurgy | Austenitic stainless, copper/brass wire, magnetic alloys, nickel strip | Dry Pure H₂, Cracked Ammonia (75% H₂ / 25% N₂) | 700°C – 1150°C | Yields scale-free mirror finish, eliminates acid pickling waste |
Need Custom Atmosphere Thermal Processing Engineering?
Haitem Furnace thermal engineers design customized gas delivery manifolds, multi-zone heating profiles, and emergency safety systems aligned with your unique material requirements.

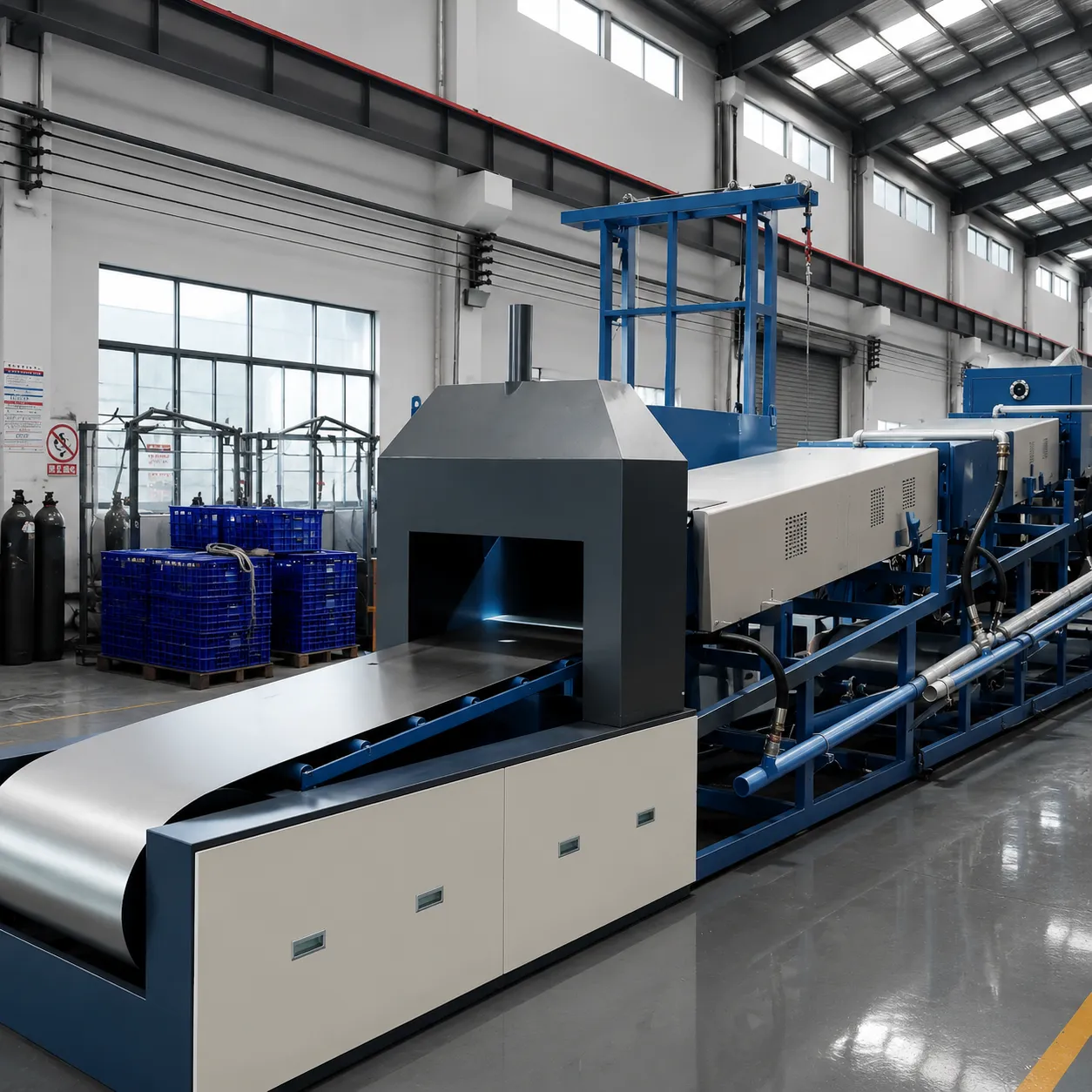

Advanced Furnace Engineering Capabilities & Quality Control
As a leading custom atmosphere furnace manufacturer, Haitem Furnace combines precision gas management with ISO-certified production standards for demanding industrial applications.
Atmosphere Patents
Proprietary gas sealing and flow innovations that maintain oxygen-free thermal integrity.
ISO Certified Quality
Full ISO 9001 compliance ensuring consistent structural build and repeatable heating accuracy.
Pre-Shipment QA Testing
Rigorous factory thermal mapping, helium leak checks, and multi-point atmosphere testing.
Global Deliveries
Field-proven thermal processing systems operating in advanced facilities worldwide.
Verified Quality Standards & Compliance Certifications
Your Trusted Custom Atmosphere Furnace Manufacturer
As an established ISO certified furnace supplier, Haitem Furnace delivers bespoke thermal equipment designed for high-purity atmosphere thermal processing. Driven by our specialized manufacturing-capabilities, we integrate advanced thermomechanical design to ensure uniform heating, precise atmosphere control, and reliable continuous operation.
Custom Protective Gas Integration
Multi-channel mass flow control (MFC) for N₂, Ar, H₂, and RX endothermic gases with PPM-level oxygen tracking.
Multi-Zone Thermal Uniformity (±1°C)
Precision element placement and multi-zone PID temperature control optimized for operating ranges up to 1800°C.
Automated PLC & Explosion-Proof Safety
Automated nitrogen purge systems, pressure relief interlocks, and SCADA data logging for safe, repeatable processing.
100% pre-shipment validation: mass spectrometer leak checking and multi-point temperature profiling on every system.
Buyer Procurement Technical FAQ
Navigating the procurement of industrial atmosphere furnaces requires a clear understanding of thermal processing technology, gas handling capabilities, and safety engineering standards. Haitem Furnace provides complete technical clarity to assist engineers, facility managers, and procurement teams in evaluating process atmosphere equipment for precision manufacturing applications.
Differences Between Atmosphere Furnaces, Muffle Furnaces, and Vacuum Systems
Industrial heat treatment demands precise control over furnace chamber chemistry. Controlled atmosphere heating utilizes specified gases such as nitrogen, hydrogen, argon, or endothermic gas to flood the sealed furnace chamber, displacing atmospheric oxygen. This protective atmosphere thermal processing prevents oxidation, surface decarburization, and scale formation on metal parts at elevated temperatures.
Standard muffle furnaces operate in ambient air, which leads to surface oxidation and requires post-processing descaling or machining. Advanced vacuum furnaces remove virtually all atmospheric gases, creating a near-zero pressure environment ideal for ultra-clean aerospace alloys, but involve higher capital expenditure and lower thermal transfer speeds for specific bulk powder loads. Atmosphere furnaces strike an optimal balance for continuous or high-volume processing, providing cost-effective oxygen-free heating and rapid cycle times for powder metallurgy atmosphere sintering, MIM thermal processing, and bright annealing furnace workflows.
| Equipment Type | Operating Atmosphere | Oxidation Control | Relative Process Cost | Primary Application |
|---|---|---|---|---|
| Atmosphere Furnace | Positive Pressure Inert or Reducing Gas | High Oxygen Elimination | Moderate | MIM Sintering, Bright Annealing, Powder Metallurgy |
| Standard Muffle Furnace | Ambient Air | None (Surface Scale Formed) | Low | General Ashing, Air Tempering, Preheating |
| Vacuum Furnace | High Vacuum Pressure Environment | Ultra-High (Zero Oxidation) | High | Aerospace Titanium, Medical Implant Sintering |
Gas Atmosphere Furnace Safety Mechanisms for Flammable Gases
Operating a nitrogen hydrogen furnace or processing active gas mixtures demands robust gas atmosphere furnace safety engineering. Haitem Furnace designs multi-layered safety controls compliant with international industrial safety standards to eliminate risks associated with combustible atmospheres.
- Automated Pre-Purge Sequence: The control system enforces a mandatory multi-volume inert nitrogen gas sweep before activating heating elements or introducing combustible gas lines, ensuring oxygen concentrations drop below critical lower explosive limits (LEL).
- Dual Dew Point and Oxygen Monitoring: Integrated PPM oxygen sensors continuously verify chamber seal integrity and oxygen levels before opening active hydrogen or cracked ammonia solenoid valves.
- Fail-Safe Nitrogen Emergency Interlocks: In the event of power disruption, system over-temperature, or gas supply pressure drops, automated fast-acting pneumatic safety valves isolate reactive lines and instantly flood the chamber with pure nitrogen.
- Exhaust Burn-Off Flares and Pressure Relief: Dynamic ignition pilot flames at exhaust ports safely burn combustible tail gases, while spring-loaded over-pressure relief valves prevent chamber stress spikes.
Choosing Controlled Atmosphere Furnace Configurations for Material Processing
When choosing controlled atmosphere furnace setups, manufacturers must analyze material chemistry, thermal profiles, production throughput, and gas consumption logistics. Matching process parameters with correct atmosphere furnaces guarantees optimal metallurgical density, repeatable phase transformations, and pristine surface finish.
Inert Gas Protection
Nitrogen and argon gas environments prevent high-temperature oxidation during stainless steel stress relieving, titanium heat treating, semiconductor wafer processing, and technical ceramic firing.
Reducing Gas Atmospheres
Hydrogen and forming gas mixtures actively strip residual oxide films during powder metallurgy atmosphere sintering, debinding, MIM thermal processing, and high-precision bright annealing cycles.
Tube Atmosphere Furnace
Ideal for university research, pilot production, catalyst synthesis, and small-batch crystal growth requiring tight thermal uniformity and minimal gas volume consumption.
Continuous Mesh Belt Furnaces
Engineered for continuous high-capacity industrial throughput, such as automotive stamping annealing, coin minting, and large-scale metal powder sintering.
Custom Atmosphere Furnace Manufacturer Capabilities and Engineering Scope
As a full-service custom atmosphere furnace manufacturer and ISO certified furnace supplier, Haitem Furnace delivers tailored thermal solutions matching specialized production lines. Our internal furnace engineering capabilities cover complete physical, mechanical, electrical, and software customization.
- Chamber Dimensions and Temperature Ratings: Custom internal heating chambers rated up to 1800°C with multi-zone heating element configurations using high-grade molybdenum, silicon carbide, or graphite heating elements.
- Gas Manifold and Flow Control Integration: Precision mass flow controllers (MFC), dynamic gas mixing stations, and multi-line gas selection panels engineered for exact process repeatability.
- Automation and PLC/SCADA Systems: Programmable thermal ramps, automated door loading mechanisms, remote monitoring, and full data logging meeting stringent industrial quality standards.
Atmosphere Purity Control, Dew Point Regulation, and Leak Rate Prevention
Understanding the atmosphere furnace working principle requires evaluating how atmospheric purity is maintained throughout continuous high-temperature cycles. Moisture content measured by dew point and residual oxygen infiltration directly affect metallurgical purity and surface quality.
Haitem Furnace utilizes water-cooled double-wall stainless steel flanges, high-grade silicone or fluoroelastomer O-ring seals, and helium mass spectrometer leak testing during manufacturing. By maintaining positive internal gas pressure and integrating continuous dew point sensors measuring down to -60°C, our systems guarantee ultra-clean protective atmosphere thermal processing for critical components.
Direct Technical Engineering Support for Industrial Procurement
Connect directly with senior thermal process engineers at Haitem Furnace to discuss specialized gas atmosphere safety, chamber sizing, or request an atmosphere furnace quote tailored to your exact manufacturing requirements.
Optimize Thermal Processing with an Atmosphere Furnace Quote
Connect directly with application specialists at Haitem Furnace. Learn more about-us to request a custom heating equipment consultation tailored to your exact process atmosphere, chamber geometry, and production throughput goals. Beyond controlled atmospheres, we also design high-precision vacuum-furnaces for advanced thermal processing.
