Controlled Atmosphere Furnaces: Precision Gas Environment Heating & Thermal Processing
Engineered by Haitem Furnace for precision gas environment heating, featuring digital flow management, ultralow residual oxygen (< 10 ppm), and multi-tiered explosion-proof safety systems for powder metallurgy, MIM, and advanced ceramics sintering. Explore our full range of industrial products designed for demanding applications.
Controlled Atmosphere Furnace Engineering Advantages and Performance Commitments
Backed by decades of specialized thermal engineering, Haitem Furnace delivers precise atmosphere control and long-term mechanical reliability across every heat treatment cycle. Built in compliance with rigorous quality certifications for demanding industrial applications, our advanced oxygen control furnace systems deliver uncompromised atmospheric purity, exceptionally uniform heat distribution, and multi-layered safety protection.
Whether executing powder metallurgy sintering, metal injection molding (MIM) debinding, advanced technical ceramic processing, or bright annealing of aerospace alloys, a high-performance controlled atmosphere furnace is critical to eliminate surface oxidation, prevent decarburization, and maintain repeatable metallurgical quality.

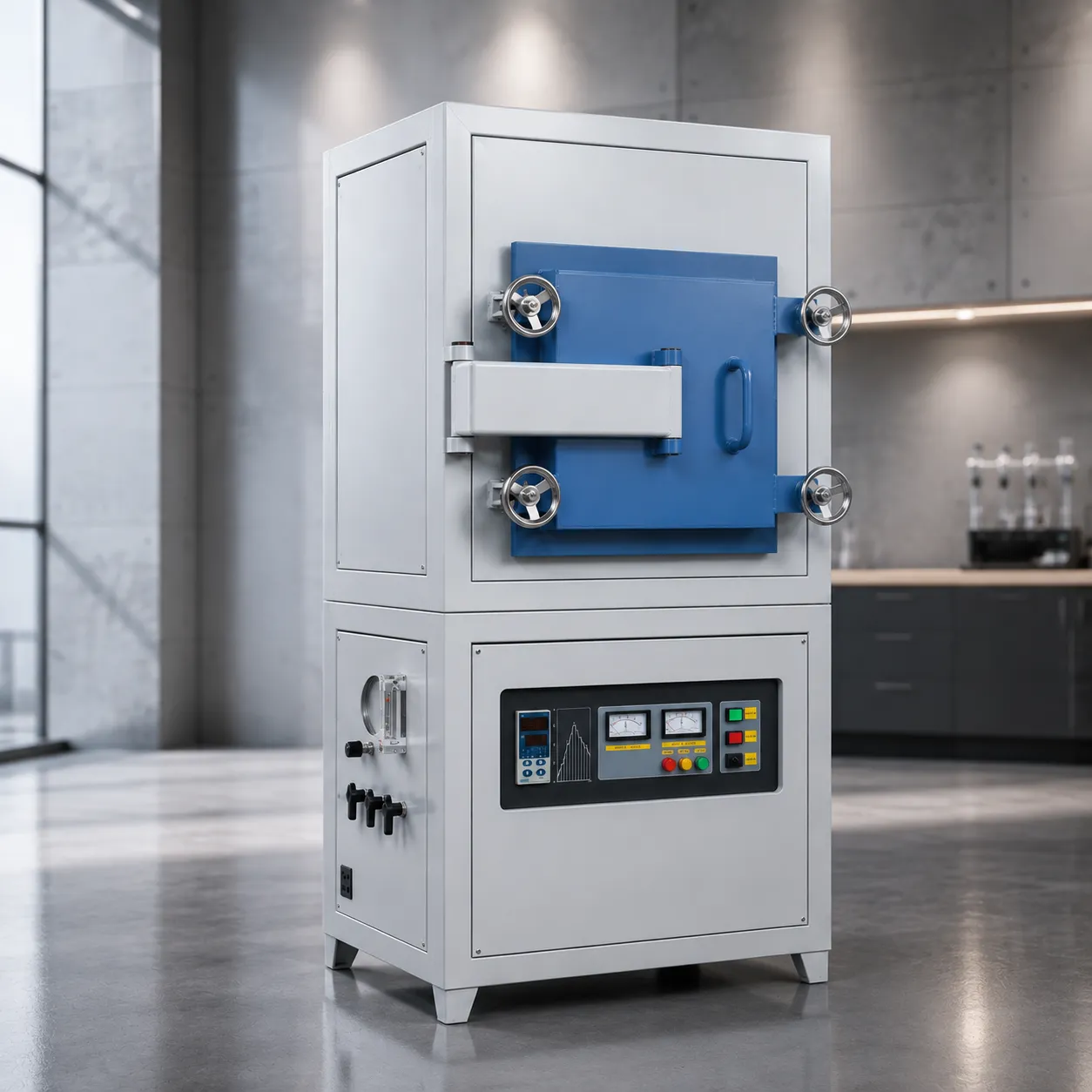

Integrated Gas Management & Vacuum Purging Architecture
Ultra-Clean Atmosphere and Oxygen Control
Integrated gas-scrubbing and vacuum displacement systems maintain residual oxygen levels below 10 ppm inside our oxygen control furnace, protecting sensitive metallic and ceramic workpieces from high-temperature oxidation, alloy decarburization, and surface discoloration.
- Automated vacuum pre-evacuation purging
- Real-time zirconia oxygen sensor monitoring
- Precise multi-gas mixing (N₂, Ar, H₂, Forming Gas)
Exceptional Thermal Uniformity (±3°C)
Multi-zone PID temperature controllers paired with low-thermal-mass insulation linings ensure precise atmosphere control and tight thermal distribution across the entire working chamber, eliminating hot spots and preventing batch-to-batch structural variance.
- Multi-zone independent loop control
- High-purity alumina fiber / ceramic linings
- Optimized heating element layout for balanced radiation
Automated Safety and Explosion-Proof Protection
Fully integrated PLC touchscreen systems featuring automated gas leak detection, over-temperature interlocks, flame arrestors, and emergency automatic safety relief valves guarantee operator safety during high-temperature hydrogen cycles.
- Automated N₂ purge upon pressure or power fault
- Combustible gas auto-igniting burn-off stack
- Multi-point gas leak sensors and alarm stack
Technical Deep Dive into Precise Atmosphere Control and Oxygen Minimization
Operating an industrial oxygen control furnace demands rigorous control over atmospheric displacement, thermal zone stability, and safety containment. When processing reactive metal powders, titanium alloys, or specialized ceramic substrates, even trace amounts of ambient oxygen lead to catastrophic material degradation and surface oxidation.
Haitem Furnace resolves these critical engineering challenges through a three-stage protective atmosphere framework that integrates preliminary vacuum evacuation, dynamic gas purging, and active positive-pressure regulation for complete process confidence.
Pre-Evacuation and Purging Mechanics
Traditional atmosphere furnaces rely on simple gas flushing, which consumes large quantities of expensive high-purity argon or nitrogen. In contrast to standard systems or high-vacuum vacuum furnaces, Haitem systems utilize pre-evacuation vacuum pumps to pull room air from internal fiber pores before backfilling with process gas.
- • Dramatically Reduced Purge Time: Reach operating purity levels in under 20 minutes.
- • Lower Gas Consumption: Cut inert gas usage by up to 40% per cycle.
- • Moisture Elimination: Removes trapped water vapor prior to thermal ramp-up.
Digital Mass Flow Regulation
Managing protective gas thermal processing requires precise atmosphere control and exact gas ratio management. Backed by our extensive manufacturing capabilities, our furnaces feature multi-channel Mass Flow Controllers (MFCs) connected directly to the central PLC, enabling automated switching between purging, processing, and rapid cooling gases.
- • Automated Gas Ratio Control: Set exact dynamic gas mixtures for specific alloys.
- • Digital Precision Flow: Control flow rates within ±1% full scale accuracy.
- • Recipe Management: Store multi-step thermal and gas profiling sequences.
Multi-Zone PID Thermal Distribution
Achieving structural uniformity across heavy batch loads requires precise thermal control. By dividing the heating chamber into independently regulated heating zones equipped with high-precision thermocouples, Haitem maintains thermal gradients within ±3°C.
- • Zero Batch Variance: Uniform sintering density across the entire chamber volume.
- • Low-Thermal-Mass Insulation: High energy efficiency and rapid heating rates.
- • Over-Temperature Interlocks: Independent hardware trip circuits protect workloads.
Performance Specification Matrix
Standard vs. Haitem High-Precision Controlled Atmosphere Systems
Key Features & Architecture of Our Multi-Gas Furnace
Haitem Furnace enforces rigorous standards backed by our quality certifications on sealed heating chamber and automated gas line design across our vacuum furnaces to ensure clean, contamination-free processing for high-purity thermal operations.

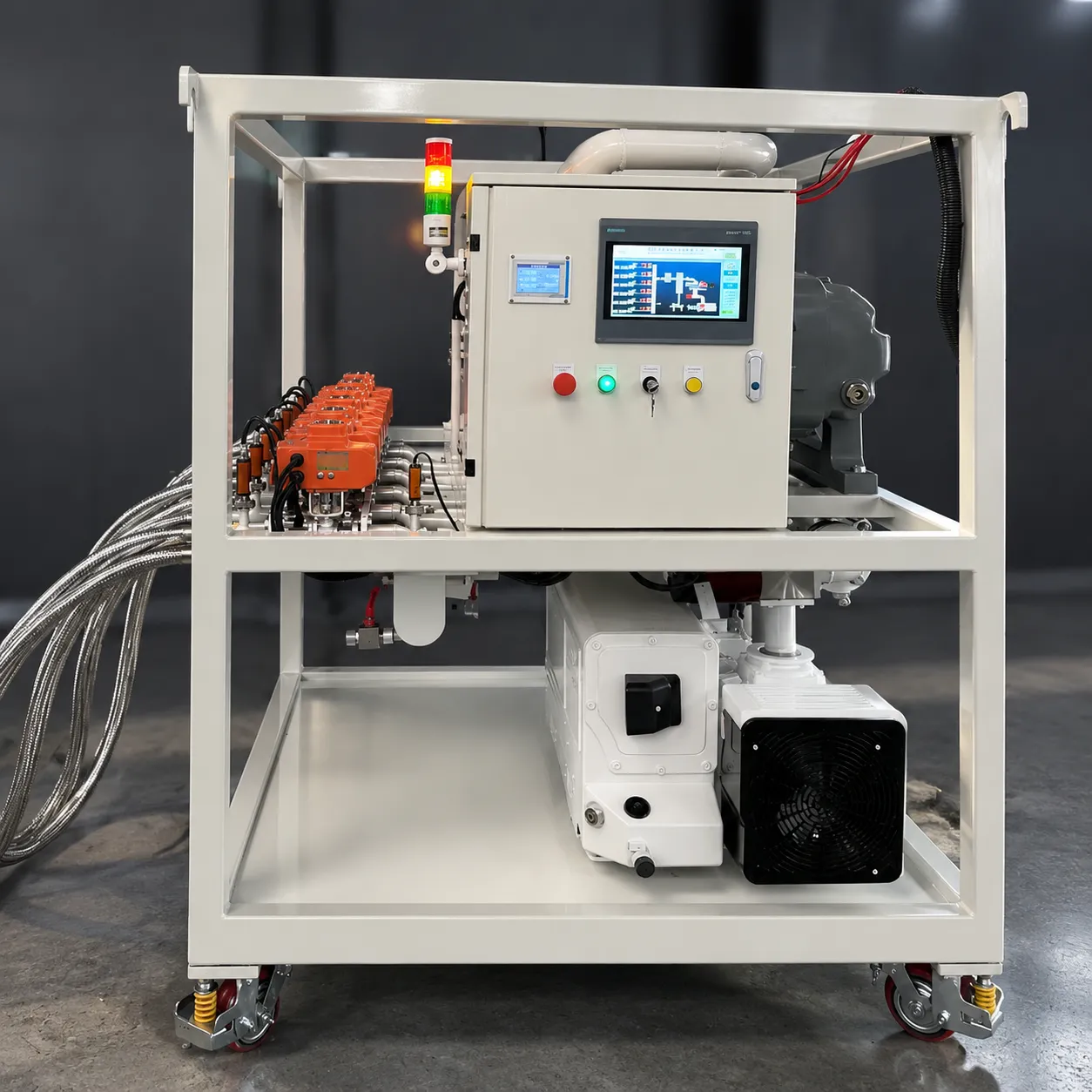

High-Vacuum Pre-Evacuation System
Evacuates ambient room air before backfilling with protective gas, drastically reducing purge gas consumption while eliminating trapped pockets of moisture and oxygen within the sealed heating chamber.
- Deep displacement purge prior to reactive or inert atmospheric delivery
- Ensures predictable, ultra-clean processing conditions for sensitive thermal cycles
Subsystem Specifications Comparison
Technical specifications supported by our advanced manufacturing capabilities for engineering evaluations and procurement verification.
| Subsystem Module | Primary Function | Core Engineering Benefit | Operational Impact |
|---|---|---|---|
| Pre-Evacuation System | Vacuum displacement purge | Eliminates oxygen and moisture pockets | Lower process gas consumption |

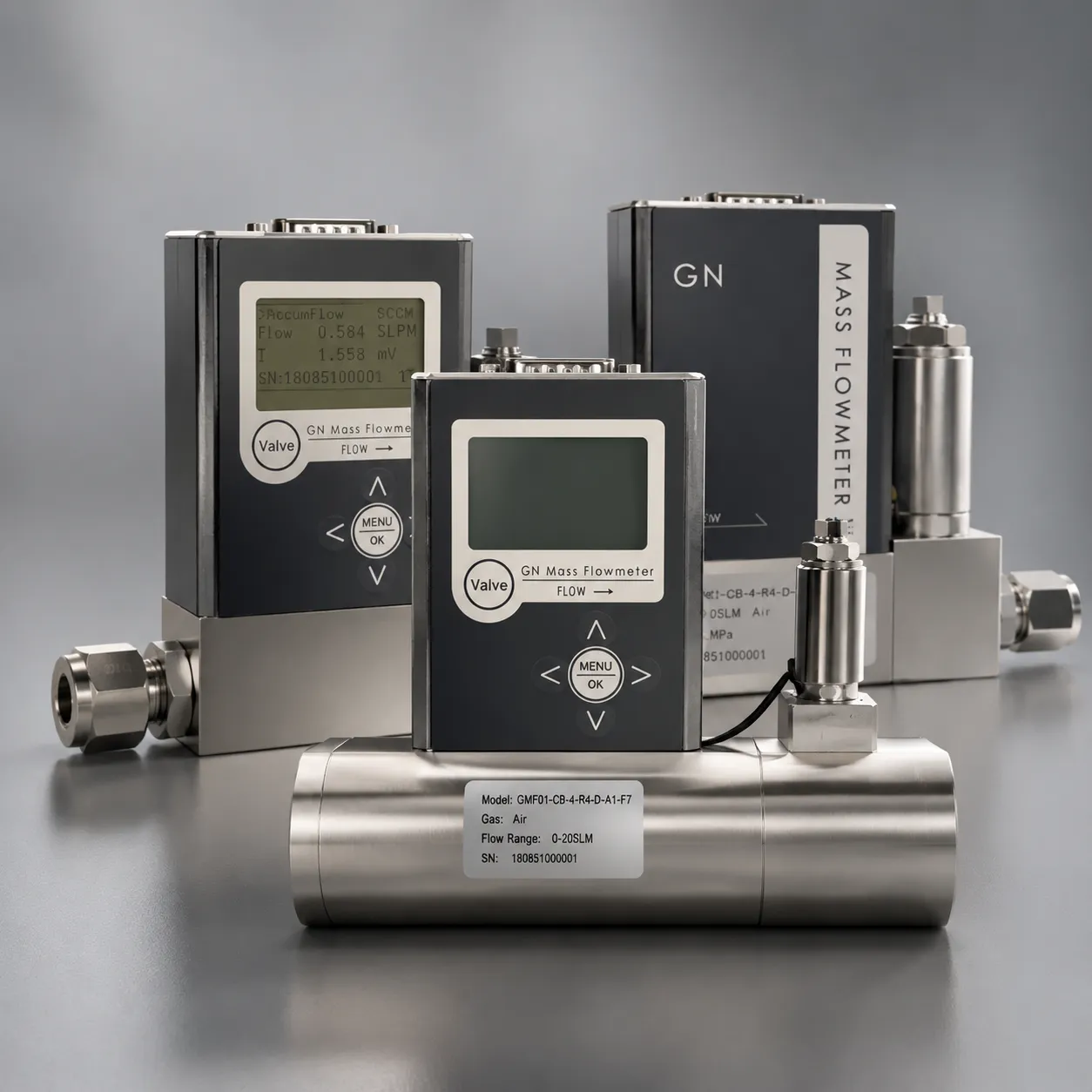

| Multi-Channel MFC | Dynamic mixing & atmospheric switching | Precise H₂, N₂, Ar ratio blending | Consistent multi-gas repeatability |

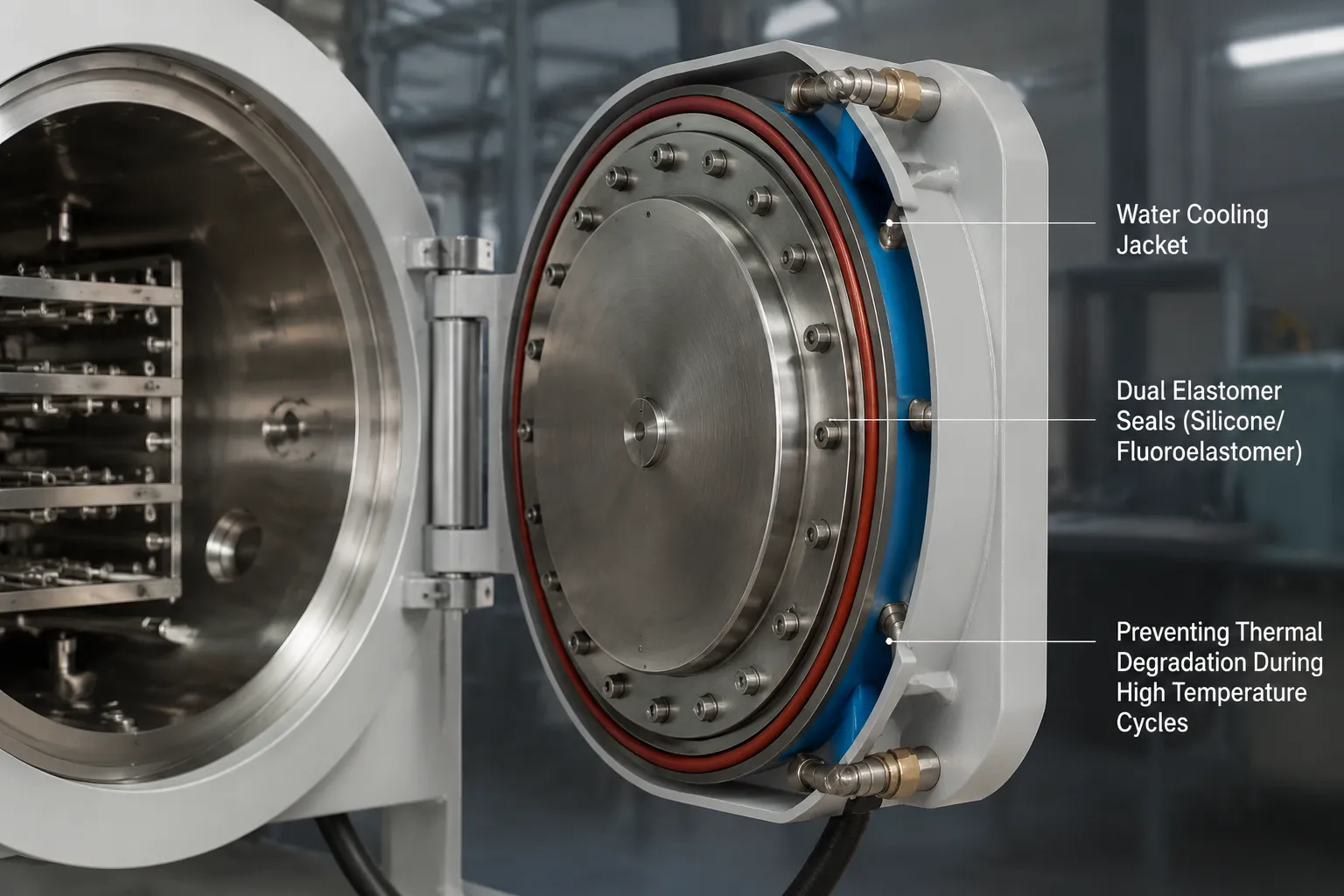

| Water-Cooled Door & Seals | Active cooling & dual O-ring isolation | Protects silicone and fluoroelastomer seals | Extended chamber seal longevity |

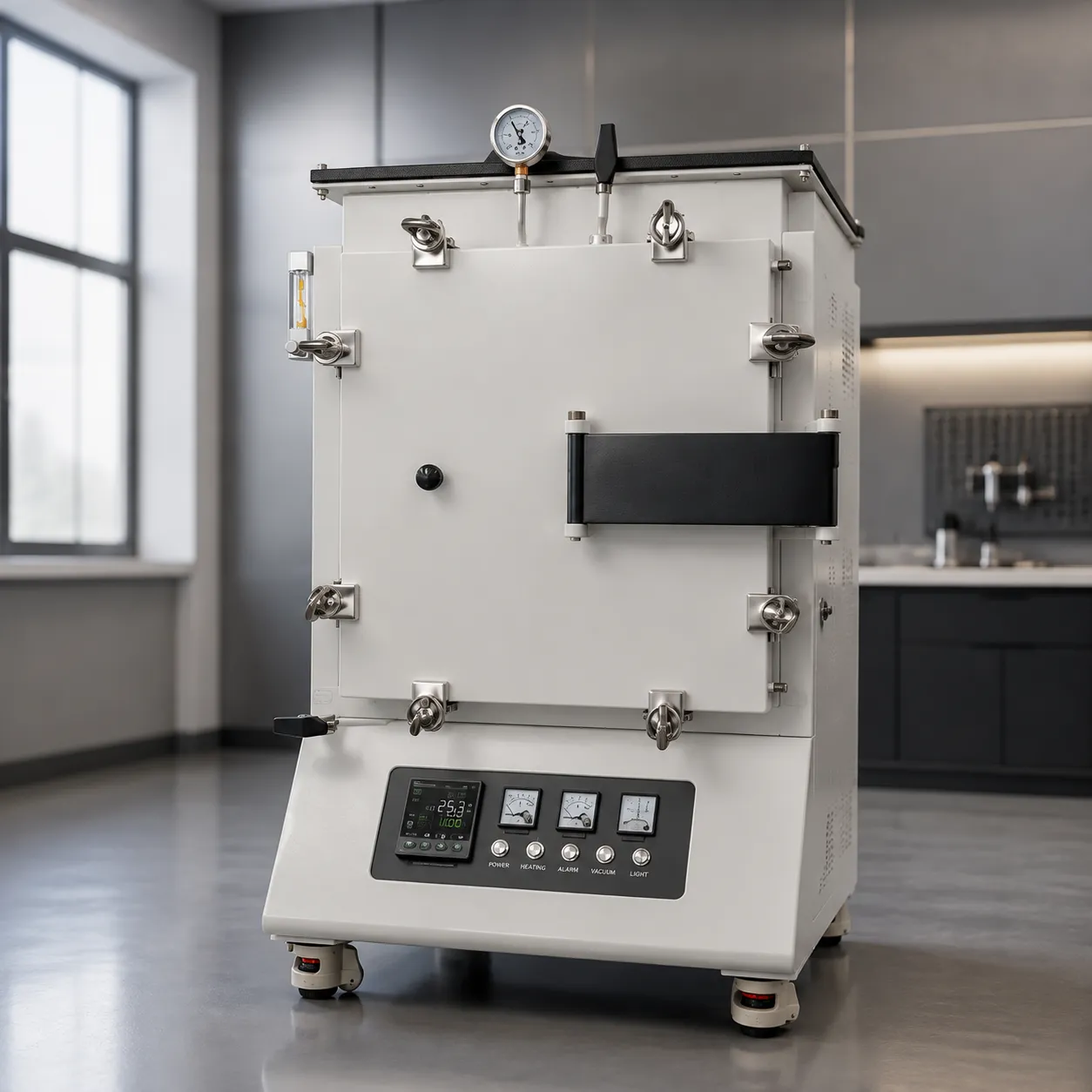

Controlled Atmosphere Furnace Specifications and Model Comparison
Selecting the optimal controlled atmosphere furnace requires matching process thermal profiles, chamber volumes, and atmosphere purity requirements directly with your metallurgical or advanced material specifications. Haitem Furnace manufactures high-repeatability thermal processing systems engineered for laboratory R&D, pilot-plant development, and high-volume industrial batch manufacturing. Review our complete atmosphere furnace specs below to evaluate heating cycle temperature capabilities, vacuum pre-evacuation efficiency, and multi-gas flow management tailored to your specific material engineering workflow.
| Specification Parameter | HT-ATM-L Series Laboratory R&D Scale | HT-ATM-P Series Pilot Scale & Small Batch | HT-ATM-B Series Industrial Batch Production |
|---|---|---|---|
| Chamber Dimensions (W x H x D mm) | 150 x 150 x 200 to 300 x 300 x 400 | 400 x 400 x 600 to 600 x 600 x 900 | 800 x 800 x 1200 to 1200 x 1200 x 1800 |
| Maximum Operating Temperature | 1200°C / 1400°C / 1700°C | 1200°C / 1400°C / 1650°C | 1100°C / 1400°C / 1600°C |
| Heating Cycle Temperature Ramp Rate | 1°C/min up to 20°C/min (Programmable) | 1°C/min up to 15°C/min (Multi-segment) | 1°C/min up to 10°C/min (Controlled) |
| Temperature Control Accuracy | ±1°C (Single-zone PID Controller) | ±1°C (Multi-zone PID Controller) | ±1°C (Independent Multi-zone PLC) |
| Working Zone Thermal Uniformity | ±3°C across working zone | ±4°C across working zone | ±5°C across extended hot zone |
| Compatible Process Atmospheres | N2, Ar, H2 (opt.), Forming Gas, Vacuum | N2, Ar, H2, Endothermic Gas, Dissociated NH3 | N2, Ar, H2, Forming Gas, Hydrocarbon blends |
| Ultimate Vacuum Pre-Evacuation | 10-1 Pa (Rotary) / 10-3 Pa (Turbo) | 10-1 Pa (Roots package option) | 10-1 Pa mechanical displacement |
| Residual Oxygen Control Level | < 10 ppm (With pre-vacuum purge) | < 10 ppm (Automated gas displacement) | < 15 ppm (Continuous flow monitoring) |
| Gas Flow Management & Mixing | 2-3 Channel Rotameters / MFCs | 3-4 Channel Automated MFC Manifold | Multi-Channel Automated PLC Cabinet |
| Safety & Interlock Standards | Over-temp cutoff, gas pressure switch | PLC safety chain, auto N2 purge valve | Full NFPA 86 Class D explosion-proof package |
Need Exact Model Specifications or a Custom Footprint?
Our thermal engineers provide complete technical drawings, utility hookup requirement sheets, and custom chamber sizing within 24 hours.
Optimizing Heating Cycle Temperature Profiles
Thermal processing repeatability relies heavily on precise management of the heating cycle temperature. Haitem atmosphere furnaces utilize ultra-pure ceramic fiber insulation combined with low-mass heating elements (SiC, MoSi2, or Kanthal APM wire) to achieve rapid response and uniform heat distribution.
- Multi-Segment Programming: Store up to 50 programmable ramp, soak, and cooling thermal profiles.
- Multi-Zone Control: Eliminate thermal gradients across large workloads using independent PID control loops.
- Over-Temperature Safeguards: Integrated redundant thermocouples prevent thermal overshoot during critical soak phases.
Controlled Atmosphere Purity & Vacuum Displacement
Evaluating technical atmosphere furnace specs requires assessing gas displacement efficiency and chamber integrity. Rather than relying solely on continuous high-volume gas flushing, Haitem furnaces integrate pre-evacuation vacuum purging to guarantee clean atmospheres.
- Ultralow Residual Oxygen: Rapidly reduce O2 levels to under 10 ppm prior to protective gas introduction.
- Gas Consumption Savings: Reduce argon and nitrogen usage by up to 60% compared to standard flow purging.
- Multi-Gas Delivery: Seamless dynamic switching between inert gases (N2, Ar) and active reducing gases (H2).
Custom Structural Engineering & Explosion Safety
Standard catalog configurations do not always meet specialized industrial production requirements. Haitem Furnace provides complete custom structural and control engineering across all equipment classes, leveraging our advanced manufacturing capabilities to support complex material synthesis.
- Continuous Conveyor Systems: Custom mesh belt, pusher, and rotary tube furnace configurations for continuous sintering.
- Hydrogen Safety Engineering: Exhaust burn-off stacks, flame arrestors, and automated nitrogen purge fail-safes.
- Heavy Workload Handling: Reinforced hearths and automated charging systems designed for dense production loads.
Custom Furnace Design and Thermal Process Consultation
Whether your thermal process calls for explosion-proof ratings for 100% pure hydrogen operations, multi-zone dew point tracking, or continuous mesh belt integration, Haitem Furnace tailors chamber dimensions, heating elements, and gas management systems to your exact operational standards.
Our controlled atmosphere systems integrate vacuum pre-evacuation, multi-channel mass flow control (MFC) gas mixing, and automated dew point regulation. By maintaining residual oxygen levels below 5 ppm and ultra-low dew points down to -65°C, our specialized vacuum furnaces and protective gas systems ensure reproducible metallurgical properties across continuous and batch production lines.
Key Process Suitability
- • Powder Metallurgy Heating: High-density bright sintering and clean binder burn-off under pure H2, N2, or forming gas.
- • MIM Sintering Furnace: Multi-zone thermal profile and dew point control for stainless, tool steel, and titanium.
- • Inert Gas Heat Treatment: Automated dynamic gas switching between argon, nitrogen, and reducing atmospheres.
Advanced Furnace Solutions
Powder Metallurgy & MIM Sintering
Solvent debinding and high-temperature bright sintering designed for stainless steel, titanium, and high-alloy metal injection molded components requiring zero carbon contamination.
- Atmosphere: Pure H2, N2, or Forming Gas Mix
- Peak Temp: Up to 1400°C (2552°F)
- Benefit: High density, zero oxidation & pristine surface purity
Advanced Furnace Solutions
Advanced & Technical Ceramics
Ultra-high temperature sintering of silicon nitrides, aluminum nitrides, carbides, and electro-ceramics under tightly regulated non-oxidizing or inert gas atmospheres.
- Atmosphere: High-Purity Nitrogen or Argon (99.999%)
- Peak Temp: Up to 1700°C (3092°F)
- Benefit: Maximum density, fracture toughness & dielectric stability
Advanced Furnace Solutions
Semiconductor & Microelectronics
Cleanroom-compatible inert gas wafer annealing, glass-to-metal hermetic sealing, and electronic substrate curing under ultra-pure continuous nitrogen flow.
- Atmosphere: Ultra-Pure N2 / Ar (99.999% purity)
- Control: Residual Oxygen < 5 ppm & Low Dew Point
- Benefit: Hermetic bond integrity & ultra-low wafer defect rates
Advanced Furnace Solutions
Precision Metallurgy Heat Treatment
Bright annealing, stress relieving, solution treating, and hardening of aerospace superalloys, tool steels, and critical medical components without surface scaling.
- Atmosphere: Dissociated Ammonia, H2, or N2/Ar
- Uniformity: ±3°C PID Multi-Zone Thermal Stability
- Benefit: Scale-free, bright metallic finish with zero decarburization
Industrial Atmosphere & Process Matching Matrix
Compare recommended protective gas chemistry, thermal operating ranges, maximum allowable dew points, and furnace chamber architectures by industrial sector.
| Industry Sector | Target Materials | Primary Gas Chemistry | Max Dew Point | Furnace Architecture |
|---|---|---|---|---|
| Powder Metallurgy & MIM | 316L, 17-4PH, Titanium, Tool Steels | H2 / N2 Mix (75/25%) | -50°C | Batch Retort or Pusher Continuous with Thermal Debinding |
| Advanced Ceramics | Si3N4, AlN, SiC, Al2O3, Zirconia | High-Purity Ar / N2 | -60°C | Graphite or Tungsten Heated High-Temp Sealed Chamber |
| Semiconductor & Microelectronics | Silicon Wafers, Kovar, Glass Substrates, GaAs | Ultra-Pure N2 (99.999%) | -65°C | Quartz Tube or Cleanroom Sealed Muffle Retort |
| Precision Heat Treatment | Inconel, Hastelloy, Tool Steels, Stainless Dies | Forming Gas / Pure Ar | -45°C | Multi-Zone PID Pit or Horizontal Controlled Retort |
Trusted Global Thermal Engineering by Haitem Furnace
Haitem Furnace systems are backed by our dedicated global-service network, widely deployed in powder metallurgy plants, semiconductor facilities, and research institutes across North America, Europe, and Asia. Every unit is custom-engineered with multi-stage explosion-proof safety interlocks, automated gas management, and full compliance with international standards.
Atmosphere Furnace Operation & Technical Guidance
Explore expert technical insights on atmosphere furnace operation, gas purging process optimization, explosion-proof safety engineering, and custom gas manifold design engineered by Haitem Furnace.
Safety Engineering & Gas Protocols
Controlled atmosphere thermal processing requires multi-stage explosion-proof safety protocols, automated inert gas purging, and flame arrestors to eliminate combustible hazards during flammable gas operation.
- Flammable Gas Handling: Automated N₂ displacement
- Explosion Safety: Integrated overpressure relief
Atmosphere Purity & Oxygen Control
Maintaining residual oxygen levels below 10 ppm requires high-vacuum chamber sealing, water-cooled door flanges, and continuous protective gas displacement throughout the entire heating cycle.
- Oxygen Residual: Maintained below 10 ppm
- Chamber Integrity: Dual fluoroelastomer seals
Thermal Precision & Uniformity
Multi-zone PID temperature controllers combined with strategically positioned heating elements maintain tight temperature distribution and minimal thermal lag across high-density workload charges.
- Temperature Accuracy: Control precision within ±1°C
- Uniformity Target: Work zone uniformity ±3°C
Q1 Hydrogen and Flammable Gas Safety Engineering
Hydrogen and Flammable Gas Safety Engineering
Haitem controlled atmosphere furnaces safely operate with pure hydrogen (H₂), forming gas, and other combustible gas mixtures. Every unit integrates multi-stage explosion-proof safety engineering compliant with stringent international thermal processing standards.
Combustible Gas Safety Features
- • Automated Nitrogen Purging: Pre-purges the heating chamber with inert nitrogen prior to introducing hydrogen gas.
- • Emergency Fail-Safe Interlocks: Triggers an automatic inert gas flood upon power loss, pressure drops, or sensor alerts.
- • Exhaust Flame Arrestors: Eliminates backfire hazards during continuous gas burn-off procedures.
- • Safety Relief Valves: Delivers instantaneous pressure release during abnormal overpressure events.
Integrated PLC safety systems continuously verify gas sensor inputs, cooling water pressure, and chamber seal integrity before energizing hydrogen solenoid manifolds.
Q2 Vacuum Pre-Evacuation Benefits and Purging Efficiency
Vacuum Pre-Evacuation Benefits and Purging Efficiency
In thermal processing applications and specialized vacuum furnaces, pre-evacuation is recommended because standard positive-pressure purging leaves trapped atmospheric air and oxygen pockets inside porous insulation materials and complex part geometries.
Requires 5 to 7 total chamber volume exchanges. Consumes large volumes of expensive protective gas while residual oxygen levels remain elevated around 50 to 100 ppm.
Evacuates the chamber to 10⁻² Torr prior to protective gas backfilling. Reduces total gas consumption by up to 70% and achieves ultralow oxygen levels below 10 ppm.
Optimizing the gas purging process saves substantial operating expenses, accelerates setup cycle times, and prevents high-temperature oxidation on sensitive metal alloys.
Q3 Thermal Consistency and Multi-Zone Temperature Control
Thermal Consistency and Multi-Zone Temperature Control
Haitem Furnace guarantees precise temperature distribution within ±3°C across the entire effective work zone by pairing advanced thermal field modeling with multi-zone heating configurations.
- Independent PID Loops: Multiple heating zones automatically compensate for door end-losses and internal thermal gradient shifts.
- Low-Thermal-Mass Insulation: High-purity ceramic fiber or graphite felt linings enable rapid heating cycles and minimal thermal lag.
- Strategic Thermocouple Placement: Precision thermocouples positioned directly near workpieces provide real-time feedback to central PID controllers.
High thermal uniformity eliminates batch-to-batch variance in powder metallurgy sintering, metal injection molding (MIM), and aerospace alloy heat treatment.
Q4 Custom Gas Manifold Architecture and Recipe Automation
Custom Gas Manifold Architecture and Recipe Automation
Haitem Furnace delivers custom gas distribution manifolds engineered for complex, multi-step thermal processing cycles. Leveraging our advanced manufacturing capabilities and engineering expertise, our team designs gas systems capable of handling exact gas mixing ratios and dynamic atmosphere transitions.
Digital mass flow controllers ensure accurate automated gas mixing for nitrogen, argon, and hydrogen.
Optional wet and dry gas bypass towers allow precise dew point adjustments during sintering processes.
PLC-controlled transitions shift seamlessly from solvent debinding gas to inert protective atmospheres.
Q5 Atmosphere Purity Control and Dew Point Management
Atmosphere Purity Control and Dew Point Management
Strict moisture control is essential during bright annealing, brazing, and high-purity thermal processing cycles. Haitem atmosphere furnaces routinely achieve dew points down to -60°C by completely sealing out ambient humidity infiltration.
Heavy-duty water cooling jackets shield dual fluoroelastomer seals from thermal degradation, maintaining an airtight environment throughout continuous high-temperature heating cycles during regular atmosphere furnace operation.
Q6 Preventive Maintenance and Vacuum Seal Integrity
Preventive Maintenance and Vacuum Seal Integrity
To maintain maximum gas purity and long-term mechanical reliability, routine thermal processing preventive maintenance focuses on seal inspection, gas line filtration, and sensor calibration.
- Inspect silicone and fluoroelastomer chamber seals for debris or thermal wear prior to running critical production loads.
- Verify cooling water jacket flow rates and temperatures to maintain flange thermal protection during extended operation.
- Perform periodic helium leak testing on gas manifold connections to prevent purity degradation and air ingress.
