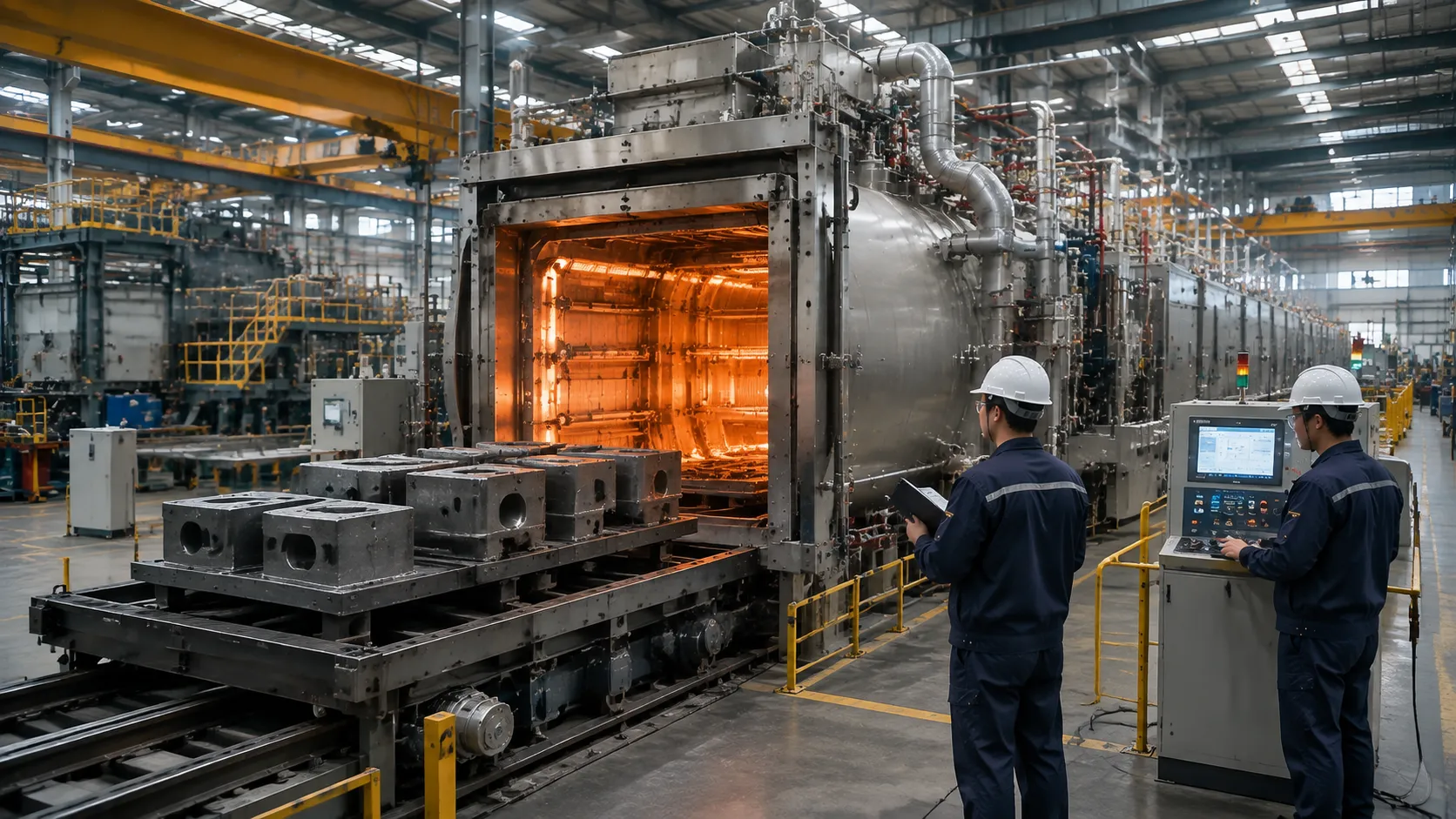

Why Leading Manufacturers Partner with Haitem Furnace for Custom Equipment
Haitem Furnace integrates advanced custom design capabilities with precision OEM vacuum furnaces to deliver thermal equipment built for extreme operational demands, uniform heating performance, and turnkey automated production.
Proprietary Engineering Design
Precision 3D CAD and CAE modeling tailored to your exact process temperatures, high vacuum requirements, and chamber volume specifications.
- Custom chamber geometries optimized for high vacuum and specialized workload configurations.
- Advanced CFD thermal simulations preventing localized hot spots and structural degradation.
- Finite Element Analysis (FEA) validating mechanical integrity during high-temperature cycles.
Advanced Atmosphere & Thermal Control
Multi-zone independent temperature regulation coupled with automated gas dosing for optimal atmosphere purity and thermal accuracy.
- Multi-zone PID heating control ensuring precise ±1°C temperature uniformity across work zones.
- Automated mass flow controllers for argon, nitrogen, hydrogen, and reactive gas mixtures.
- Continuous oxygen sensor and dew-point monitoring to maintain process gas integrity.
Seamless Factory & Line Integration
Turnkey electrical and mechanical engineering designed for effortless interfacing with plant PLCs, MES networks, and automated handling.
- Direct fieldbus interface compatibility with Siemens, Allen-Bradley, and Schneider PLC systems.
- Real-time thermal telemetry data logging integrated with enterprise SCADA and MES platforms.
- Customized mechanical interfaces for robotic arm loading and continuous conveyor systems.
Rigorous FAT & SAT Quality Standards
Full factory pre-shipment thermal testing and process simulation ensuring compliance with your strict quality benchmarks before installation.
- Full Factory Acceptance Testing (FAT) validating heating cycles and vacuum hold times prior to dispatch.
- On-site Site Acceptance Testing (SAT) and engineer-led commissioning for rapid ramp-up.
- Built to satisfy stringent aerospace AMS 2750 specifications, international quality certifications, and global industrial standards.
Engineered for Demanding Heavy-Duty Industrial Operations
Every Haitem custom furnace undergoes complete structural, electrical, and thermal validation. Backed by our advanced manufacturing capabilities, we help high-capacity manufacturers maintain strict metallurgical consistency while lowering long-term operating costs.
Explore Custom Solutions Capabilities
Discover how our OEM furnace manufacturing expertise applies to your thermal processing environment.
Engineering Translation: Bridging Thermal Requirements to Precision Furnace Architecture
Translating complex industrial thermal processes into highly reliable, bespoke furnace equipment requires deep technical consultation from day one. At Haitem Furnace, our engineering design team specializes in bridging the gap between customer process specifications and robust equipment blueprints. By leveraging advanced multi-physics finite element analysis (FEA), 3D CAD structural modeling, and tailored atmospheric control logic, we convert exact heating profiles, vacuum levels, and gas purging cycles into durable, production-ready thermal hardware. Learn more about-us and our dedication to specialized engineering.
FEA & CAD Virtual Prototyping
Every custom furnace design undergoes rigorous thermodynamic and fluid dynamic simulation prior to manufacturing, eliminating structural bottlenecks and hot-spot risks.
By modeling thermal expansion, gas velocity, and heating element power density in a virtual environment, Haitem Furnace minimizes capital risk and accelerates factory acceptance testing.
Upstream Engineering Consultation for Custom Furnace Projects
Standard off-the-shelf industrial furnaces often fall short when processing advanced synthetic materials, executing powder metallurgy debinding, or operating under ultra-high vacuum conditions. OEM procurement leaders and plant engineers partner with Haitem Furnace to define precise thermal parameters and structural blueprints long before capital equipment deployment, including specialized vacuum-furnaces.
Process Requirement Audit & Parameter Mapping
We analyze client target temperature ramp rates, maximum soaking durations, vacuum leak rate allowances, and multi-gas purging sequences to establish precise architectural parameters.
3D CAD Modeling & FEA Thermal Simulation
Utilizing high-performance 3D CAD modeling and Finite Element Analysis (FEA), our design engineers simulate heat distribution, mechanical stress points, and atmosphere velocity before cutting steel.
Custom Component Specification & Atmospheric Logic
We align process chemistry with ideal heating elements (Graphite, Molybdenum, SiC, or Kanthal) and design custom multi-gas manifold logic tailored for protective or reactive environments.
Comprehensive Design & Engineering Capabilities
Our technical consulting services encompass all key engineering disciplines required to transform specialized metallurgical specs into durable, production-ready furnace systems.
3D CAD Modeling & FEA Simulation
Detailed structural layout and thermal dynamic optimization. We evaluate structural expansion, load capacities, and heat distribution under extreme thermal cycles.
- Thermal Stress Analysis: Prevents hot-zone distortion and shell fatigue
- CFD Dynamic Modeling: Optimizes protective gas circulation velocity
Custom Heating Element Specification
Selecting and sizing heating elements engineered for maximum operational temperature, heating rate, and specific furnace atmosphere compositions.
- High-Temp Metal Alloys: Kanthal APM, Silicon Carbide (SiC), Molybdenum
- Ultra-High Temperature: High-purity Graphite heating elements & hearths
Advanced Refractory Insulation Design
Engineering multi-layer insulation systems utilizing vacuum-formed alumina ceramic fiber, high-density boards, or rigid graphite felt to minimize energy loss.
- Low Thermal Mass: Accelerates rapid heating and cooling cycles
- Energy Conservation: Reduces heat dissipation losses by up to 30%
Tailored Electrical & Control Architecture
Custom electrical schematics, multi-zone PID temperature loop programming, and intuitive touchscreen HMI interfaces for fully automated thermal cycles.
- Multi-Zone Control: Independent SCR power regulation for tight uniformity
- Data Logging & Audit: Fully compliant with AMS 2750 and CQI-9 specifications
Multi-Gas Atmosphere Control Logic
Designing safe, automated mass-flow gas delivery manifolds for Hydrogen (H₂), Nitrogen (N₂), Argon (Ar), and specialized reactive process gas blends.
- Automated Safety Interlocks: Integrated sensors for automatic purge sequences
- Dew Point Management: Ensures high-purity atmosphere conditions throughout
Turnkey Technical Documentation
Complete engineering deliverables including 2D floorplan layouts, 3D assembly models, electrical schematics, full BOMs, and comprehensive O&M manuals.
- Global Standards: Designed in full compliance with CE, UL, and NFPA guidelines
- Lifecycle Traceability: Standardized component coding for fast spare parts ordering
Technical Matrix: Thermal Parameters & Architectural Specs
How our technical consulting maps client thermal process requirements to specialized equipment architecture.
| Process Temperature Range | Atmosphere / Vacuum Environment | Recommended Heating Elements | Insulation System | Target Applications |
|---|---|---|---|---|
| Up to 1200°C (2192°F) | Air, Inert Gas, Nitrogen, Hydrogen | Kanthal APM / Resistance Wire | Alumina Ceramic Fiber Board & Blankets | Steel Heat Treatment, Annealing, Stress Relieving |
| 1200°C to 1600°C (2912°F) | Controlled Inert Gas, Medium Vacuum | Silicon Carbide (SiC) Elements | High-Purity Alumina Board | Technical Ceramics Sintering, Powder Metallurgy |
| 1600°C to 2400°C+ (4352°F+) | High Vacuum (10⁻⁵ mbar), Argon, Helium | Graphite Rod / Molybdenum Elements | Rigid Graphite Felt / Molybdenum Heat Shields | MIM Sintering, SiC Crystal Growth, Aerospace Alloys |
Ready for a Deep Technical Consultation on Furnace Design Engineering?
Review complete engineering blueprints, examine FEA thermal simulation case studies, or schedule a 1-on-1 engineering consultation with Haitem Furnace thermal equipment specialists.
Seamless System Integration Connecting Custom Furnaces to Automated Production Lines
Haitem Furnace delivers complete physical, electrical, and digital turnkey integration for custom industrial thermal equipment. We bridge non-standard furnace engineering with existing automated production lines to maximize operational throughput, eliminate workflow bottlenecks, and ensure uninterrupted data synchronization across enterprise networks.
Turnkey Physical and Digital Connectivity for Smart Manufacturing
Integrating high-temperature or high-vacuum vacuum furnaces into continuous automated production lines requires specialized engineering. Haitem Furnace ensures your custom thermal processing equipment interfaces seamlessly with existing plant infrastructures, material handling robotics, and centralized supervisory control systems.
Our multidisciplinary engineering teams leverage robust manufacturing capabilities to conduct comprehensive site audits prior to production. We evaluate power and gas utility hookups, floor load capacity limits, exhaust ventilation requirements, and fieldbus protocols to build a custom furnace system that integrates perfectly into your active factory layout.
Four Core Dimensions of System Integration
We systematically address every physical, thermal, and digital engineering detail to achieve maximum operating reliability, plant safety, and energy efficiency.
PLC & SCADA Communication Matching
We design flexible digital communication architectures that map directly to your plant control network. Our integrated control software enables automated recipe downloading, real-time diagnostic logging, and centralized process monitoring.
- Industrial Protocols: Native integration with Profinet, Modbus TCP/RTU, EtherNet/IP, and OPC UA.
- MES & ERP Interfacing: Automated batch logging, thermal profile archiving, and product quality tracking.
- Safety Interlocks: Hardware and software emergency fail-safes linked directly to master plant safety loops.
Integrated Waste Heat Recovery
Maximize facility energy efficiency by capturing high-temperature exhaust heat and redirecting thermal energy into secondary plant processes, building HVAC loops, or burner combustion air preheating.
- Combustion Air Preheating: Reduces burner fuel intake and lowers ongoing operational energy expenses.
- Heat Exchanger Modules: High-efficiency gas-to-gas and gas-to-liquid exchangers built for high thermal loads.
- Carbon Reduction: Supports facility sustainability and decarbonization goals by reducing energy intensity.
Automated Exhaust & Filtration Interfaces
Protect plant air quality and maintain atmospheric compliance through automated draft control, continuous differential pressure monitoring, and integrated particulate or VOC abatement systems.
- Chamber Draft Control: Variable-speed draft fans maintain exact positive or negative furnace pressure.
- Binder Trapping & Oxidizers: Thermal oxidizers and condensers tailored for debinding and sintering applications.
- Regulatory Compliance: Automated exhaust monitoring ensures full compliance with local environmental standards.
Floor Space & Load Capacity Optimization
Every custom furnace structural frame is engineered around your physical plant constraints, taking into account foundation load capacity ratings, overhead clearance, and robotic handling envelopes.
- Structural Weight Distribution: Custom FEA-validated support structures align with factory floor slab ratings.
- Compact Equipment Footprint: Cabinet-integrated control systems and compact utility manifolds save floor space.
- Robotic Automation Interfacing: Precision alignment tracks and automated doors match AGVs and robotic cells.
Integration Technical Specifications & Standards
| Integration Dimension | Supported Standards & Protocols | Engineering Specification | Operational Value |
|---|---|---|---|
| Automation Protocols | Profinet, Modbus TCP/RTU, EtherNet/IP, OPC UA | Pre-programmed PLC function blocks & SCADA driver modules | Instant plant network connectivity with sub-millisecond control latency |
| Heat Recovery | Counter-flow heat exchangers, combustion air preheaters | Custom thermodynamic modeling & heavy-duty insulated ductwork | Reduces overall thermal energy consumption by up to 30% |
| Effluent & Filtration | Thermal oxidizers, wet scrubbers, dynamic draft dampers | Automated pressure balancing & emergency gas purge actuation | Guarantees strict environmental compliance and clean plant air |
| Facility Layout | 3D BIM layout models, structural FEA load mapping | Modular chassis design with distributed floor load pads | Fits into existing plant floors without costly civil construction |
Turnkey System Integration Workflow
Haitem Furnace implements a structured four-phase engineering methodology to guarantee rapid, risk-free plant deployment.
Facility & Network Audit
Detailed evaluation of floor space, power capacity, exhaust ductwork, and existing PLC network architecture.
Collaborative Engineering
Developing 3D physical layout models, electrical single-line diagrams, and SCADA control register mapping.
Pre-Commissioning FAT
Factory Acceptance Testing with simulated I/O communications, thermal ramp-up, and safety interlock verifications.
On-Site SAT & Line Commissioning
Physical positioning, utility tie-ins, Site Acceptance Testing (SAT), automated line handshake setup, and operator training.
Connect Your Custom Furnace to Modern Automated Workflows
Partner with Haitem Furnace thermal engineers to assess your facility layout, digital protocol requirements, and material handling automation goals. Discover complete integration frameworks on our Process Integration detail page.
Transparent Project-Based Engineering: Our 6-Step Customization Workflow

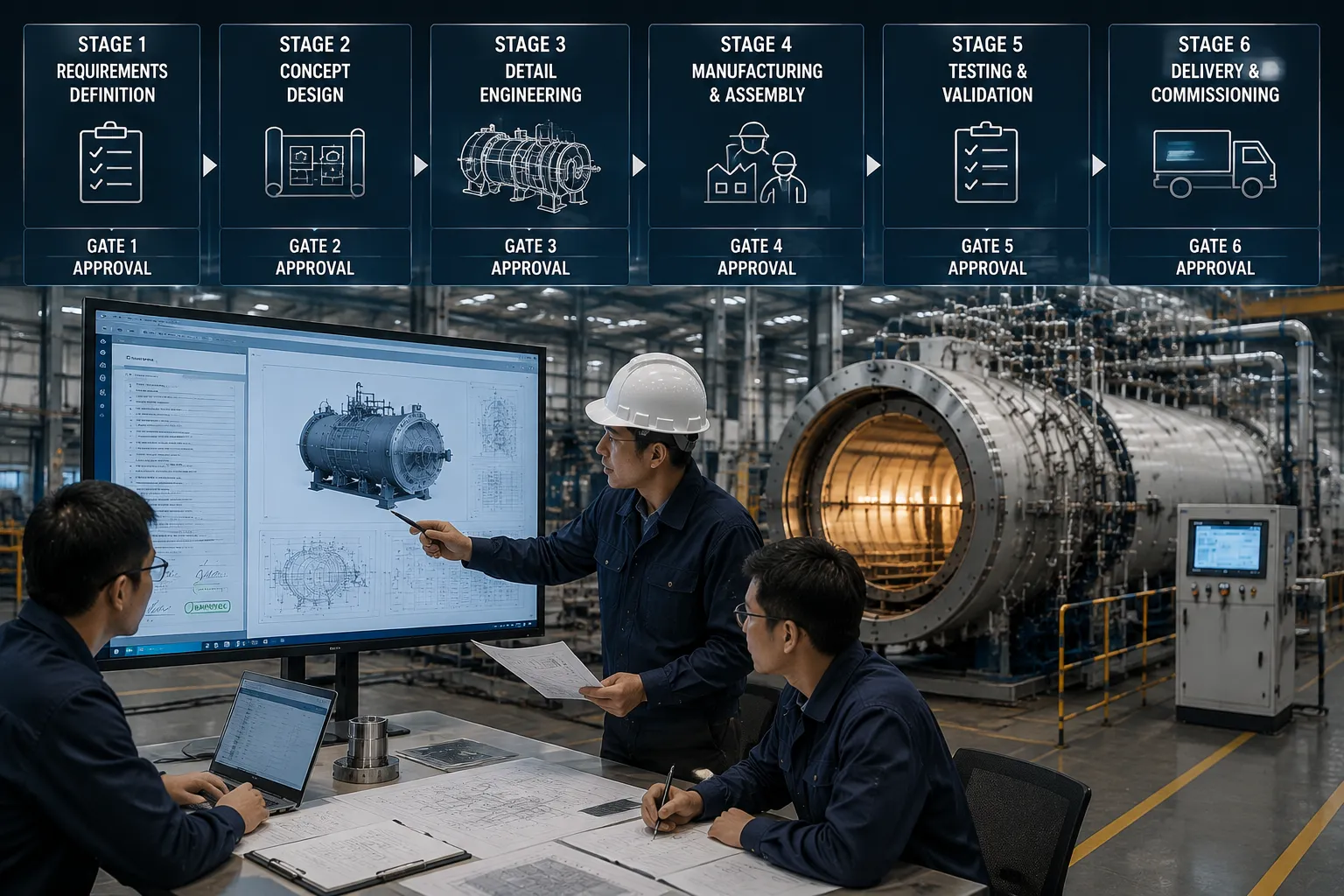

Haitem Furnace executes custom engineering projects through a disciplined, stage-gate manufacturing model. Learn more about us and our commitment to full project transparency, risk control, and verified equipment performance from initial thermal analysis to final commissioning.
Requirement Analysis
Detailed evaluation of thermal processing curves, atmosphere purity standards, chamber sizing, and plant utility requirements.
Design & Simulation
Advanced 3D CAD modeling, CAE thermal flow simulations, heating element selection, and structural verification.
Commercial Sign-Off
ization of technical specifications, component bill of materials, milestone scheduling, and fixed-scope sign-off.
Precision Manufacturing
Precision frame fabrication, vacuum furnaces chamber machining, refractories lining, heating element installation, and control wiring.
Factory Acceptance Testing
Full-scale factory trials, multi-zone Temperature Uniformity Surveys (TUS), vacuum leak testing, and safety validation.
Site SAT & Commissioning
On-site positioning, utility hookup, Site Acceptance Testing (SAT), automated system integration, and team training.
Stage-Gate Quality Assurance for Complex Thermal Processing Equipment
Every phase in Haitem Furnace's custom engineering process requires formal documentation sign-off before proceeding to manufacturing. Backed by our specialized manufacturing capabilities, this strict project governance prevents budget creep, satisfies rigorous industry benchmarks, and ensures seamless turnkey deployment.
Custom Application Matrix: Proven Thermal Solutions Across Advanced Sectors
Standard off-the-shelf industrial furnaces often force compromises in cycle efficiency, atmospheric purity, and temperature uniformity. At Haitem Furnace, we engineer tailored thermal equipment built around your precise material chemistry and production throughput requirements. Our custom thermal processing solutions bridge complex metallurgical demands with robust, repeatable OEM furnace manufacturing.
Below is our comprehensive application matrix demonstrating how our custom furnace engineering overcomes technical friction points across four demanding high-tech manufacturing sectors.
Powder Metallurgy & Metal Injection Molding (MIM)
Metal Injection Molding (MIM) and sintered powder components require strict atmosphere management during thermal debinding to remove polymer binders completely without carbon contamination, part distortion, or structural slump. Explore our industry-leading vacuum furnaces engineered specifically for ultra-clean debinding and sintering cycles.
Customization Breakthroughs
- ✓ High-Vacuum Thermal Debinding: Integrated solvent condensation traps and automated vacuum purge cycles ensure clean binder removal and eliminate re-condensation risks.
- ✓ Continuous Multi-Zone Profiling: Multi-stage continuous thermal zones with independent temperature regulation for debinding, pre-sintering, and high-temperature sintering.
- ✓ Precision Dew Point Control: Automated H₂/N₂ atmosphere gas mixing with inline moisture monitoring maintaining dry furnace conditions down to -60°C.

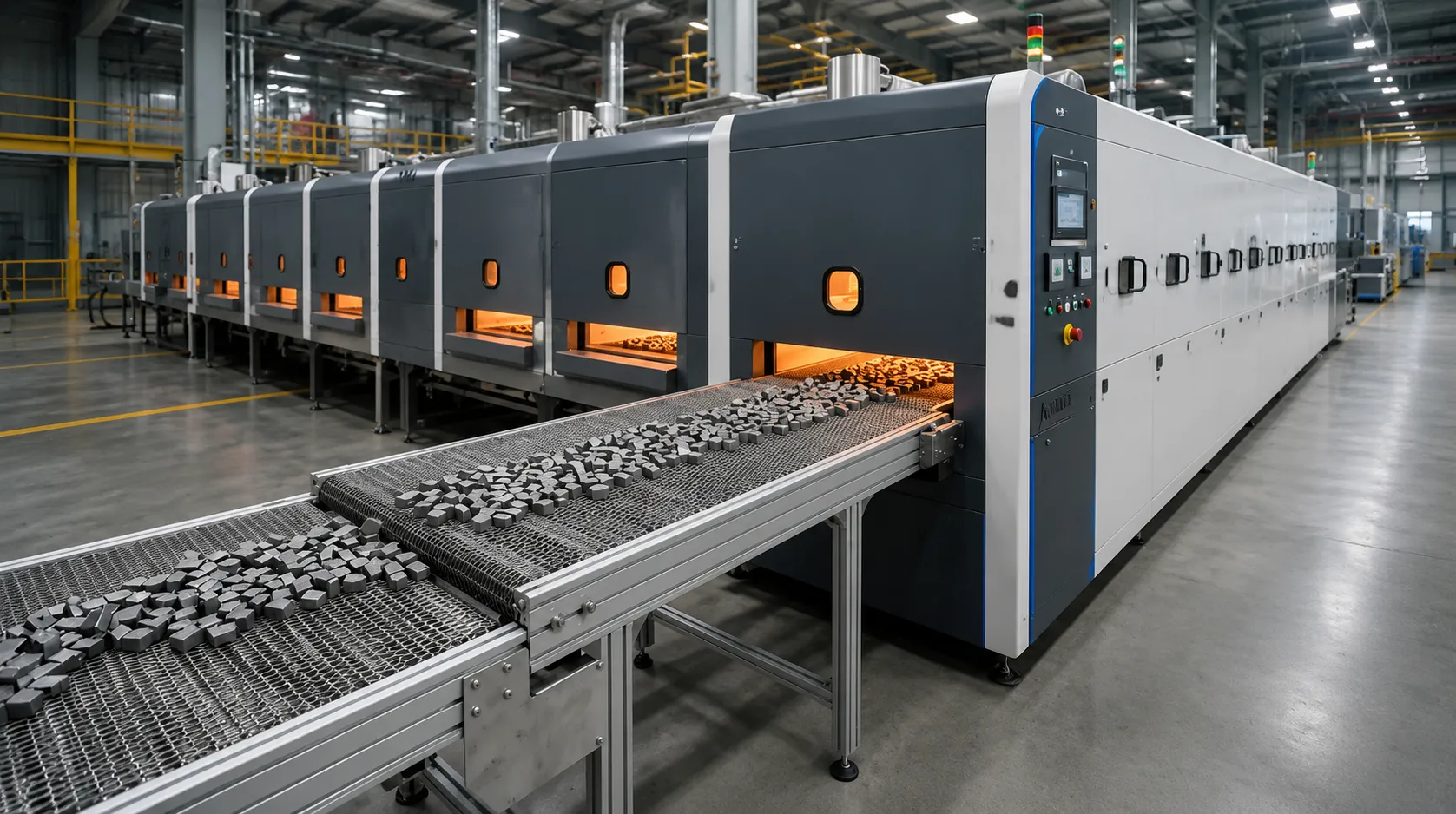

Continuous MIM sintering line featuring multi-stage dew point control and integrated binder trap systems.
Technical Application Comparison Matrix
A side-by-side technical reference showing custom furnace parameters engineered by Haitem Furnace to match specific industrial process requirements.
| Industrial Sector | Primary Application | Hot Zone Material | Atmosphere / Vacuum | Key Compliance Standard |
|---|---|---|---|---|
| Powder Metallurgy & MIM | Debinding & Sintering | Metallic / Molybdenum | Ar, N₂, H₂ / 10⁻³ Pa | Dew Point Control (-60°C) |

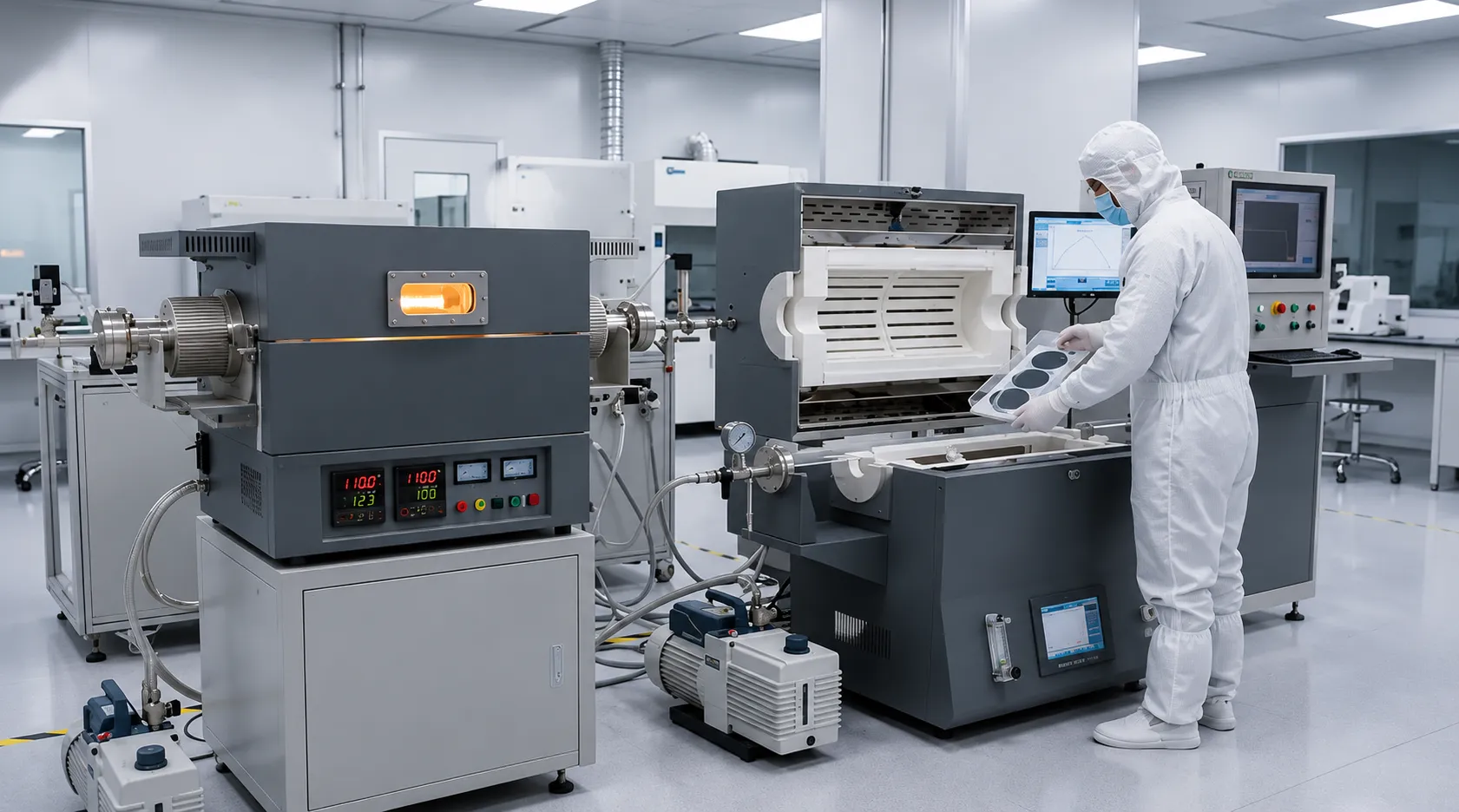

| Semiconductor & Advanced Materials | Crystal Growth & Wafer Annealing | Ultra-Pure Graphite / Tungsten | High Vacuum / Purified Argon | Sub-ppm Purity (< 1 ppm O₂) |

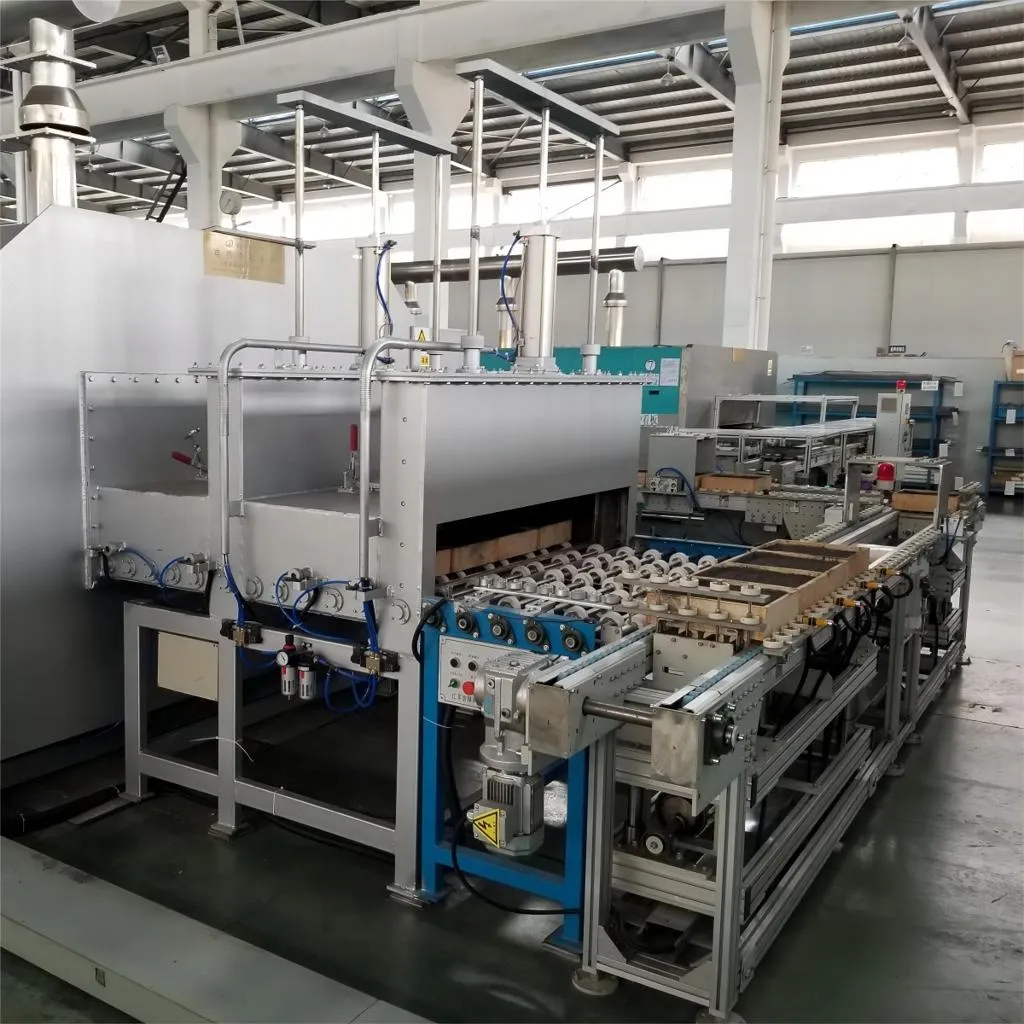

| Technical Ceramics | SiC & Structural Sintering | SiC / Graphite Hybrid | Inert / Nitrogen Purge | ±1°C Temperature Uniformity |

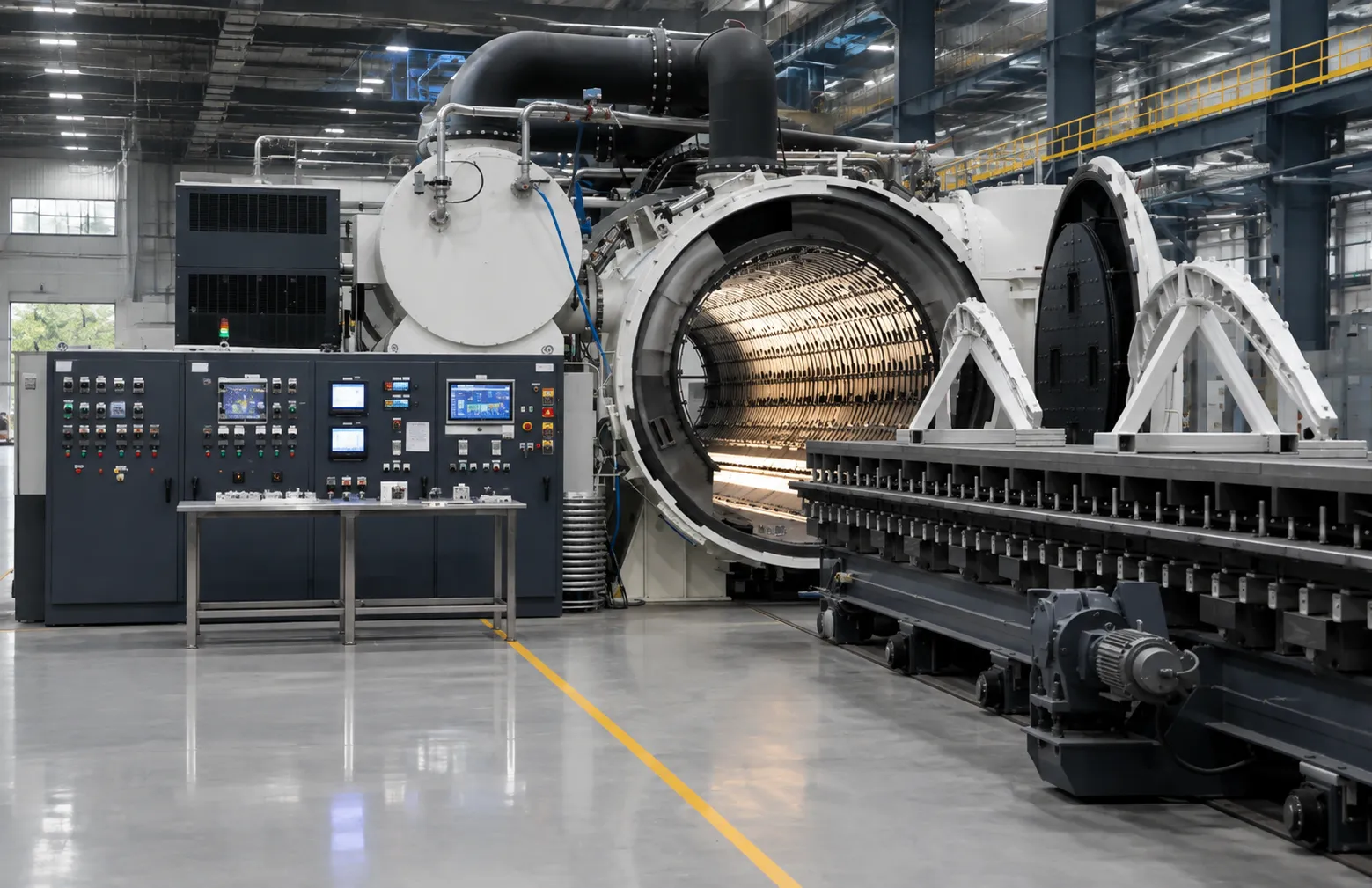

| Aerospace & Defense | Turbine Alloy Heat Treatment | Molybdenum / All-Metal Shielding | Ultra-Clean Vacuum Quench | AMS 2750 / Nadcap Class 1 |
Need a Tailored Thermal Processing Solution for Your Process?
From semiconductor materials to powder metallurgy, Haitem provides targeted custom heat treatment equipment for high-tech manufacturing worldwide. Our senior thermal engineers turn your exact process requirements into reliable industrial hardware blueprints.
Frequently Asked Questions About Custom Industrial Furnace Manufacturing
Procuring tailored thermal processing equipment requires total clarity on engineering lead times, process translation capabilities, factory testing protocols, and long-term serviceability. Below, our engineering team answers key questions for technical directors, metallurgists, and procurement leaders evaluating custom furnace solutions.
Technical Consultation & Engineering Framework
At about-us, we de-risk custom thermal projects through transparent stage-gate engineering and full-scale manufacturing-capabilities. Every non-standard furnace build is validated using thermodynamic modeling, CAD/CAE simulation, and rigorous FAT/SAT testing standards before delivery.
- 100% Process Alignment: Tailored thermal profiles, multi-zone heating control, and atmosphere gas manifolds customized to your precise metallurgical requirements.
- Precision Temperature Control: Achieves thermal uniformity down to ±1°C, fully compliant with AMS 2750G and Nadcap aerospace processing specifications.
- Standardized Architecture: Engineered with globally available COTS components to ensure effortless, long-term spare parts sourcing.
Comprehensive NDA Protection
All proprietary thermal process cycles, custom material formulations, and CAD integration schematics shared during engineering consultations are strictly protected under mutual Non-Disclosure Agreements (NDAs).
What is the typical lead time for a custom industrial furnace project?
Custom industrial furnace lead times typically range from 12 to 26 weeks from final engineering sign-off to factory shipment. Lead times depend on chamber volume, vacuum-furnaces pressure level requirements, multi-zone heating configurations, gas atmosphere manifolds, and plant SCADA integration needs.
Our project-based customization timeline follows a transparent four-stage engineering roadmap:
| Project Phase | Duration | Key Deliverables |
|---|---|---|
| 1. Design & Simulation | 3 – 5 Weeks | 3D CAD modeling, CFD thermal-fluid dynamics analysis, and utility interconnection specs. |
| 2. Sourcing & Hot Zone Fabrication | 5 – 10 Weeks | Procurement of refractory alloys, graphite/molybdenum elements, and vacuum pressure vessel welding. |
| 3. Assembly & System Integration | 4 – 6 Weeks | Mechanical build, multi-zone element wiring, gas manifold piping, and PLC control panel fabrication. |
| 4. Factory Acceptance Testing (FAT) | 2 – 3 Weeks | Full thermal profiling, vacuum mass spec leak verification, safety interlocks, and process validation. |
Note: Expedited engineering schedules are available for modular furnace adaptations or urgent facility upgrades following initial technical review.
Can Haitem reverse engineer a furnace build if we only have process temperature profiles?
Yes, absolutely. Many clients approach us with proprietary ramp curves, metallurgical targets, or legacy heat-treat data without complete equipment drawings. Haitem Furnace excels in process-to-equipment reverse engineering.
Our thermal engineering team utilizes finite element analysis (FEA) and computational fluid dynamics (CFD) to convert raw process parameters into full production hardware specifications:
- Thermal Power & Sizing Calculations: Calculating electrical load requirements to achieve target heating rates, dwell times, and operating temperatures exceeding 2000°C.
- Hot Zone Element Chemistry: Selecting optimal heating element compositions (Graphite, Molybdenum, Silicon Carbide, or Kanthal APM) based on vacuum depth and gas atmosphere conditions (H2, Ar, N2, Endothermic).
- Atmosphere Control & Dew Point Management: Designing precision gas mixing manifolds and purge logic to eliminate alloy oxidation and surface defects.
- Custom Control Software Architecture: Programming custom PLC ramp-and-soak recipes directly tailored to your required thermal profile.
How are Factory Acceptance Tests (FAT) conducted for non-standard equipment?
Factory Acceptance Testing (FAT) for custom industrial furnaces is conducted at our production facility prior to disassembly and export packaging. Clients are encouraged to attend in person or participate via real-time high-definition video inspection streaming.
Our custom equipment FAT protocol follows a rigorous four-part qualification framework:
- 1 Temperature Uniformity Survey (TUS): Multi-point thermocouple logging across the active work volume at operating temperatures to verify temperature uniformity down to ±1°C tolerances.
- 2 Vacuum Helium Leak Detection: High-vacuum chambers undergo helium mass spectrometer leak testing to confirm seal integrity down to 1 × 10⁻⁹ mbar·L/s.
- 3 Safety Interlock & Automation Verification: Full testing of cooling-water safety interlocks, over-temperature protection triggers, power interruption protocols, and automated gas purge valves.
- 4 Sample Process Batch Run: Processing customer-supplied sample coupons or components under full thermal load to confirm density, hardness, or surface finish before shipment.
How does Haitem handle long-term maintenance and spare parts for one-off custom designs?
Long-term serviceability is a core engineering requirement for all non-standard builds. Haitem Furnace addresses lifecycle support by combining standardized hardware architecture with complete digital engineering documentation:
- Digital Twin Archiving & Detailed BOM: Every custom furnace retains a permanent 3D CAD model and explicit Bill of Materials (BOM) in our engineering database. Every heating element, insulation block, seal, and sensor has a unique part code.
- Tier-1 COTS Component Integration: Electrical, pneumatic, and control components are specified from leading global vendors (e.g., Siemens PLC, Eurotherm, Schneider Electric) to ensure off-the-shelf part availability anywhere in North America or worldwide.
- First-Year Critical Spare Kit: Each custom unit ships with a tailored spare parts package containing high-wear components like replacement thermocouples, furnace door seals, heating element supports, and vacuum seals.
- Remote Diagnostics & Telemetry: Integrated IoT industrial gateways allow Haitem field engineers to securely inspect PLC logic, tune PID control loops, and analyze operating logs remotely to maximize facility uptime.
Ready to Engineer Your Custom Furnace Solution?
Share your thermal process requirements with Haitem Furnace engineers. Our technical team provides customized furnace design, atmosphere control solutions, and complete engineering support for demanding industrial applications.
