Core Performance & Engineering Metrics
Haitem Furnace ensures exceptional long-term operational stability across every heat treatment system through precision temperature control and protective atmosphere technologies.
Max Operating Temp
Engineered for sustained extreme thermal processing while preserving furnace chamber structure and heating element longevity.
AMS 2750F Uniformity
Strict pyrometry compliance delivering precision temperature control across all qualified work zones to uphold rigorous quality-certifications.
Furnace Engineering
Decades of continuous manufacturing innovation, custom equipment design, and high-precision heat treatment experience backed by advanced manufacturing-capabilities.
Global Installations
Proven furnace deployments operating reliably across automotive, aerospace, tooling, and powder metallurgy facilities worldwide.

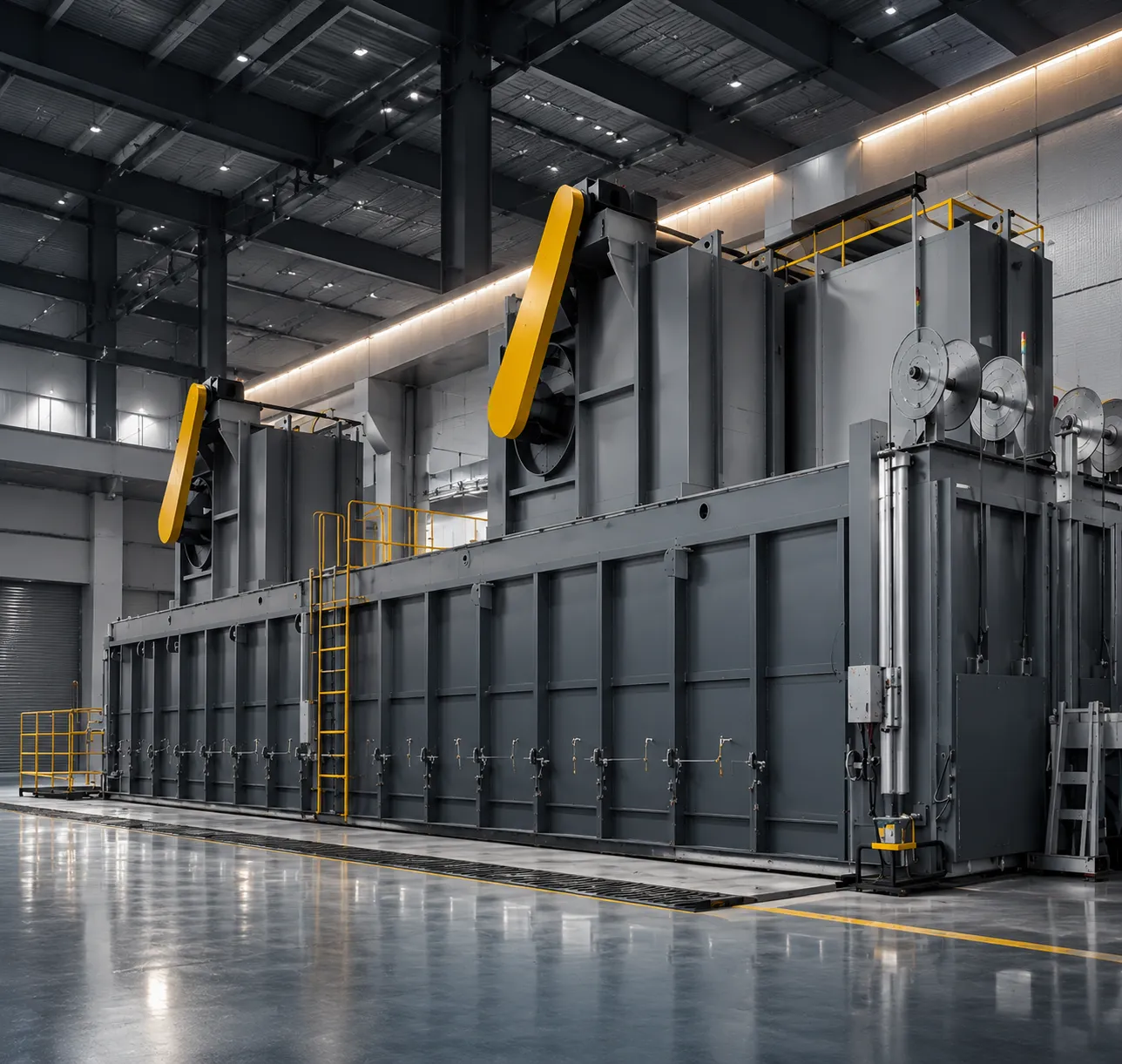

Architected for Thermal Processing Reliability & Industrial Performance
Haitem Furnace combines expert furnace engineering with multi-zone digital heating, responsive PLC control, and energy-efficient refractory lining to ensure unmatched batch-to-batch repeatability across critical production runs.
- Full pyrometry compliance with AMS 2750F standards for aerospace and defense specifications.
- Capable of sustained high-temperature operations up to 1800°C+ without thermal drift.
- Integrated atmosphere management systems for zero-decarburization thermal processing.
Thermal Rating
AMS 2750F Compliant
Industrial Heat Treatment Furnace Product Matrix
The Haitem Furnace thermal equipment line covers essential metal heat treatment operations to satisfy rigorous material standards and demanding production schedules. Designed as high-efficiency industrial furnace solutions for precision annealing, hardening, and tempering applications across our entire products portfolio.

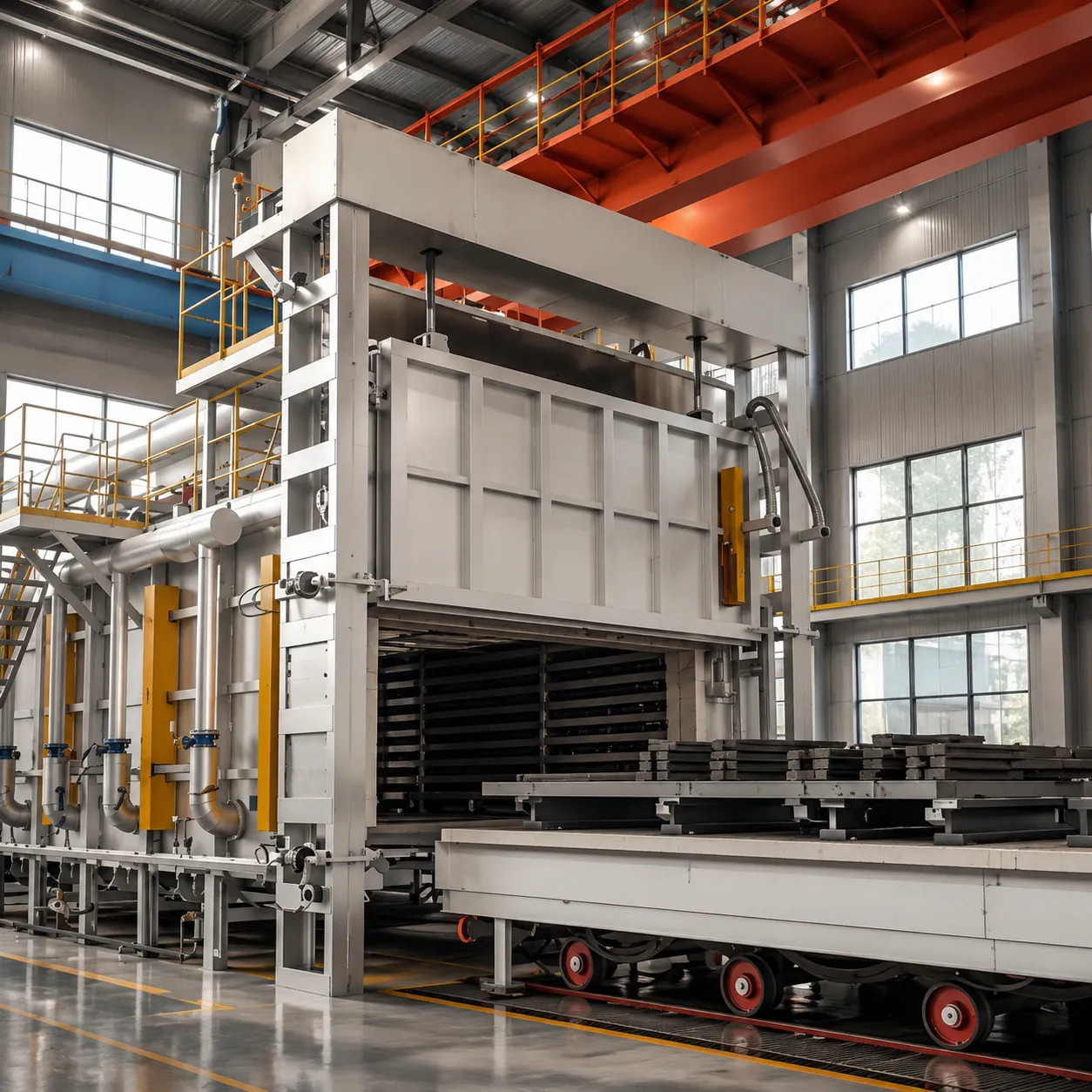

Stress Relief and Softening Annealing Furnaces
Designed to eliminate internal stresses, reduce hardness, and improve ductility. Ideal for recrystallization, stress relief, and full annealing processes across forged, cast, and machined metal workpieces.
Core Engineering Features
- • Energy Efficient Insulation: Low thermal mass ceramic fiber refractories minimize energy loss.
- • Automated Cooling Curves: Programmable ramp down controls safeguard against thermal warping.
- • Uniform Heat Soaking: Multi-zone heating elements ensure consistent grain growth.

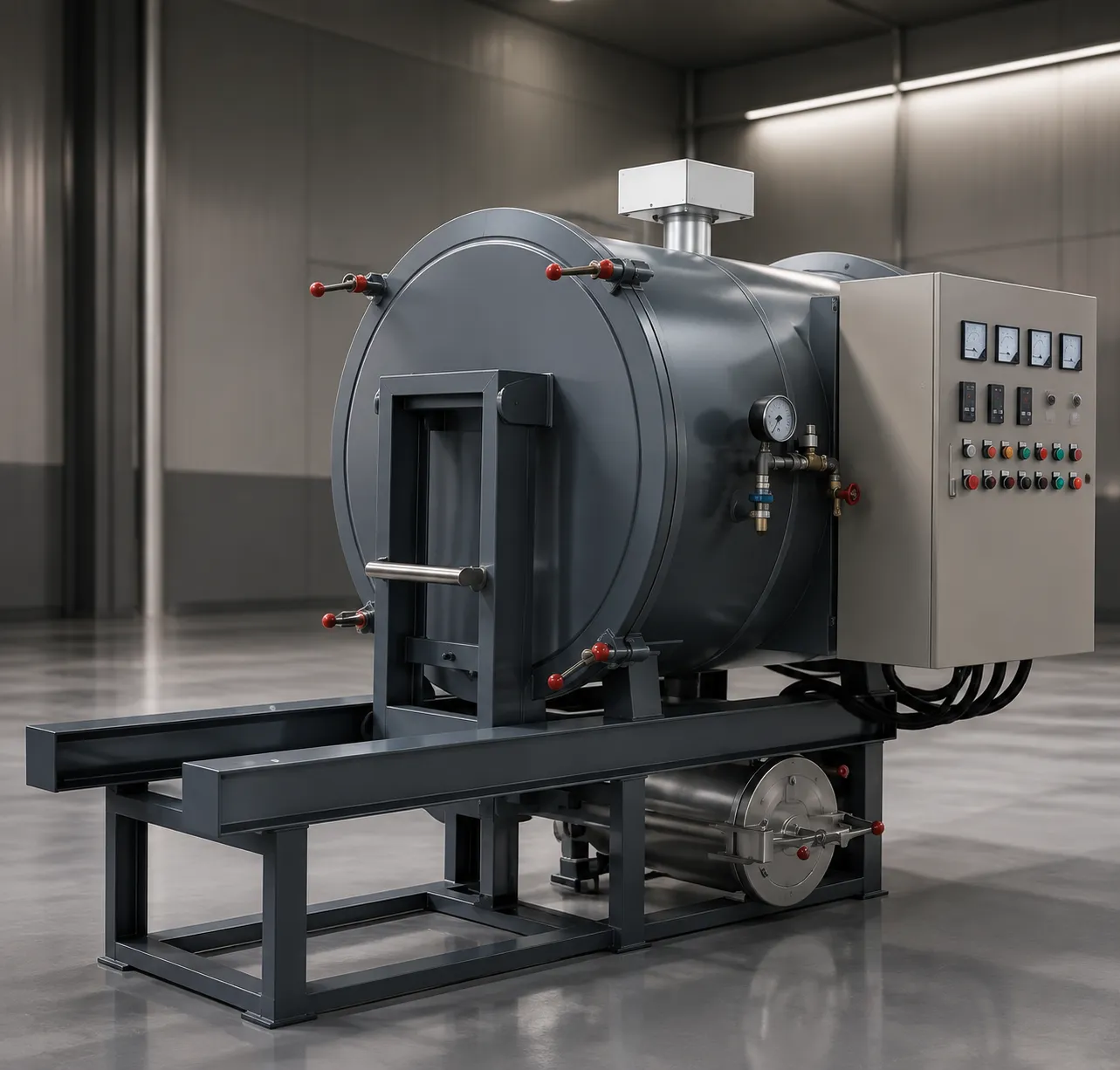

Phase Transformation Hardening Furnaces
Delivers rapid, uniform heating and precise phase transformation control to meet strict hardness and metallurgical requirements for tool steels, structural alloy parts, and critical mechanical components.
Core Engineering Features
- • Protective Atmosphere: Prevents surface oxidation and harmful decarburization during heating.
- • Multi Medium Quenching: Integrated with oil, water, polymer, or forced gas quenching channels.
- • High Thermal Density: Accelerated heating rates optimize grain structure refinement.

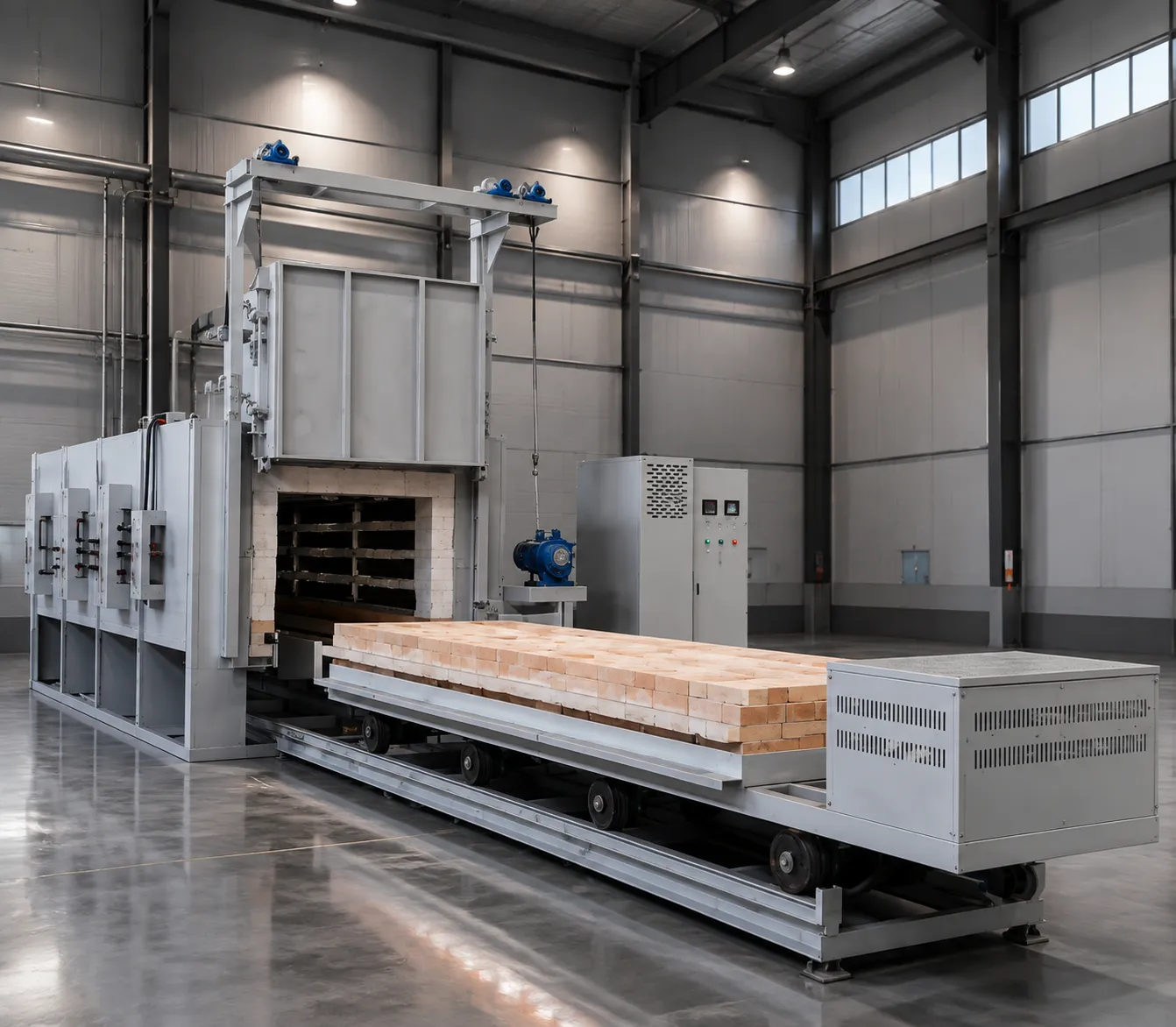

Microstructure Stabilization Tempering Furnaces
Paired with hardening processes to precisely adjust toughness and hardness, eliminate residual quenching stresses, and ensure dimensional stability across all finished parts.
Core Engineering Features
- • Hot Air Recirculation: High-velocity convection fans ensure maximum heat transfer efficiency.
- • Low Zone Uniformity: Superior temperature stability within low-to-medium thermal bands.
- • Stress Relief Precision: Stabilizes metal lattice structures to eliminate post-process distortion.
Integrated Thermal Processing Capability
Selecting the optimal heat treatment furnace requires balancing workpiece alloy metallurgy, production line volume, and furnace temperature uniformity. Haitem Furnace serves as a dedicated custom furnace builder backed by robust manufacturing-capabilities, engineering standalone batch units and fully continuous thermal processing lines that take raw steel components through stress relief annealing, protective quenching, and precision tempering cycles.
| Furnace Line | Metallurgical Purpose | Operating Temp Range | Atmosphere Options | Typical Workpieces |
|---|---|---|---|---|
| Annealing Furnaces | Stress relief, ductility enhancement, grain refinement | 500°C – 1100°C | Nitrogen, Argon, Vacuum, Ambient Air | Heavy forgings, cold-worked sheet, castings |
| Hardening Furnaces | Austenitizing, rapid transformation, maximum hardness | 800°C – 1300°C | Endothermic Gas, Nitrogen-Methanol, Vacuum | Automotive gears, bearings, tool steel dies |
| Tempering Furnaces | Toughness optimization, residual stress elimination | 150°C – 700°C | Forced Air Convection, Inert Nitrogen | Quenched alloy components, high-tensile bolts |
Custom Furnace Builder Engineering Excellence
Haitem Furnace designs custom heat treatment equipment engineered for real-world manufacturing conditions. Whether your plant requires flexible batch furnaces for high-mix low-volume dies or automated continuous mesh belt systems for mass production, our engineers configure element placement, gas tight chamber seals, and insulation profiles for reliable long-term performance.
Every system incorporates modern PLC controls with multi-zone PID temperature regulation, providing real-time data logging and temperature uniformity compliant with strict industry specifications such as AMS 2750F.
Precision Temperature and Atmosphere Integration
Maintaining tight metallurgical tolerances across heavy production runs demands tight control over the furnace chamber environment. Haitem Furnace incorporates protective atmosphere systems that isolate the heating zone from ambient air, preventing surface oxidation and decarburization during high-temperature cycles.
Combined with high-efficiency ceramic refractory insulation and low-emissivity heating elements, our furnace designs reduce energy consumption while maintaining high throughput and structural dependability in 24/7 operating environments.
Precision Metallurgical Heat Treatment: Transforming Alloy Microstructures
Haitem Furnace integrates physical metallurgy directly into advanced equipment engineering. By precisely controlling thermal energy input, soaking duration, protective gas atmospheres, and cooling dynamics, our metallurgical heat treatment equipment transforms metal microstructures to achieve exact hardness, yield strength, and fatigue resistance specifications.
Stress Relief Annealing & Softening
Stress relief annealing eliminates high internal residual stresses generated during cold working, heavy machining, casting, or welding. Controlled soaking times and precision furnace cooling limit grain growth while restoring material ductility for downstream shaping and machining operations.
- Soaking Time Precision: Ensures uniform thermal saturation across thick-walled or complex workpiece geometries.
- Controlled Slow Cooling: Prevents thermal shock and locks in stable, recrystallized grain structures.
- Dimensional Stability: Relieves internal stress state to eliminate distortion and maintain tight machining tolerances.
Phase Transformation Hardening & Quenching
Hardening processes rapidly heat carbon and alloy steels above their critical transformation temperatures before controlled rapid cooling. Integrated protective gas atmospheres prevent surface oxidation and decarburization during heating, guaranteeing consistent martensitic phase transformation.
- Precise Austenitizing Control: Enables complete carbon dissolution into solid solution for maximum achievable hardness.
- Atmosphere Protection: Synthetic gas shields preserve surface chemistry and eliminate post-heat treatment scaling.
- Agitated Quench Systems: Multi-medium oil, polymer, or high-pressure gas quenching maximizes core hardness penetration.
Microstructure Stabilization via Tempering
Essential to every quenching and tempering cycle, tempering reheats hardened components between 150°C and 650°C. High-velocity forced convection fans distribute heat uniformly across the chamber, transforming brittle untempered martensite into stable microstructures with tailored impact toughness.
- Forced Air Convection: High-output recirculation fans guarantee tight furnace temperature uniformity in low-to-medium zones.
- Multi-Stage Cycles: Secondary and tertiary tempering routines stabilize high-alloy tool and die steels against volume changes.
- Toughness Tuning: Accurately balances tensile strength, wear resistance, and fracture toughness to target specifications.
Metallurgical Thermal Curve Standards
Achieving predictable metallurgical properties requires exact thermal curve repeatability across continuous or batch production lines. Haitem Furnace systems automate heating profiles using multi-zone PID controllers to maintain strict temperature uniformity through every soak, quench, and temper phase.
| Process Stage | Temperature Range | Target Microstructure | Engineering Outcome |
|---|---|---|---|
| Stress Relief Annealing | 550°C to 850°C | Ferrite & Pearlite / Recrystallized Grain | Residual stress removal, maximum ductility, and improved machinability |
| Quenching & Hardening | 800°C to 1150°C | Untempered Martensite | Maximum material hardness, wear resistance, and high tensile strength |
| Tempering | 150°C to 650°C | Tempered Martensite | Optimum impact toughness, stress relief, and long-term dimensional stability |

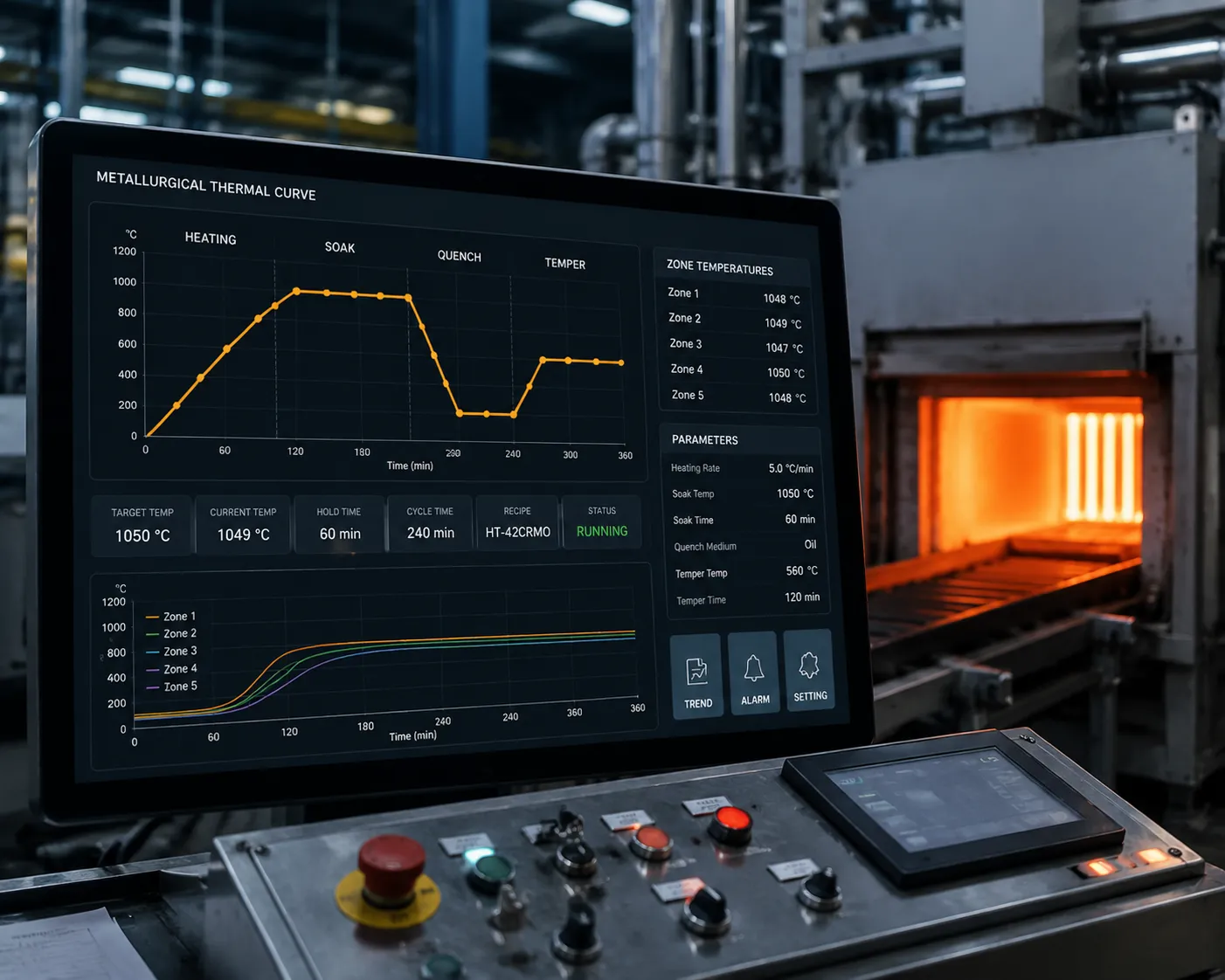

Precision temperature control and atmosphere management inside a Haitem industrial heat treatment furnace chamber.
Custom Metallurgical Science and Thermal Profiling
Haitem thermal engineers bridge metallurgical science with custom industrial furnace manufacturing. We develop multi-stage heating, soaking, and quenching programs tailored specifically to your alloy chemistry, component geometry, and target mechanical specifications.

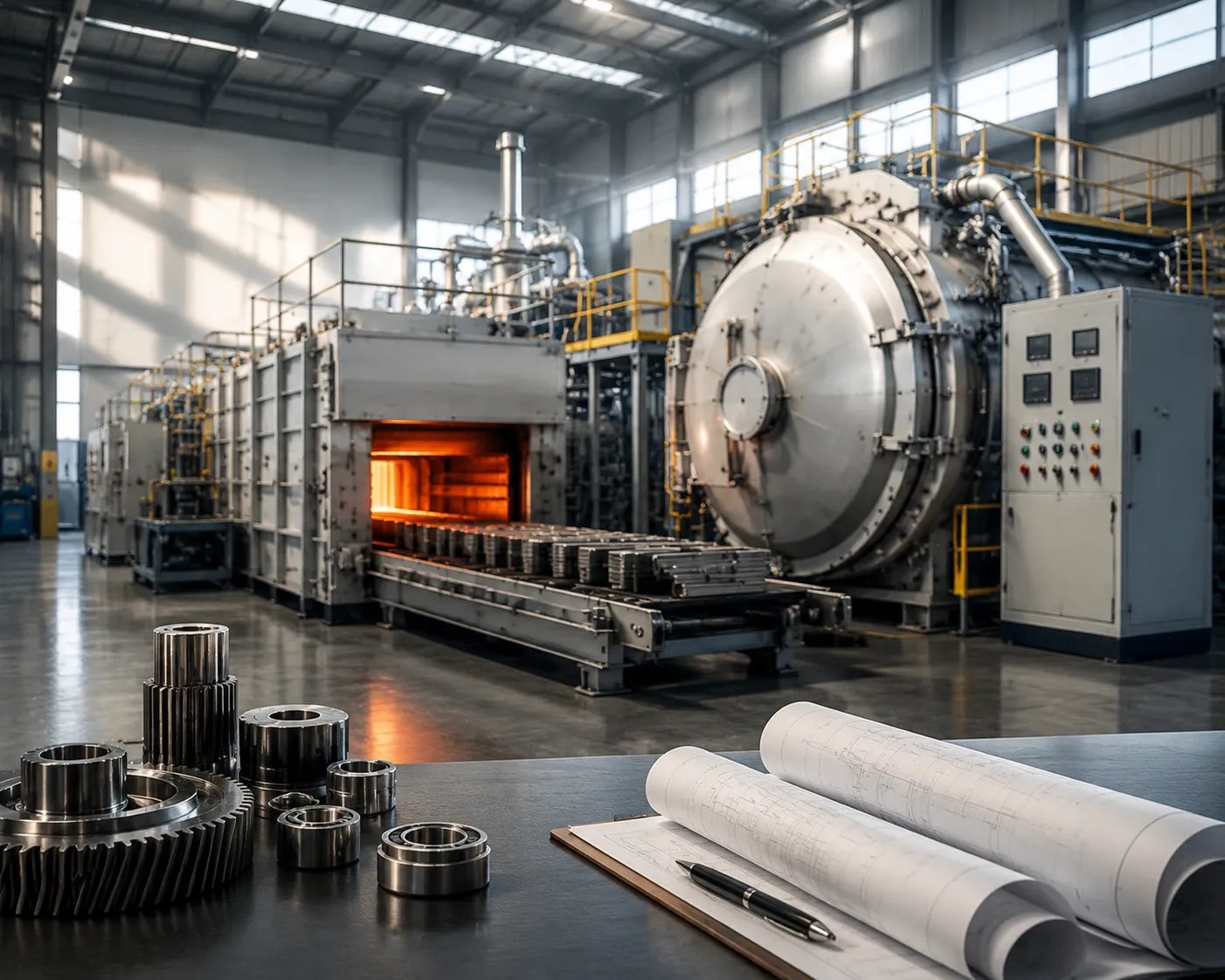

Heat Treatment Equipment Selection Guide
Selecting the ideal industrial heat treatment furnace requires balancing material metallurgical requirements, target production throughput, atmosphere control, and long-term operating costs. Haitem Furnace provides comprehensive technical selection support, helping engineering teams evaluate configurations ranging from versatile batch units to fully automated continuous production lines.
Batch Box & Pit Furnaces
Engineered for high-mix, low-to-medium volume production runs, heavy forged components, and oversized industrial workpieces requiring customized thermal profiles and extended soak cycles.
- • Ideal Applications: Large forgings, die blocks, heavy castings, and low-volume custom batches
- • Key Advantage: Exceptional cycle flexibility with fully programmable heating and cooling profiles
- • Atmosphere Capability: Standard air chamber, protective nitrogen, or sealed retort environments
Continuous Mesh Belt & Roller Hearth
Designed for mass production lines demanding consistent continuous throughput, automated material transfer, multi-zone temperature control, and inline quenching integration. Learn more about our advanced manufacturing capabilities.
- • Ideal Applications: Automotive fasteners, bearings, precision stampings, and high-volume gears
- • Key Advantage: Maximum continuous output efficiency with reduced manual labor requirements
- • Atmosphere Capability: Endothermic gas generators, enriched nitrogen, or methanol atmosphere systems
Vacuum & Controlled Atmosphere Furnaces
Essential for high-precision, bright surface thermal processing where oxidation, scaling, and surface decarburization must be completely eliminated. Explore our specialized vacuum furnaces.
- • Ideal Applications: Aerospace turbine parts, medical implants, high-alloy tool steel, and electronics
- • Key Advantage: Superior metallurgical purity, zero surface oxidation, and clean workpiece finishes
- • Atmosphere Capability: High vacuum, argon, nitrogen, or pure hydrogen purging systems
Key Selection Criteria for Heat Treatment Equipment
Evaluating a thermal system involves analyzing key operational dimensions. Performing a detailed heat treatment furnace comparison helps plant managers balance initial capital investment against long-term operational and maintenance costs. Comparing batch vs continuous furnace systems clarifies throughput capabilities, while specifying the right atmosphere heat treatment setup prevents costly surface defects and rework.
Furnace Line Comparison Matrix
Review core technical specifications across primary furnace categories to identify the ideal thermal system for your facility footprint, production targets, and metallurgical standards.
| Comparison Dimension | Batch Box & Pit Furnaces | Continuous Furnaces | Vacuum & Atmosphere Furnaces |
|---|---|---|---|
| Processing Method | Discontinuous batch cycle heating with customized soak profiles and ramp controls | Automated continuous inline thermal processing with multi-zone control | Sealed chamber thermal processing with vacuum or high-pressure gas quenching |
| Production Scale | High-mix, low-to-medium volume production and heavy oversized workpieces | High-volume, standardized mass production lines requiring steady output | Medium-volume, high-value specialized components demanding clean finishes |
| Temperature Control Precision | Standard chamber control maintaining uniformity within ±5°C to ±10°C | Multi-zone PID control maintaining tight uniformity within ±3°C to ±5°C | Ultra-precise furnace temperature uniformity maintaining ±1°C to ±3°C |
| Atmosphere Protection | Ambient air, nitrogen purge, or optional sealed protective retorts | Endothermic gas, methanol-nitrogen, or protective gas atmosphere systems | High vacuum or high-purity inert gas (argon/nitrogen/hydrogen) environment |
| Compatible Workpieces | Heavy forgings, large castings, custom tool dies, structural steel parts | Fasteners, bearings, automotive stampings, standardized hardware items | Aerospace turbine blades, medical implants, precision tool steels, superalloys |
| Maintenance Cost & ROI | Lower initial capital outlay with straightforward mechanical maintenance requirements | Moderate capital investment offset by high continuous operational throughput | Higher initial equipment investment offset by virtually zero part scrap rates |
Workpiece Material & Furnace Matching
Achieving optimal metallurgical properties requires matching workpiece alloy chemistry with proper atmosphere and furnace dynamics to maximize efficiency and part quality.
Carbon Steels & Low-Alloy Steels
Ideal for standard stress relief annealing, neutral hardening, and tempering. Performs effectively in both batch box systems and continuous mesh belt configurations.
High-Alloy & Tool Steels
Requires precise atmosphere control or vacuum heating during high-temperature soaking to eliminate decarburization and achieve target Rockwell hardness.
Stainless Steels & Superalloys
Demands bright annealing or solution heat treating in high-vacuum or hydrogen environments to preserve corrosion resistance and maintain bright finishes.
Engineering Support & Custom Integration
Haitem Furnace delivers end-to-end thermal line engineering support. Whether you require a competitive heat treatment furnace price quote or full custom thermal processing integration tailored to your facility, our technical team provides reliable turnkey solutions.
Industrial Applications Across Critical Manufacturing Sectors
Haitem Furnace delivers engineered industrial heat treatment furnace systems tailored for high-stakes manufacturing environments. Every thermal processing solution is optimized for strict metallurgical compliance, precision temperature control, and maximum operational uptime.
Automotive Components
High-performance automotive thermal processing demands repeatable hardening, minimal distortion, and consistent core strength across high-volume continuous production batches.
- ✓ Target Parts: Transmission gears, heavy-duty bearings, drive shafts, and engine timing components.
- ✓ Core Thermal Processes: Gas carburizing, protective atmosphere quenching and tempering, and carbonitriding.
- ✓ Quality Value: Ensures CQI-9 compliance with uniform case depth and superior fatigue resistance.
Fasteners and Hardware
Automated continuous furnace lines engineered for high-volume stress relief and hardening of structural fasteners without surface oxidation or decarburization.
- ✓ Target Parts: High-tensile bolts, structural screws, industrial rivets, and heavy anchors.
- ✓ Core Thermal Processes: Continuous mesh belt hardening, controlled atmosphere stress relief annealing, and oil quenching.
- ✓ Quality Value: Prevents hydrogen embrittlement while maintaining zero surface decarburization.
Tool and Die Manufacturing
Specialized tool steel hardening requires ultra-precise high-temperature quenching and multiple tempering cycles to yield maximum hardness and wear resistance.
- ✓ Target Parts: Cold work dies, high-speed steel tools, hot forging dies, and injection molds.
- ✓ Core Thermal Processes: Vacuum quenching, high-temperature hardening up to 1300°C, and double or triple tempering cycles.
- ✓ Quality Value: Minimizes dimensional warping and retains acute cutting edge longevity.
Powder Metallurgy and Metal Injection Molding
Advanced powder metallurgy heat treatment systems engineered for post-sintering densification, stress relief, and thermal hardening of net-shape parts. Our solutions leverage advanced vacuum sintering furnace technology for precise results.
- ✓ Target Parts: Sintered structural gears, metal injection molding components, and porous filter metals.
- ✓ Core Thermal Processes: Sinter hardening, controlled atmosphere debinding, and vacuum high-density sintering.
- ✓ Quality Value: Eliminates internal void stresses and optimizes micro-hardness across intricate structural geometries.
Aerospace and Defense
Aerospace heat treatment furnace designs delivering strict AMS 2750F pyrometry compliance for processing superalloys and flight-critical metals.
- ✓ Target Parts: Turbine blades, landing gear structures, nickel superalloy fasteners, and titanium frames.
- ✓ Core Thermal Processes: Solution heat treating, precipitation hardening, aging, and high-vacuum bright annealing.
- ✓ Quality Value: Maintains strict ±3°C temperature uniformity for optimal creep strength and tensile yield.
Semiconductor and Energy
Ultra-clean atmosphere processing for specialized alloy tracks, energy infrastructure components, and high-purity thermal process chambers.
- ✓ Target Parts: Custom alloy lead frames, energy turbine components, transformer cores, and specialized tracks.
- ✓ Core Thermal Processes: High-purity hydrogen annealing, magnetic field stress relieving, and vacuum outgassing.
- ✓ Quality Value: Enhances electromagnetic conductivity and eliminates micro-structural residual stresses.

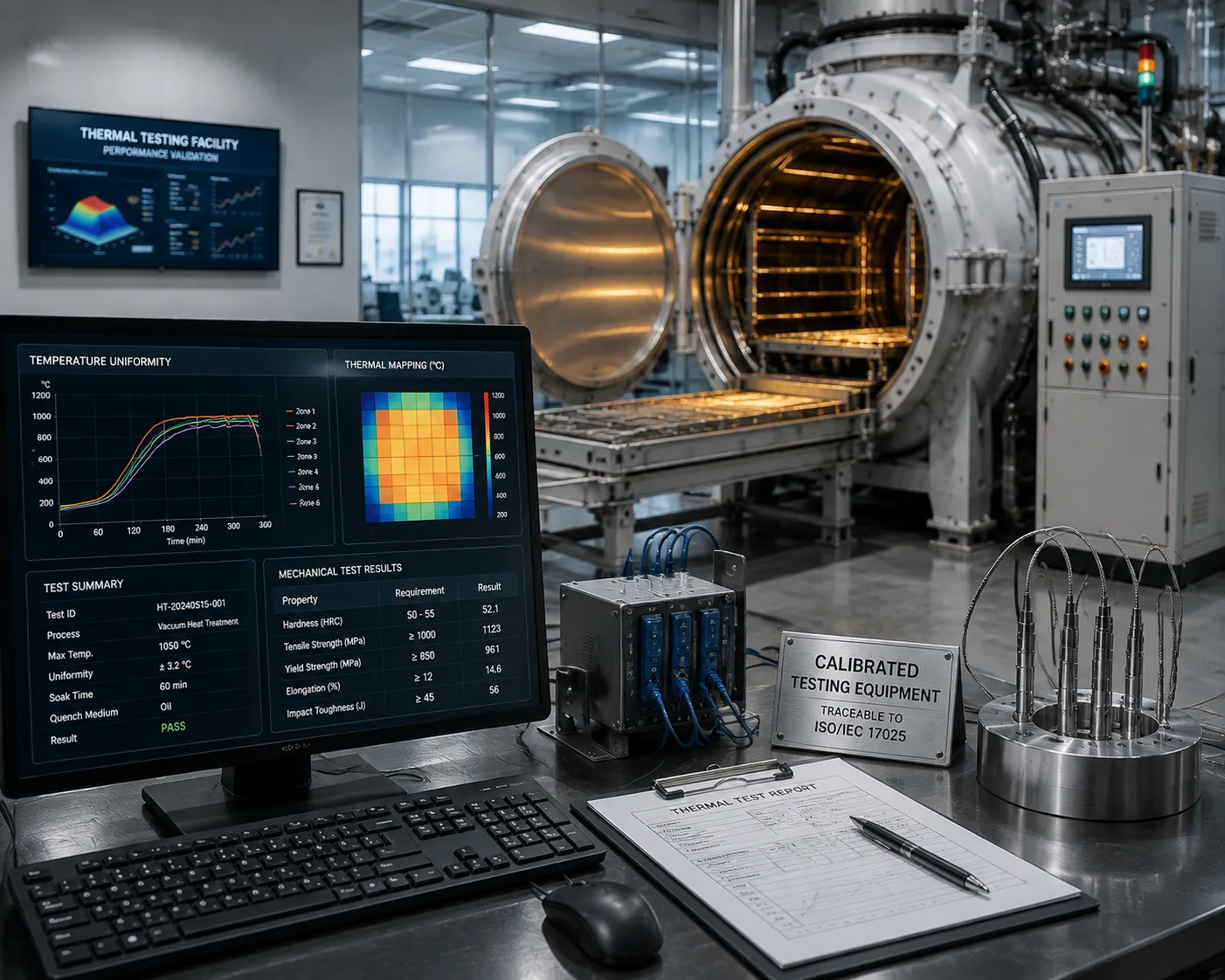

Stringent Quality Compliance for High Performance Thermal Processing
Haitem Furnace engineers every industrial heat treatment furnace to surpass global manufacturing standards. Whether your production facility requires precise carbon potential monitoring or continuous quenching and tempering routines, our equipment delivers repeatable metallurgic stability backed by our robust manufacturing capabilities.
Metallurgical Precision and Hardness Controls
Multi-zone PID control systems ensure precise heating curves and uniform phase transformations, preventing soft spots and unexpected hardness deviations.
Deformation Limits and Dimensional Stability
Controlled cooling atmospheric profiles and forced gas convection prevent thermal shock, keeping complex workpieces strictly within critical engineering tolerances.
Automated Atmosphere and Temperature Control
Integrated oxygen probes, mass flow controllers, and real-time data logging allow seamless integration into automated digital production environments.

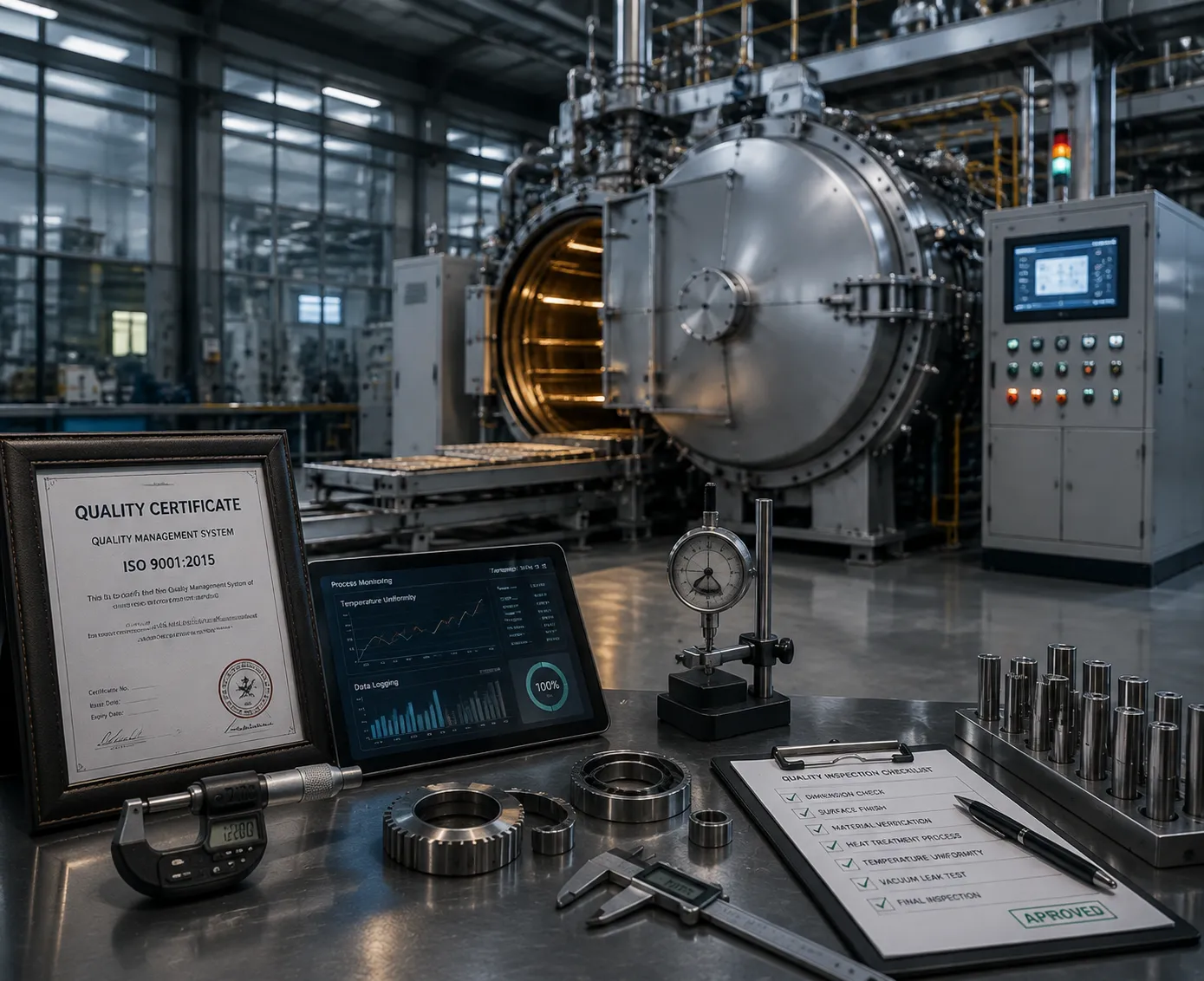

Haitem heat treatment equipment complies with ISO 9001 quality management standards, delivering certified reliability across global installation markets.
Application Capability Overview
Review furnace process compatibilities across different industrial materials and components to identify the ideal thermal engineering setup for your facility.
| Industrial Sector | Key Alloy Grades | Primary Heat Treatment | Furnace Type Recommendation |
|---|---|---|---|
| Automotive | 20CrMnTi, 8620H, 4140, 5160 | Carburizing, Quenching, Tempering | Continuous Pusher or Roller Hearth Furnace |
| Fasteners | 35CrMo, 42CrMo, Medium Carbon Steels | Stress Relief Annealing, Hardening | Mesh Belt Continuous Furnace Line |
| Tool and Die | D2, H13, SKD11, M2 High Speed Steel | High Temp Quenching, Multiple Tempering | Vacuum Heat Treatment or Pit Furnace |
| Powder Metallurgy | Iron Copper Carbon Alloys, Sintered Stainless | Post Sinter Hardening, Stress Relief | Controlled Atmosphere Conveyor Furnace |
| Aerospace | Inconel 718, Titanium Alloys, 17-4PH | Solution Treating, Vacuum Annealing | AMS 2750F Certified Vacuum Furnace |
Frequently Asked Questions
Explore technical insights on industrial heat treatment equipment, furnace temperature uniformity standards, custom thermal processing engineering, and operational cost factors. Haitem Furnace provides total engineering transparency to empower your technical selection and purchasing decisions.
How Do You Ensure Furnace Temperature Uniformity?
Achieving precise furnace temperature uniformity across demanding metallurgical cycles requires a synchronized engineering approach combining multi-zone power distribution, intelligent digital regulation, and high-velocity forced atmosphere circulation.
At Haitem Furnace, full compliance with strict international heat-treating standards such as AMS 2750F (maintaining tight tolerances from ±3°C to ±5°C) is assured through four integrated thermal control subsystems:
- Multi-Zone Heating Control: Independent SCR or solid-state relay power modulation across top, bottom, and lateral zones actively compensates for thermal loss near doors and hearth edges.
- PID Smart Regulation: Microprocessor-based digital temperature controllers continuously calculate thermal load variances and prevent overshoot during ramp and soak stages.
- Forced Atmosphere Recirculation: Heavy-duty stainless steel or superalloy circulation fans drive turbulent convection currents throughout low-to-medium temperature chambers.
- High-Density Thermal Insulation: Low thermal mass ceramic fiber linings eliminate cold thermal bridges and maintain long-term heat containment.
Can Annealing, Hardening, and Tempering Be Executed in One Furnace?
Yes. Multi-purpose box furnaces and protective atmosphere batch systems offer outstanding operational flexibility. A single high-performance unit can be programmed for stress-relieving annealing furnace recipes, high-temperature hardening furnace soaking, and lower-temperature tempering furnace cycles.
However, for enterprise manufacturing operations, production volume dictates the ideal equipment setup:
Multi-Purpose Batch Furnaces
Ideal for high-mix, lower-volume toolrooms, commercial heat treaters, and R&D facilities that demand versatile recipe scheduling.
Dedicated Continuous Lines
Essential for high-volume mass production, eliminating energy loss and idle time caused by ramp-down cycles between hardening and tempering steps.
Does Haitem Support Custom Furnace Engineering and Integration?
Yes. As an experienced custom furnace builder, Haitem Furnace specializes in engineering tailored custom thermal processing solutions designed around your plant's physical footprint, overhead crane limits, automated loading systems, and exact metallurgical specifications.
Our comprehensive custom engineering process includes:
- 3D CAD plant integration modeling, structural stress evaluation, and hearth load distribution analysis.
- Thermodynamic computational fluid dynamics (CFD) modeling for optimized protective atmosphere flow.
- Tailored protective atmosphere delivery systems including endothermic gas, nitrogen purges, and specialized vacuum furnaces.
- Automated material handling solutions such as pneumatic door drives, roller tables, pushers, and quench elevator mechanisms.
What Safety Standards and Environmental Controls Are Built In?
Operating heavy industrial heat treatment equipment involves high thermal loads and controlled process gases. Haitem equips every furnace system with redundant mechanical, digital, and environmental safety interlocks.
- Overtemperature Protection: Independent digital limiters instantly cut power to prevent thermal runaway if primary controllers experience a fault.
- Combustible Atmosphere Interlocks: Automated safety purge cycles use inert nitrogen gas prior to gas ignition or burner startup.
- Thermocouple Failure Safeguards: Automatic power shedding initiates immediately if sensor open-circuit signals are detected.
- Eco-Friendly Thermal Envelope: Premium multi-layer ceramic fiber insulation maintains casing temperatures below 45°C to safeguard operators and minimize shop floor HVAC burdens.
What Factors Influence Overall Heat Treatment Furnace Price and ROI?
When evaluating heat treatment furnace price options, initial capital outlay must be evaluated alongside long-term energy consumption, maintenance overhead, and metallurgical yield stability. Primary cost variables include maximum rated temperature, chamber dimensions, atmosphere tightness, and PLC automation levels.
| Equipment Category | Primary Cost Drivers | Operational ROI Focus |
|---|---|---|
| Batch Box & Pit Furnaces | Chamber volume, heating element alloy, manual vs. semi-automated PLC options | Lower upfront capital requirement, high recipe versatility |
| Continuous Mesh Belt Lines | Conveyor drive length, multi-zone control, automated quench integration | Lowest labor cost per component, maximum continuous throughput |
| Controlled Atmosphere Units | Precision vacuum sealing, gas manifold complexity, explosion-proof barriers | Zero oxidation surface finishes, minimal post-process grinding |
What Lifecycle Technical Support and Field Installation Services Do You Provide?
Haitem Furnace delivers end-to-end engineering support to maximize long-term thermal processing reliability throughout your equipment's operational lifecycle.
Every system deployment complies with international quality certifications and includes pre-shipment metallurgical test runs, professional on-site engineering supervision, sensor calibration, Temperature Uniformity Surveys (TUS), System Accuracy Tests (SAT), and complete hands-on operational training for your technical personnel.
Engineering Excellence Guaranteed
Haitem Furnace operates advanced thermal testing facilities to validate temperature uniformity and metallurgical results for global enterprise clients.
Key Engineering Metrics
Custom Process Assistance
Need specialized furnace dimensions or expert guidance on alloy hardening, stress relief, or atmosphere selection? Speak directly with our thermal design engineers.
24-Hour Engineering Response Guarantee
Free Thermal Modeling & Process Evaluation
