Applications Across Metal Heat Treatment Processes
Map advanced vacuum furnace capabilities directly to specific metallurgical requirements, material types, and processing objectives. Haitem Furnace engineers precise thermal curves tailored to optimize material integrity across diverse alloy compositions.

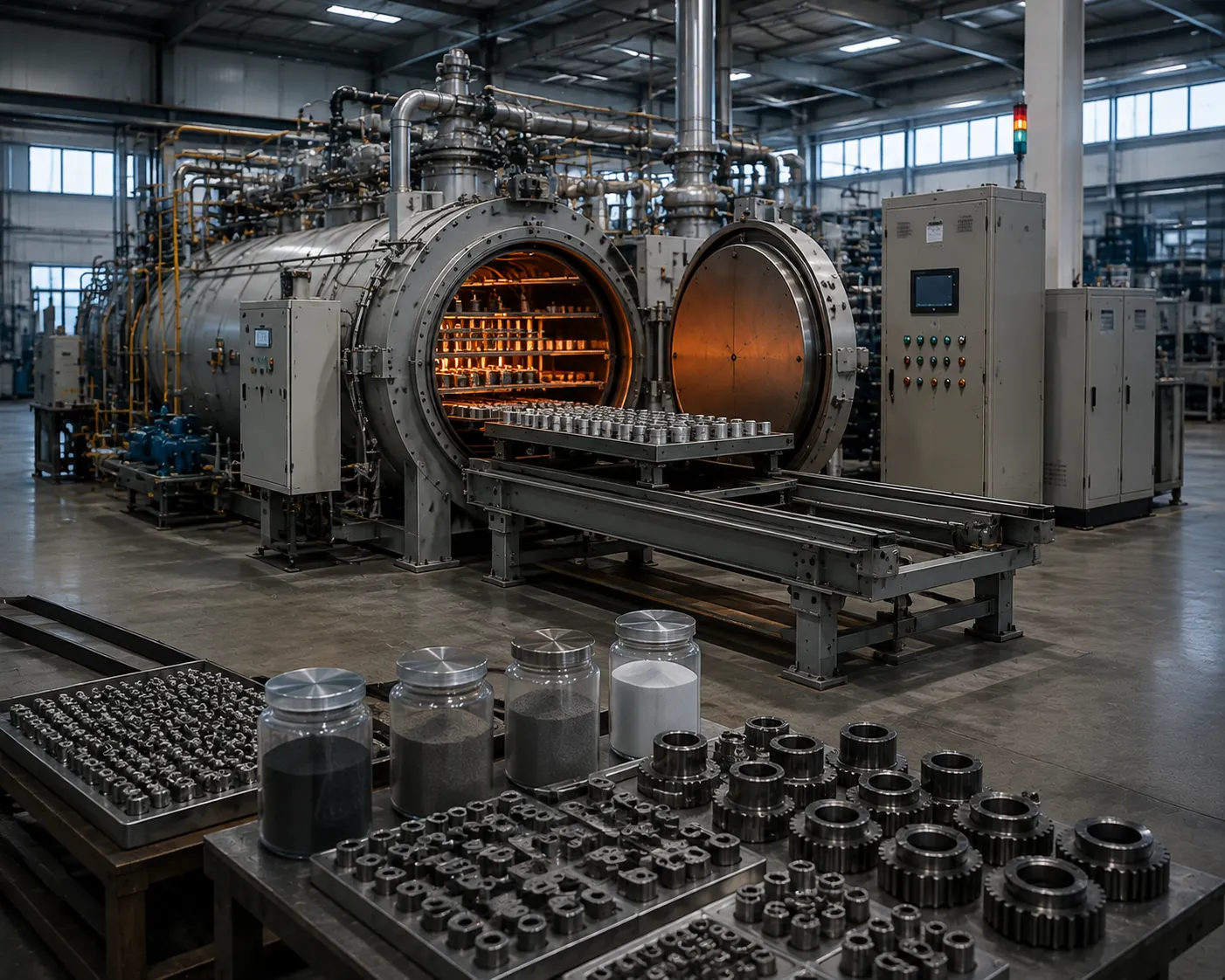

Powder Metallurgy & MIM Solutions
Standardize material density and structural stability through high-efficiency debinding and precise thermal management. Our metal annealing process provides complete control over sintering phase transitions to ensure superior part strength.
Metallurgical Objectives & Capabilities
- Stress Relief Heat Treatment: Eliminates residual molding and compaction stresses to prevent warping and part distortion during downstream operations.
- Binder Burnout: Multi-stage debinding prevents carbon contamination and delivers clean, binder-free metallic structures.
- Structural Softening: Engineered Haitem Furnace thermal curves achieve optimal ductility for efficient secondary sizing and machining.
- Grain Structure Improvement: Promotes uniform grain growth and high sintered density across complex net-shape geometries.
Industrial Annealing Furnace Product Lineup
Haitem Furnace manufactures high-performance thermal processing systems designed to eliminate residual stress, maximize material ductility, and deliver consistent grain uniformity. Whether you require standalone batch units or fully integrated continuous production lines, our engineered systems provide precise thermal control across aerospace, automotive, and heavy industrial manufacturing applications.

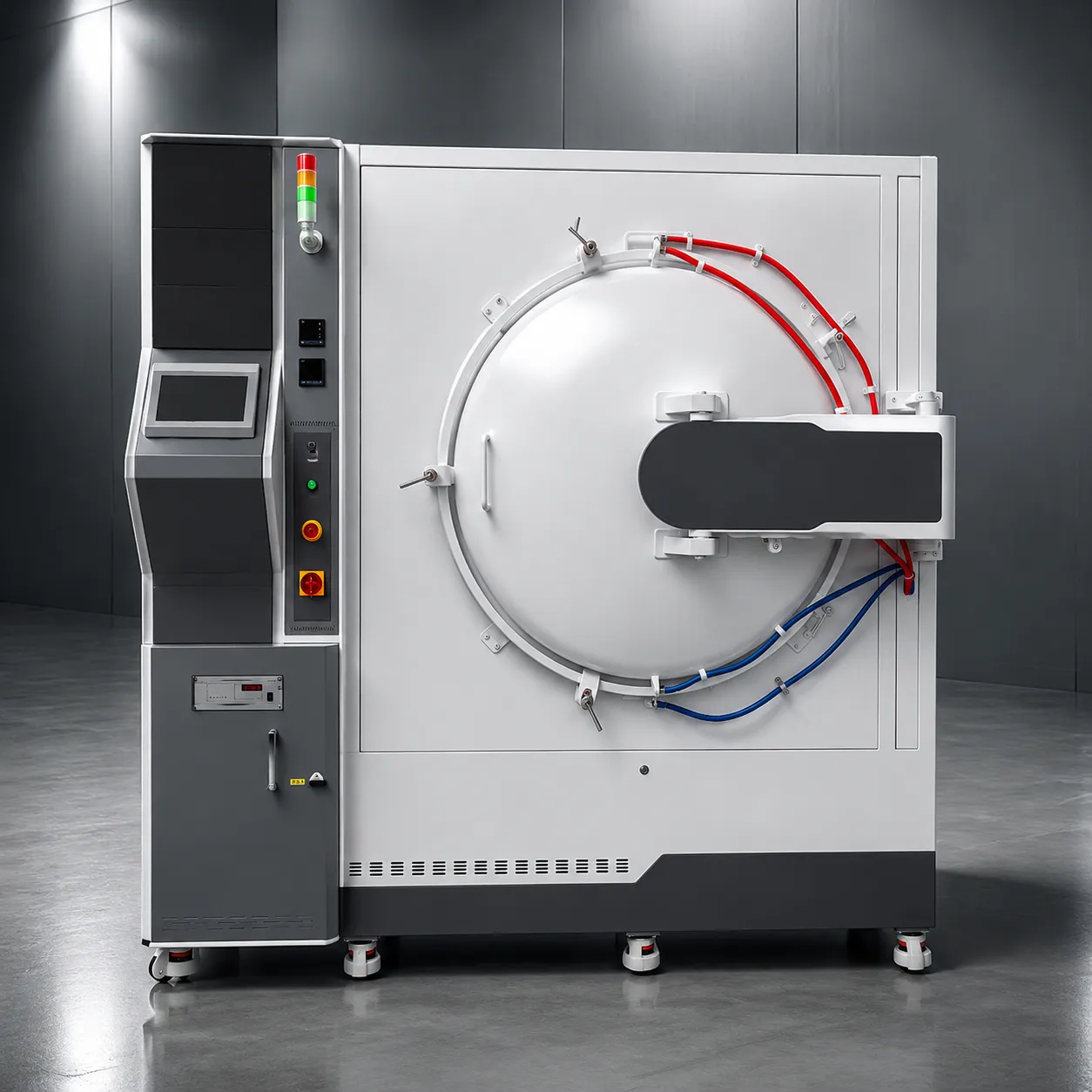

HT-VA Series Zero Oxidation Vacuum Annealing Furnaces
High-vacuum thermal treatment environments engineered to prevent oxidation, decarburization, and surface discoloration. Ideal for high-precision components, aerospace alloys, medical implants, and powder metallurgy parts requiring bright, scale-free surface finishes.
Primary Applications

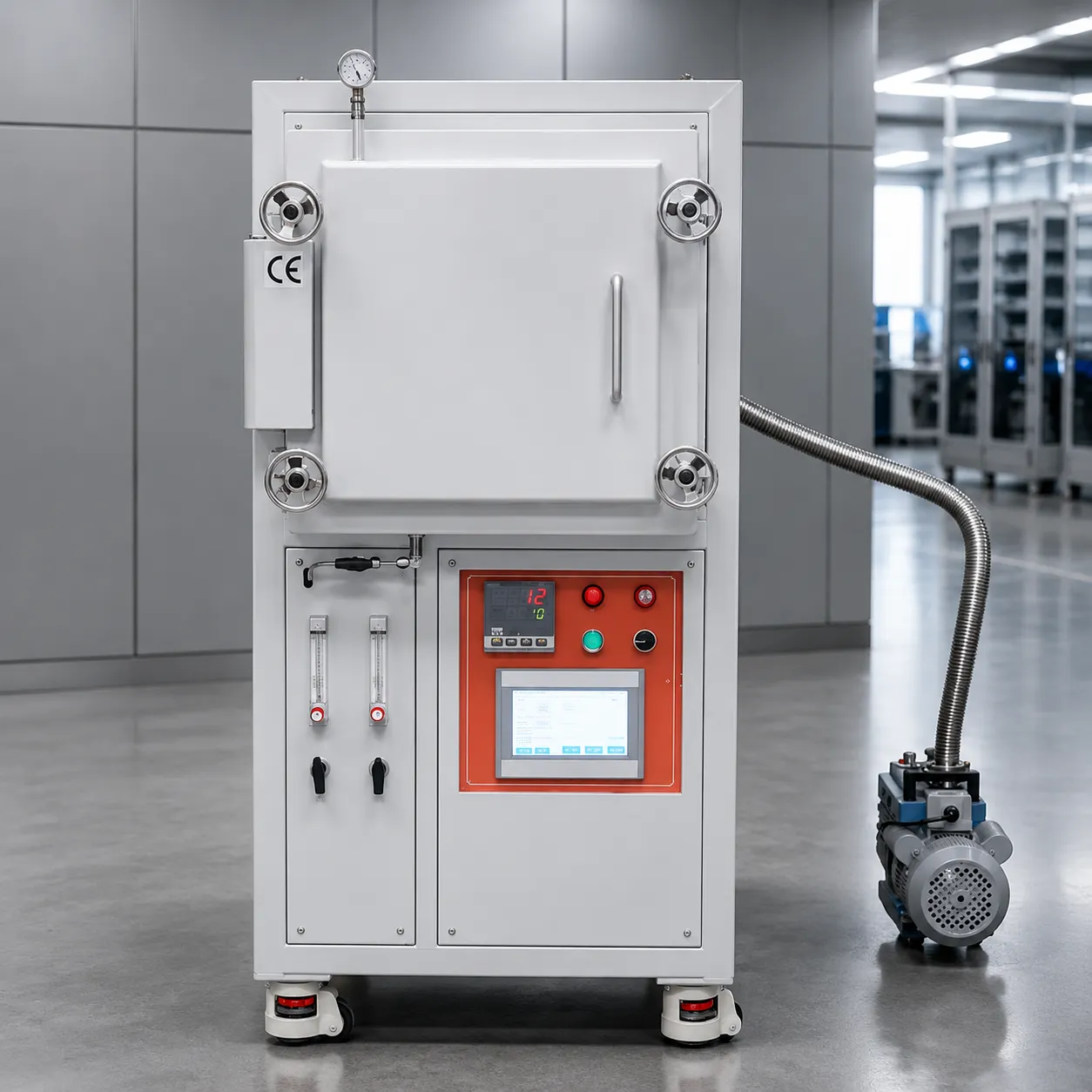

HT-CA Series Inert & Reducing Gas Controlled Atmosphere Annealing Furnaces
Precision protective atmosphere systems utilizing inert (N₂, Ar) and reducing (H₂, Formgas) gas shielding to eliminate scale formation and surface depletion. Built with gastight retorts and automated mass flow control systems for reliable material softening.
Primary Applications

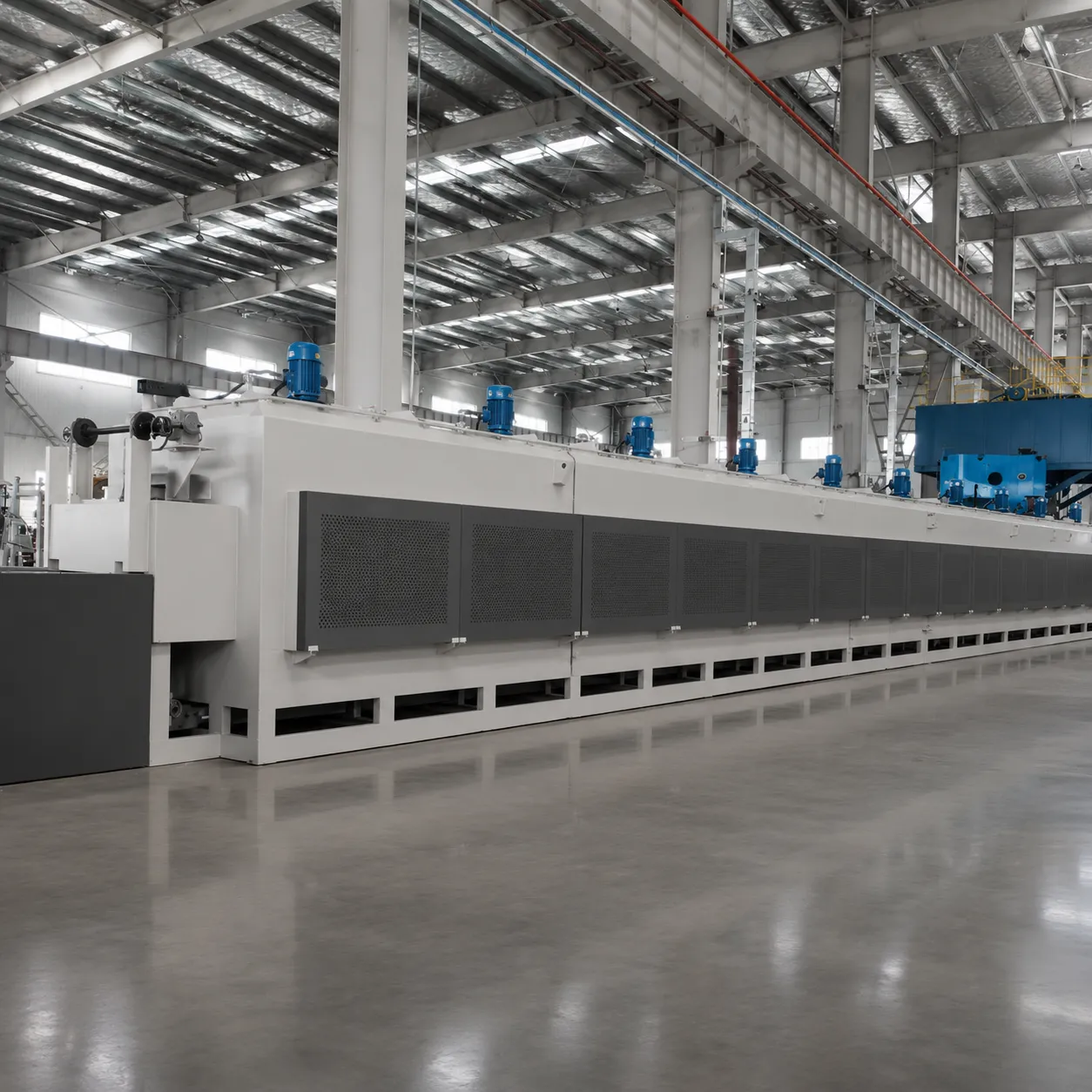

HT-MA Series High Throughput Continuous Mesh-Belt & Roller-Hearth Lines
Automated continuous annealing lines engineered for high-volume manufacturing. Features multi-zone independent heating sections, variable drive speed control, and integrated atmosphere cooling chambers for maximum production yield.
Primary Applications

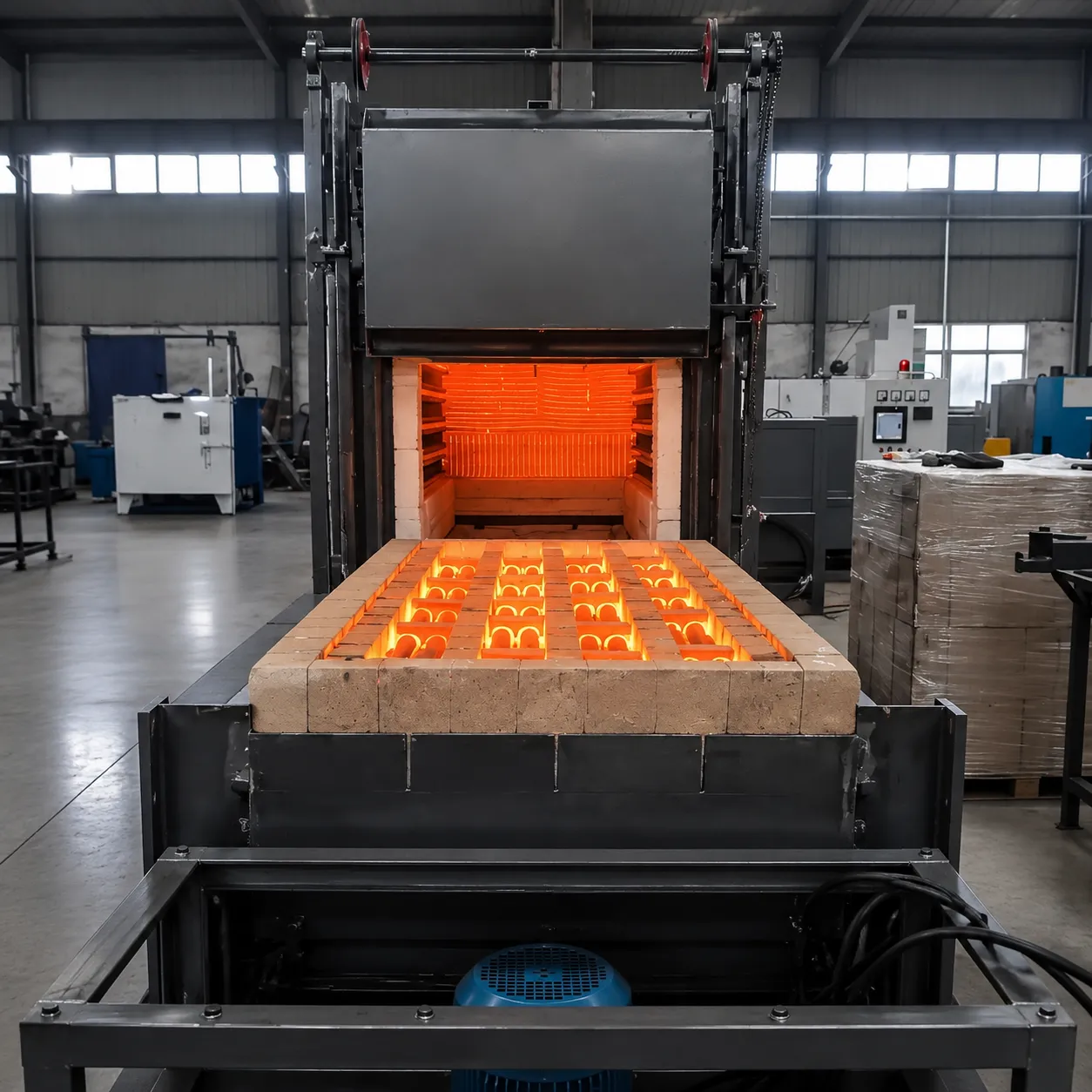

HT-PB Series Heavy Industrial Load Heavy-Duty Pit & Box Annealing Furnaces
Robust batch-processing kilns designed to handle massive forgings, heavy iron castings, structural weldments, and large machinery components. Features reinforced hearth designs and multi-layer ceramic fiber insulation for superior energy conservation. To learn more about our engineering standards, explore our manufacturing-capabilities.
Primary Applications
Engineering Custom Annealing Solutions for Complex Metallurgy
Selecting the ideal vacuum annealing furnace, protective atmosphere furnace, or continuous annealing furnace line requires precise alignment between alloy composition, target throughput, and required surface finish. At Haitem Furnace, our engineering approach balances thermal uniformity, energy consumption, and gas isolation to ensure repeatable metallurgical transformation and stress relief across every products line.
Vacuum vs. Atmosphere Isolation
While a high-performance vacuum annealing furnace evacuates ambient gases to achieve zero surface oxidation on reactive superalloys, a protective atmosphere furnace introduces controlled inert or reducing gas streams (such as N₂, Ar, or H₂ blends) to continuously purge contaminants while supporting higher throughput demands.
Batch vs. Continuous Line Architecture
A continuous annealing furnace system integrates automated conveyors and cooling purge locks to streamline mass production for standardized automotive and industrial components. Conversely, heavy-duty pit and box batch kilns deliver maximal flexibility for extended soak cycles and heavy structural forgings.
Key Engineering Capabilities Across All Haitem Furnace Lines:
- Precision Multi-Zone Heating: Independent PID control loops maintain chamber temperature uniformity as tight as ±3°C, eliminating thermal gradients across high-density workloads.
- Advanced Energy Management: Multi-layer ceramic fiber refractory linings minimize shell radiation losses, reducing operational energy demand by up to 25%.
- Integrated Automation & SCADA: Industrial PLC touchscreens store hundreds of multi-stage thermal profile recipes with complete real-time data logging for quality compliance.
Need Help Sizing Your Annealing Furnace?
Our thermal application engineers provide full technical consultations, chamber dimensioning, and atmosphere selection tailored to your specific production requirements.
Engineering Excellence in Thermal Processing and Precision Control

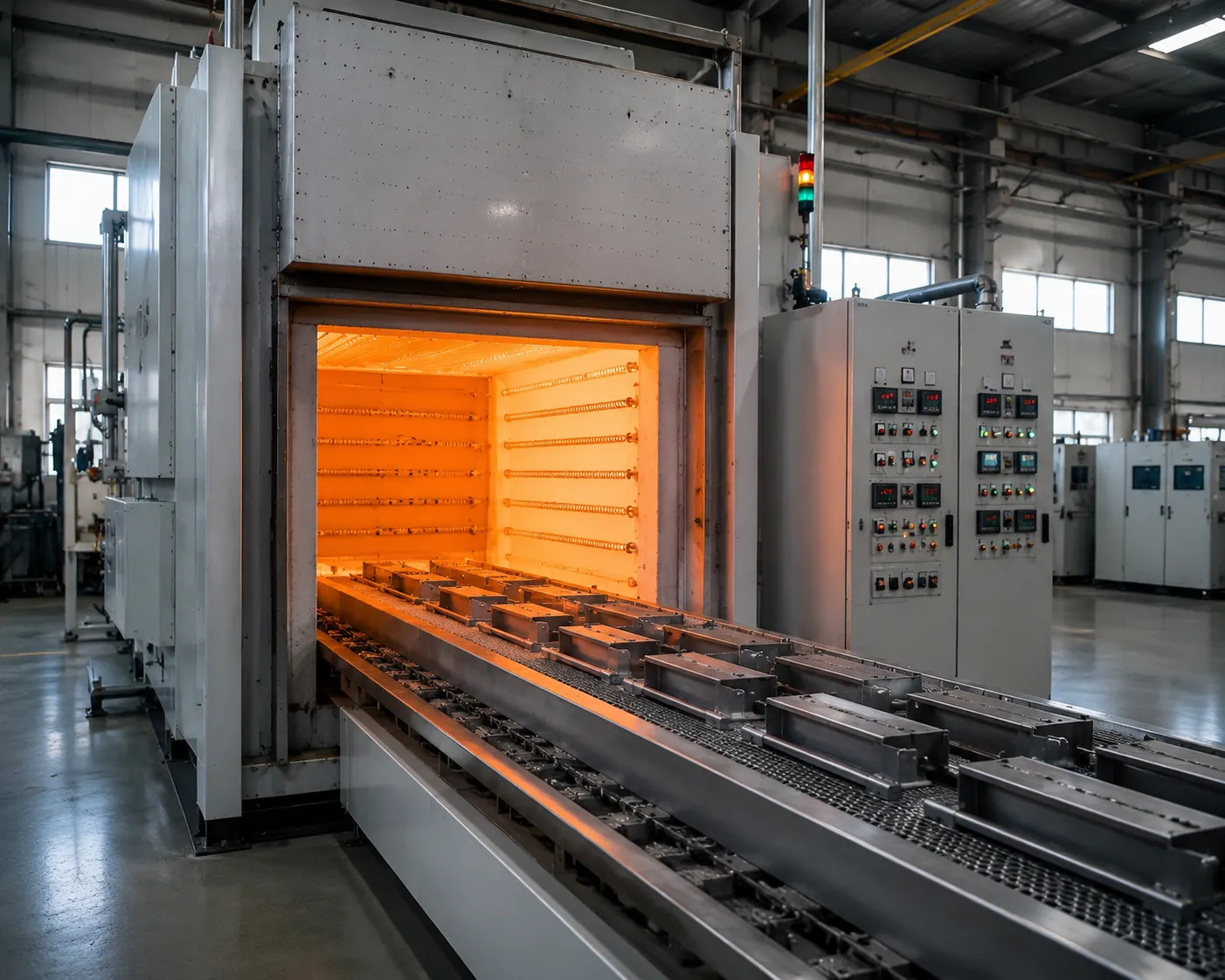

Multi-Zone Precise Temperature Control
Haitem thermal processing equipment utilizes independent multi-zone heating modules paired with SCR power regulation to deliver precise temperature control annealing. By maintaining chamber temperature uniformity within ±3°C to ±5°C, our furnaces guarantee repeatable metallurgical results across every industrial production batch.
- Multi-point thermocouple arrays for closed-loop, real-time temperature regulation
- Independent zone trimming to balance heat loads in large industrial charges
- Elimination of thermal gradients to prevent part distortion and internal stress

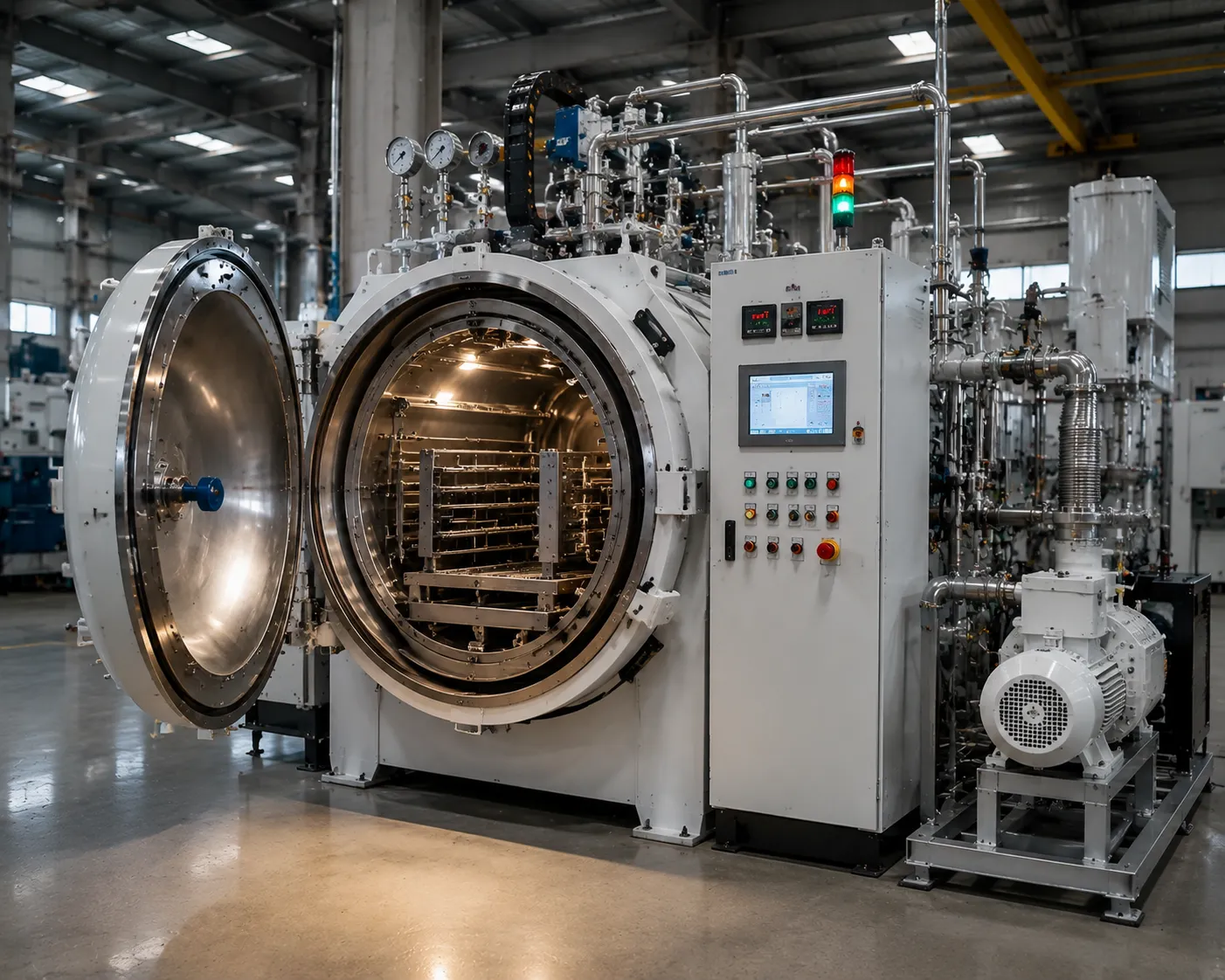

Vacuum Atmosphere Control & Bright Processing
Engineered with mass flow controllers and deep continuous pumping systems, our specialized vacuum furnaces deliver rigorous vacuum atmosphere control. Supporting N₂, Ar, H₂, and cracked ammonia environments, our equipment achieves zero-scale bright annealing without surface oxidation or decarburization.
- Precision gas blending for tailored inert, reducing, or protective atmospheres
- High-vacuum pumping stacks reaching deep vacuum levels to eliminate impurities

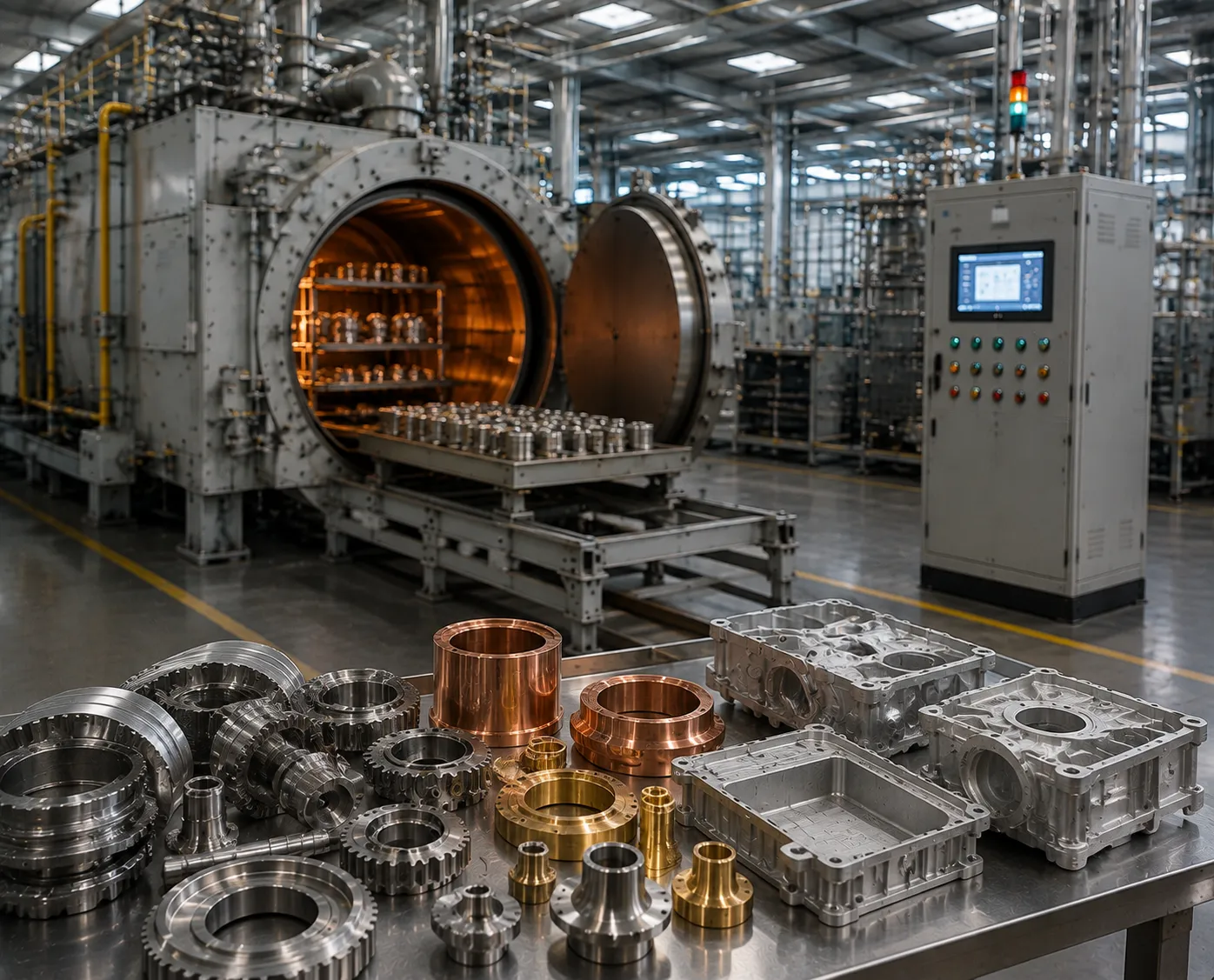

- Mirror-bright surface finishes on stainless steel, copper, and advanced alloys

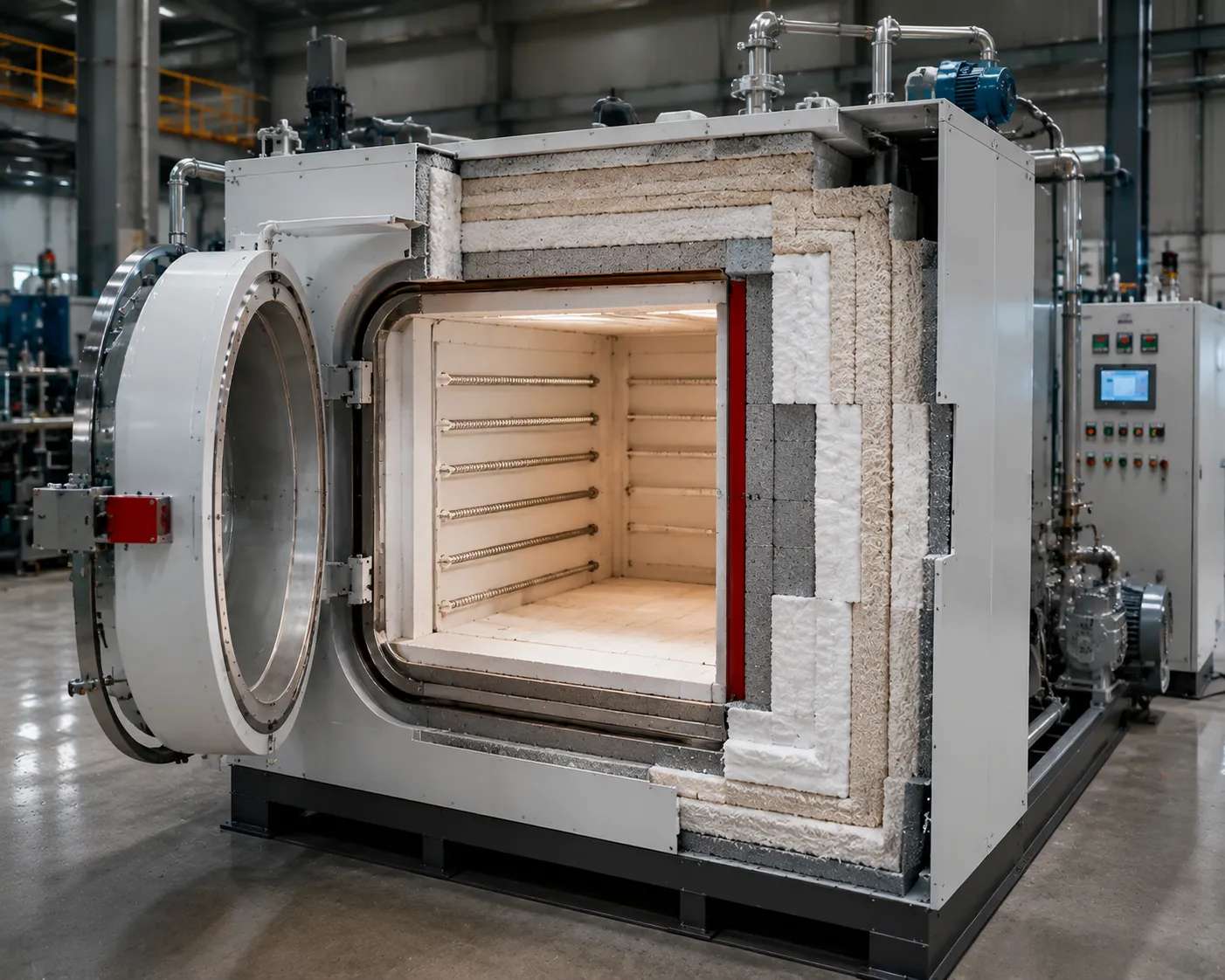

High-Efficiency Thermal Insulation Systems
Constructed with lightweight, multi-layer composite ceramic fiber linings and high-purity refractory materials, Haitem thermal processing equipment minimizes shell heat dissipation. This low thermal mass architecture significantly reduces kilowatt-hour consumption per ton of processed workpieces.
- Ultra-low thermal conductivity linings engineered for maximum heat retention
- Faster thermal ramp-up and cool-down speeds that shorten cycle times
- Cool outer shell temperatures that enhance plant safety and lower HVAC loads

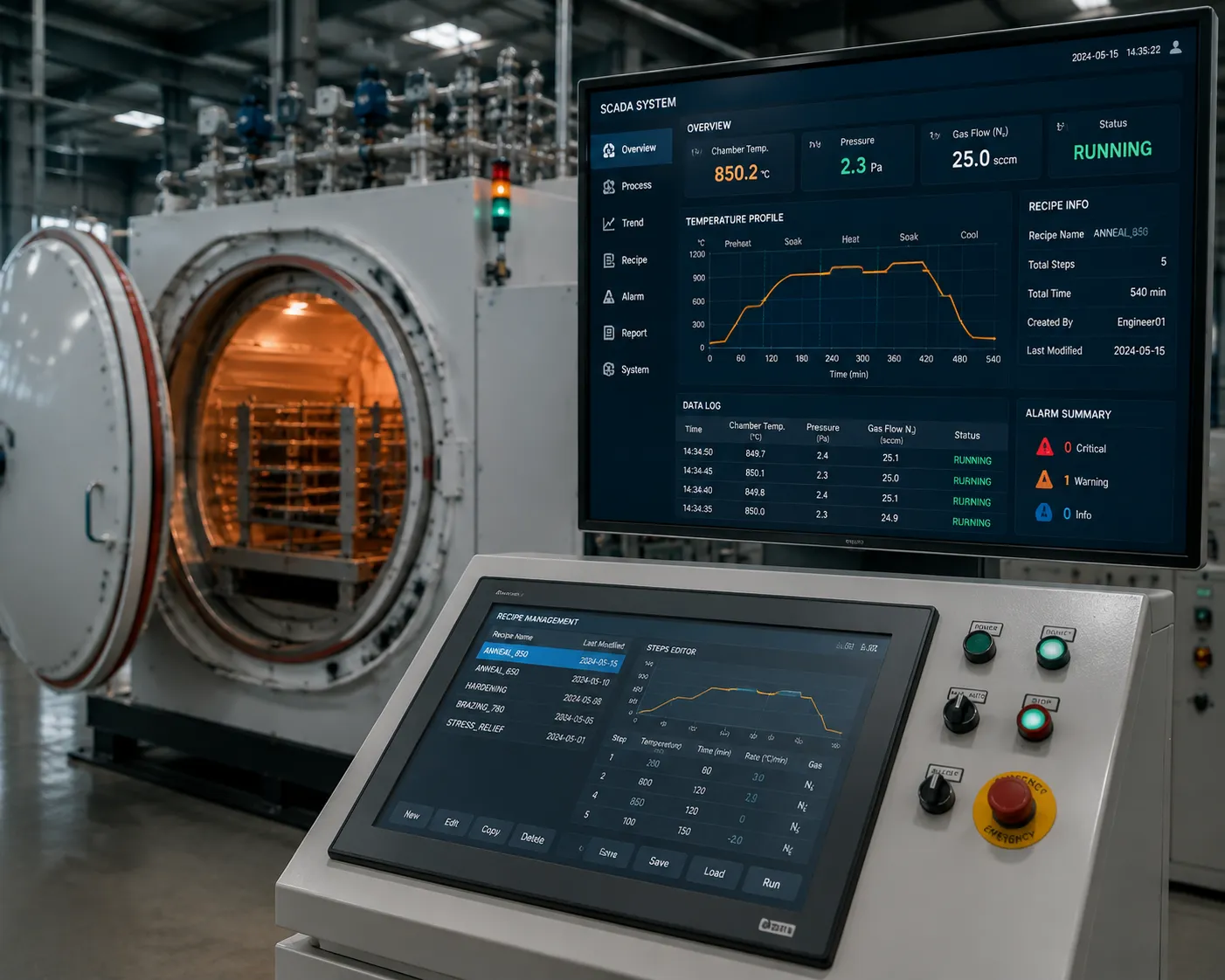

Smart PLC & SCADA Recipe Management
Haitem annealing systems integrate industrial PLC touch interfaces with complete SCADA data logging. System operators can program, store, and execute multi-stage thermal profile curves while logging temperature, pressure, and gas flow rates for audit-ready compliance.
- Stores over 100 customizable multi-ramp heating, soaking, and cooling recipes
- Real-time trend graphing, automated alarm logging, and remote diagnostic access
- Full digital batch traceability supporting AMS 2750 and CQI-9 heat treat standards
Haitem Engineering Performance Benchmarks
±3–5°C
Chamber Temperature Uniformity
100+
Storable Process Recipes
Zero-Scale
Bright Annealing Quality
Up to 30%
Thermal Energy Savings
Leveraging decades of thermal engineering experience and advanced manufacturing capabilities, Haitem Furnace manufactures high-performance annealing equipment tailored to demanding global applications. From single-batch vacuum systems to fully continuous production lines, our furnaces combine precise control, energy efficiency, and long-term operating durability.
Standard Industrial Annealing Furnace Specifications
Compare key heat treatment furnace parameters to streamline your industrial furnace sizing evaluation. Haitem Furnace customizes chamber volumes, heating elements, and cooling rates based on your specific material and throughput goals.
| Furnace Series | Chamber Dimensions (W×H×D) | Max Temperature | Temperature Uniformity | Vacuum / Atmosphere Type | Target Processing Intent |
|---|---|---|---|---|---|
| HT-VA Series High-Vacuum Vacuum Annealing | 400×400×600 mm to 1200×1200×1800 mm | 1300°C (2372°F) | ±3°C (±5.4°F) | High Vacuum (≤ 10-3 Pa) / Inert Gas Backfill | Oxidation-free bright annealing for aerospace superalloys, reactive metals, and high-precision electronic components using advanced vacuum furnaces. |
| HT-CA Series Controlled Atmosphere Line | 600×600×900 mm to 1500×1500×2400 mm | 1100°C (2012°F) | ±5°C (±9.0°F) | Protective Gas (N2 / Ar / Endothermic Gas) | High-volume protective annealing for automotive stampings, non-ferrous tubing, and precision cold-rolled strip steel. |
| HT-MA Series Multipurpose Industrial Furnace | 500×500×750 mm to 2000×2000×3000 mm | 1200°C (2192°F) | ±5°C (±9.0°F) | Nitrogen / Argon / Hydrogen Reducing Atmosphere | Heavy-duty stress relieving, magnetic material treatment, powder metallurgy, and large-scale industrial forgings. |

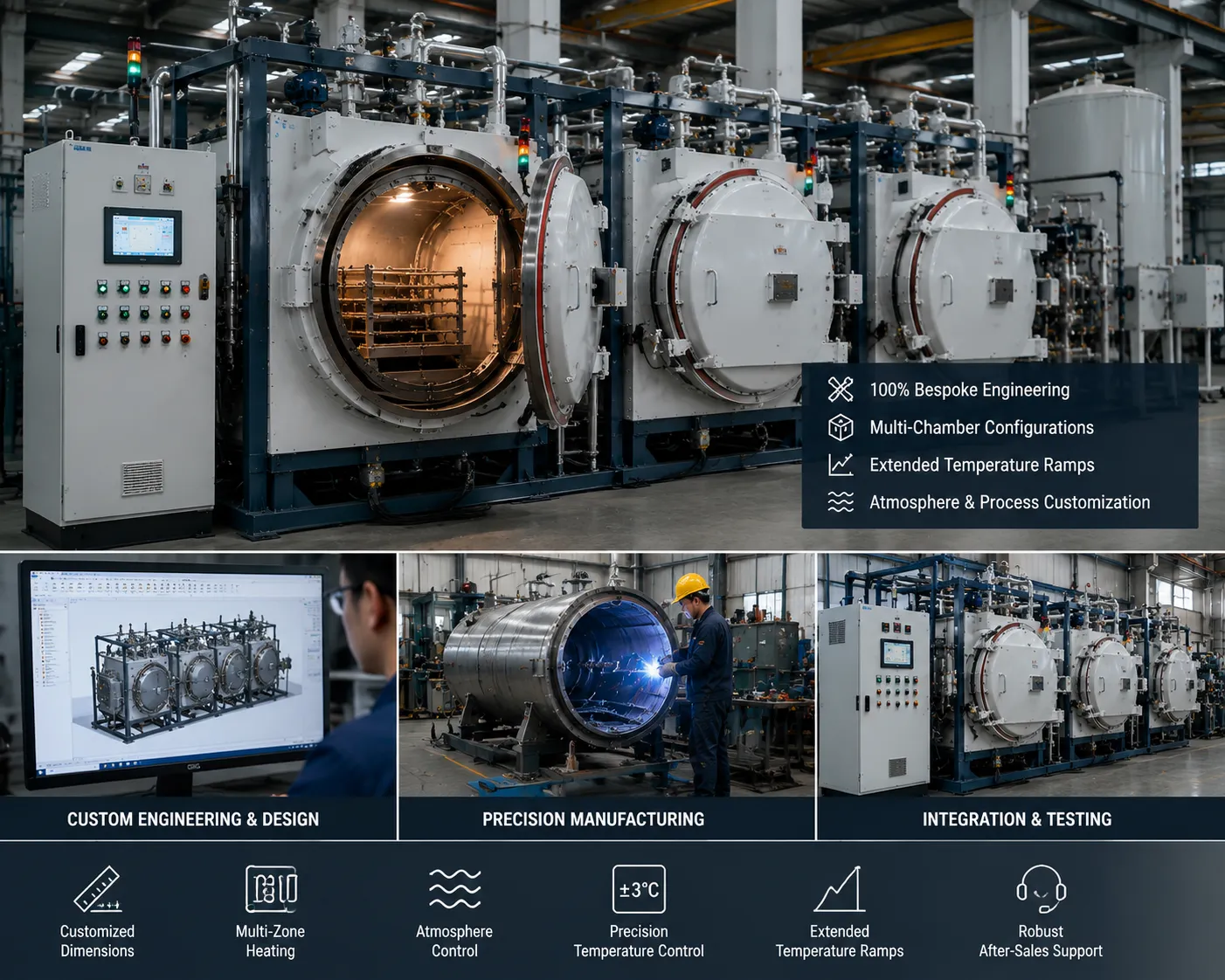

Require specialized dimensions, multi-chamber setups, or extended temperature ramps?
We deliver 100% bespoke equipment engineering, backed by robust manufacturing capabilities. Haitem Furnace modifies annealing furnace specifications, heating zone configurations, and atmospheric controls to match exact customer manufacturing requirements.
World-Class Manufacturing Standards & Quality Assurance
As a premier industrial furnace manufacturer and specialized annealing furnace factory, Haitem Furnace engineers reliable, certified heat treatment equipment for demanding global industrial applications. Learn more about us to see how every thermal processing system undergoes rigorous multi-stage quality assurance before leaving our facility, ensuring uncompromised temperature uniformity, long-term durability, and repeatable metallurgical results.
10,000+ m² Modern Facility
Outfitted with high-precision CNC laser cutting systems, robotic welding workstations, and heavy assembly bays backed by our advanced manufacturing capabilities for large-capacity thermal systems.
International Compliance
Built strictly to ISO 9001 Quality Management standards and European CE Safety Directives to meet stringent international operational requirements.
Rigorous Pre-Shipment Testing
Every unit undergoes 100% full-load thermal state profiling, vacuum leak detection, and control validation prior to factory dispatch for seamless installation.
Global Service & Spare Parts
Comprehensive turnkey installation, field commissioning support, and dedicated lifecycle spare parts availability through our global service network to keep your production running smoothly.
Factory Operations & Official Certifications
Explore our specialized manufacturing floor and international quality standard accreditations.
Advanced Manufacturing Capability
Integrated fabrication, precision machining, welding, assembly, and testing capabilities supporting customized industrial furnace production.
Quality Control System
Comprehensive inspection procedures including material verification, dimensional checks, leak testing, and performance validation.
Custom Engineering Support
Application engineering, thermal process optimization, layout design, and turnkey furnace integration support.
Global Technical Service
Professional installation, commissioning, remote support, and spare parts services for customers worldwide.
Zero-Defect Quality Assurance Standard
Prior to factory dispatch, every Haitem furnace undergoes full-load thermal simulation, helium leak testing, and multi-zone PID control validation. We guarantee turn-key operational reliability, fast commissioning times, and complete confidence for critical thermal processing applications.
Frequently Asked Questions About Industrial Annealing Furnaces
Get authoritative technical insights into metal heat treatment processes, atmosphere control options, equipment selection criteria, and custom thermal processing solutions from Haitem Furnace.
01 What is the primary difference between stress relief annealing and recrystallization annealing, and which system is required?
While both thermal processes aim to enhance material ductility and dimensional stability, they target distinctly different metallurgical transformations within the metal heat treatment process:
- Stress Relief Annealing: Carried out at subcritical temperatures (typically 500°C to 650°C / 930°F to 1200°F for carbon and alloy steels). The core goal is to eliminate internal residual stresses created by heavy machining, welding, casting, or cold forming without altering the underlying phase composition or original grain boundaries.
- Recrystallization Annealing: Performed at higher temperatures (600°C to 750°C / 1110°F to 1380°F+ depending on cold-work levels), where deformed grains nucleate and transform into new, strain-free equiaxed grains. This process fully restores material ductility, eliminates strain hardening, and prepares stock for further heavy deformation.
Furnace System Selection: Heavy structural weldments, large castings, or forged shafts can be processed cost-effectively in batch systems such as our HT-PB Series Heavy-Duty Box & Pit Annealing Furnaces. However, if your recrystallization process demands bright, oxide-free surface conditions with zero decarburization (e.g., electronic copper strip, stainless wire, or medical tubing), an HT-VA Vacuum Furnaces or HT-MA Continuous Mesh-Belt Line is necessary.
02 When should I choose a vacuum annealing furnace over a protective atmosphere furnace?
Choosing between vacuum annealing vs atmosphere annealing comes down to alloy chemical reactivity, surface finish standards, throughput requirements, and total cost of ownership:
Choose Vacuum Annealing Furnaces When:
- Processing reactive or refractory metals (Titanium, Tantalum, Zirconium) highly susceptible to embrittlement from oxygen or nitrogen.
- Mirror-bright, pristine surface finishes are required with guaranteed zero surface oxidation or decarburization.
- Outgassing or vacuum degassing of trapped hydrogen is essential for critical aerospace or medical alloys.
- High-value, intricate parts demand absolute batch-to-batch repeatability and clean processing chambers.
Choose Protective Atmosphere Furnaces When:
- High-volume continuous manufacturing is required (e.g., mesh-belt, pusher, or roller-hearth continuous lines).
- Lower initial investment and reduced cycle times take priority for standard industrial metals.
- Processing copper coils, brass fittings, or carbon steel stock under nitrogen/hydrogen protective gas covers.
- Massive production tonnage makes large vacuum vessel volumes cost-prohibitive.
Haitem Furnace application engineers help buyers evaluate lifecycle costs, production volume goals, and metallurgical specs to select the most cost-effective equipment configuration. Learn more about us and our thermal engineering expertise.
03 What shielding gases can be utilized within Haitem atmosphere annealing furnaces?
Haitem controlled atmosphere annealing furnaces feature custom-engineered gas mixing and delivery panels with digital mass flow controls capable of handling single or multi-component gas blends:
Safety System Integration: For operations using hydrogen or flammable atmosphere mixtures, Haitem equips every system with automated nitrogen purge interlocks, dew-point monitoring, automatic ignition flares, oxygen sensor loops, and fail-safe explosion-proof shutoff valves.
04 What factors affect the annealing furnace price, lead times, and on-site installation support?
The overall annealing furnace price and manufacturing lead times depend on key variables including working chamber volume, maximum operating temperature, vacuum pumping package performance, atmosphere automation level, and material handling systems:
- Standard Industrial Furnaces: Typically 8 to 12 weeks from engineering sign-off to pre-shipment factory acceptance testing (FAT).
- Custom Engineered Systems & Continuous Lines: Typically 14 to 20 weeks for comprehensive 3D mechanical modeling, high-vacuum system assembly, multi-zone PLC programming, and full thermal testing.
Turnkey Global Installation: Haitem offers complete global-service support. Our commissioning engineers handle field installation supervision, utility line hookups, Site Acceptance Testing (SAT), temperature uniformity calibration, and comprehensive hands-on training for operators and maintenance personnel.
05 How does Haitem ensure temperature uniformity across large furnace workloads?
Precise temperature uniformity prevents inconsistent hardness levels, warping, and uneven grain growth across heavy furnace loads. Haitem achieves thermal uniformity as tight as ±3°C to ±5°C through four core engineering features:
- Multi-Zone Heating Controls: Independently governed heating zones powered by SCR thyristor power controllers automatically adjust output to offset thermal loss near doors, walls, and corners.
- Forced Gas Recirculation Fans: In atmospheric models, high-temperature convection blowers continuously circulate protective gases throughout the charge space to maximize forced convection heat transfer.
- Composite Ceramic Fiber Insulation: Multi-layer ceramic fiber and vacuum-formed linings lower thermal conductivity, eliminating cold spots and sharply reducing energy usage.
- Pyrometry Standards Compliance: All systems are designed and calibrated to meet stringent AMS 2750G and CQI-9 pyrometry standards for aerospace and automotive thermal processing.
Have a specific process question not answered here?
Speak directly with our thermal engineering team for custom process development, equipment sizing, or detailed technical proposals.
Optimize Your Industrial Heat Treatment Operations
Contact Haitem Furnace thermal engineers today to receive a comprehensive technical proposal, furnace sizing consultation, and factory-direct quotation.
Whether you require an immediate annealing furnace quote or a fully custom thermal processing solution built for rigorous industrial standards, our engineering team delivers high-performance, energy-efficient equipment tailored to your exact production parameters.
