Precision Engineering & High-Performance Thermal Metrics
Leveraging decades of thermal engineering expertise, Haitem Furnace delivers high-precision tempering solutions and advanced vacuum furnaces that guarantee uniform heat distribution, exceptional mechanical toughness, and consistent batch-to-batch metallurgical quality.
Chamber Uniformity
Multi-zone independent PID controls maintain tight thermal stability across the entire hot zone.
Cost Savings
Advanced composite ceramic fiber insulation significantly minimizes standby energy loss.
Standard Compliance
Fully compliant smart PLC system with automated multi-stage curve recording and traceability.
Embrittlement Protection
Engineered rapid cooling and protective atmosphere controls mitigate temper brittleness risk.
Multi-Zone Independent PID Control
Independent multi-zone PID temperature management maintains chamber uniformity within ±3°C, eliminating thermal gradients and ensuring predictable hardness and stress relief.
Temper Embrittlement Prevention
Integrated protective atmosphere circuits and optimized forced-cooling cycles effectively prevent Class II temper embrittlement in sensitive alloy steels.
Composite Ceramic Fiber Insulation
High-density composite ceramic fiber linings reduce thermal loss and furnace shell temperatures, lowering energy consumption by over 20% during continuous runs.
Smart PLC & AMS 2750F Compliance
Intuitive PLC touchscreen interface supports multi-segment heating recipes, automated alarm monitoring, and full AMS 2750F-compliant data logging backed by our quality certifications for seamless auditing.
Built for continuous heavy-duty industrial processing with rigorous thermal accuracy and maximum uptime reliability.

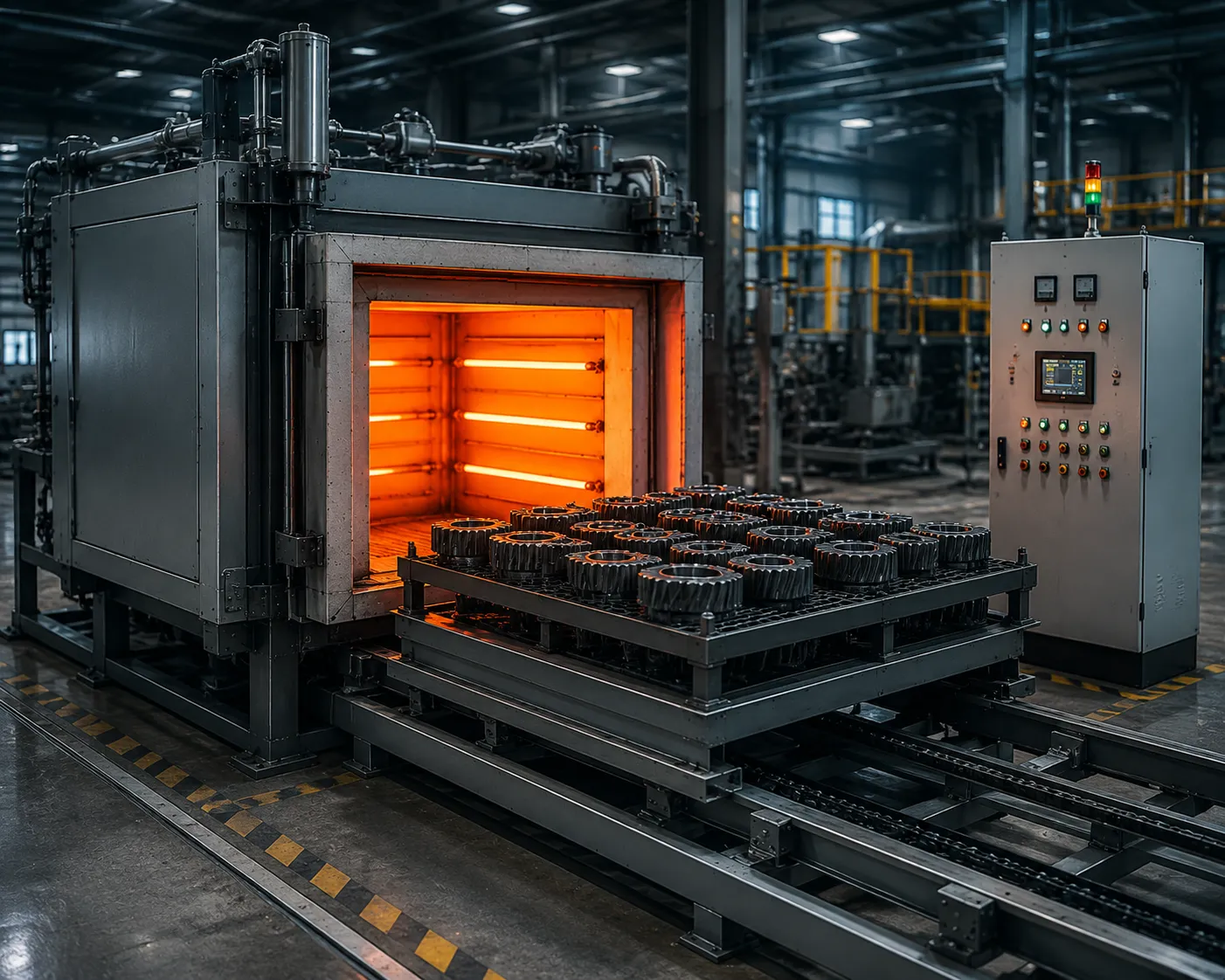

Tempering Furnace Subtypes & Operating Principles
Haitem Furnace engineers versatile tempering systems tailored to precise metallurgical requirements—delivering exact temperature uniformity across low, medium, high, and atmosphere-controlled thermal processes.
Low-Temperature Tempering Furnaces
Designed for critical stress relief following initial hardening operations while maintaining maximum surface hardness and dimensional stability.
- Key Applications: High-carbon steels, bearing components, tool steels, and carburized gears.
- Primary Purpose: Relieves internal quenching stresses while retaining peak core hardness.
- Air Convection: High-velocity forced air recirculation maintains tight temperature uniformity throughout dense workloads.
Medium & High-Temperature Furnaces
Optimized for comprehensive quench-and-temper (Q&T) processing to achieve ideal mechanical strength, ductility, and fatigue resistance.
- Key Applications: Coil springs, structural steel parts, heavy forgings, and alloy drive shafts.
- Primary Purpose: Transforms brittle martensite into tempered sorbite for balanced toughness and yield strength.
- Thermal Control: Multi-zone heating control maintains precise thermal soak profiles across large batch volumes.
Vacuum & Protective Atmosphere Furnaces
Engineered to eliminate surface oxidation, scaling, and decarburization during high-value precision thermal processing.
- Key Applications: Precision stamping dies, aerospace components, medical tools, and delicate molds.
- Primary Purpose: Preserves surface chemistry to deliver clean, bright, and scale-free heat-treated parts.
- Atmosphere Options: Nitrogen, Argon, or high-vacuum chamber options tailored to material sensitivity.
Tailored Thermal Systems Built for Precise Process Control
Haitem configures every tempering furnace to match your exact production throughput and metallurgical criteria. Integrating multi-zone PID controllers, forced convection airflow, and high-efficiency ceramic fiber insulation, our systems minimize energy consumption while ensuring AMS 2750F process compliance.

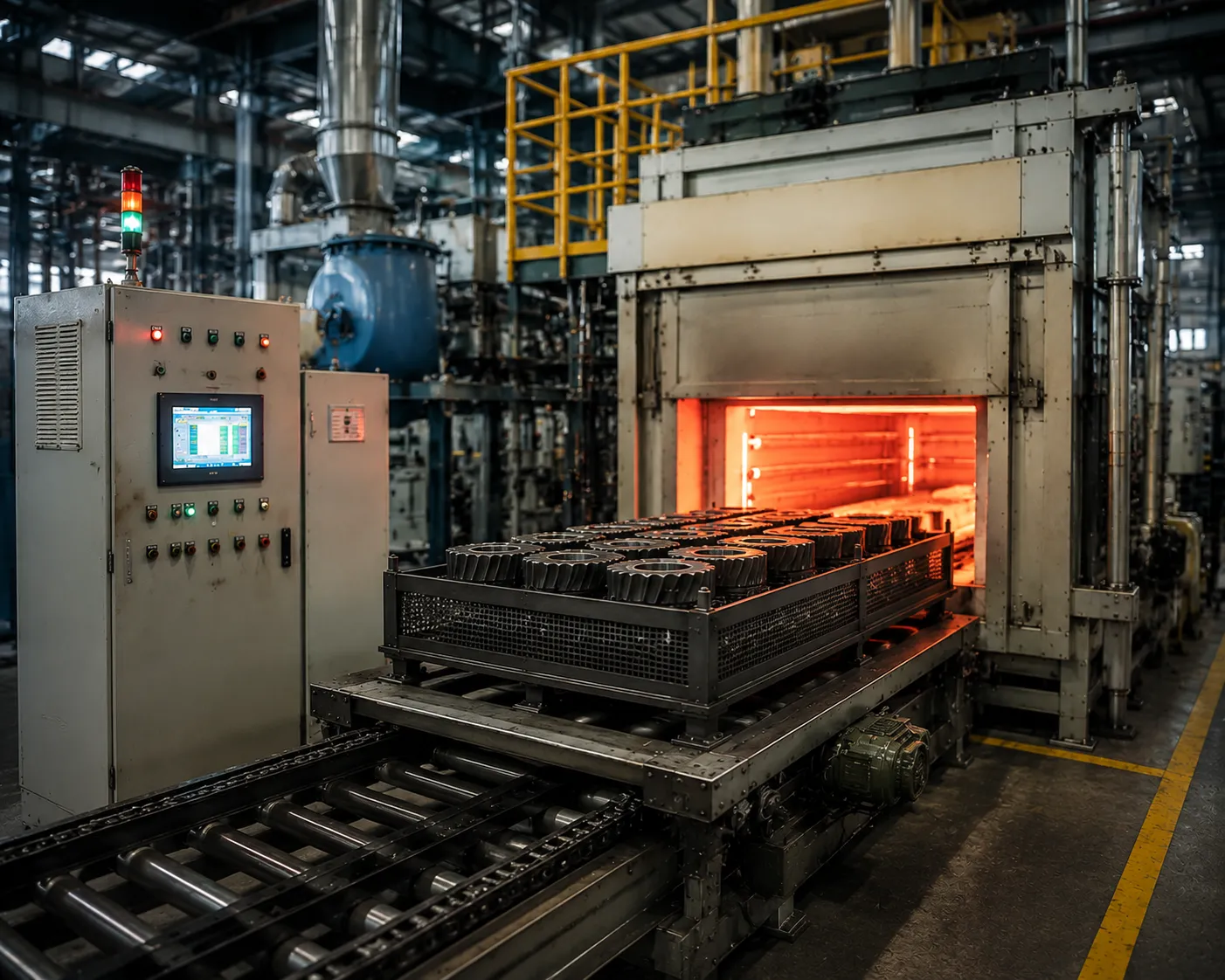

Quench & Temper Process Flow and Industrial Applications
From high-volume automotive fasteners to heavy-duty wind turbine gears, Haitem Furnace engineers customized tempering solutions that optimize metallurgical toughness and structural reliability across demanding manufacturing industries.
Immediate Controlled Tempering Post-Quenching
Immediate, precision-controlled tempering directly following quenching is vital for high-stress components. Rapid thermal stabilization converts brittle untempered martensite into stable microstructures while relieving internal stresses.
Relieves quench-induced internal stress before micro-fissures develop during cooling cycles.
Refines grain structures to maximize impact strength and mechanical durability.
Industry Applications & Equipment Configurations
Engineered furnace systems designed to meet distinct metallurgical standards, throughput demands, and geometric requirements.
Automotive Fasteners & Mass Production
High-volume continuous mesh belt tempering lines deliver rapid, uniform convection heating to ensure consistent hardness and mechanical performance across mass-produced automotive parts backed by our advanced manufacturing-capabilities.
Precision Tooling & Tool Steel Molds
Batch and vacuum-furnaces provide high temperature uniformity and oxidation-free protective atmospheres required for complex dies, high-speed steel tools, and mold inserts.
Powder Metallurgy & Post-Sintering
Specialized post-sintering stress relief cycles enhance mechanical density, restore ductility, and prevent thermal distortion in high-density sintered structural components.
Heavy Machinery & Wind Power Gears
Large-capacity pit and box tempering furnaces handle heavy industrial gear rings, shafts, and castings, ensuring deep thermal penetration and precise stress relief.
Engineered Industrial Tempering Solutions
From automotive fasteners to aerospace components, Haitem Furnace designs custom thermal processing systems tailored to your exact metallurgical specifications.
Technical Specifications & Selection Guide
Haitem Furnace provides transparent technical specifications and engineering data to help you select, configure, and integrate the ideal tempering equipment for your heat treatment line. Learn more about-us and our dedication to industrial heat treatment excellence.
Comprehensive Technical Parameters
Key dimensions, thermal controls, and payload limits engineered to meet demanding metallurgical standards.
Chamber Dimensions
Customizable effective hot-zone volumes up to 3,000 mm in length with reinforced hearths for heavy charges.
Rated Temperature
Operational temperatures up to 750°C with precision multi-zone PID control maintaining accuracy to ±1°C.
Atmosphere Type
Versatile atmosphere controls configured for air convection, nitrogen or argon shielding, or high-vacuum processing.
Loading Capacity
Heavy-duty structural loading capacities engineered for batch processing weights from 500 kg to 15 tons.
Selection Decision Matrix
Match production throughput, atmospheric protection, and surface quality requirements with the right tempering furnace topology, optimized through our advanced manufacturing-capabilities.
| Decision Criteria | Batch Tempering Furnace | Continuous Tempering Line | Vacuum & Protective Atmosphere |
|---|---|---|---|
| Production Throughput | Medium-to-large batch loads with flexible thermal cycles for mixed parts | High-volume continuous output tailored for inline mass production | Controlled cycle volumes dedicated to critical precision components |
| Atmosphere Requirement | Standard forced-air recirculation or periodic inert gas purging | Continuous gas curtains or sealed multi-zone protective gas flow | High vacuum or high-purity inert gas (N₂/Ar) backfilling |
| Surface Quality Target | Standard industrial surface finish with light oxidation | Consistent surface quality with minimized scaling across large volumes | Bright, oxide-free surface finish eliminating post-process cleaning |
| Thermal Uniformity | ±3°C to ±5°C across multi-zone chamber volumes | ±3°C throughout heating zones via forced convection | ±1°C to ±3°C high-precision uniform radiant heating |
Customizable Engineering Options
Modular options engineered to integrate seamlessly into your thermal processing workflow, including advanced vacuum-furnaces systems.
Automated Loading Systems
Pneumatic pushers, motorized roller hearths, and overhead charging mechanisms that eliminate manual handling risks and optimize cycle efficiency.
Rapid Cooling Modules
High-velocity forced gas recirculation and targeted cooling fans designed to accelerate cooling rates and prevent temper brittleness.
Exhaust Gas & Fume Treatment
Integrated oil-mist collectors and exhaust scrubbers to safely manage off-gas emissions and satisfy environmental safety regulations.
Custom Integration
Tailored furnace dimensions and modular options engineered for your production facility.
Require Detailed CAD Models or Technical Support?
Haitem Furnace offers full engineering transparency. Access detailed 3D CAD models, electrical schematics, and custom parameter evaluations tailored to your project.
Manufacturing Capabilities & Certified Quality
As an ISO-certified industrial furnace manufacturer, Haitem Furnace combines modern production infrastructure with stringent quality standards to support continuous, high-performance thermal operations for every customer worldwide. Learn more about our specialized manufacturing capabilities and facility footprint.

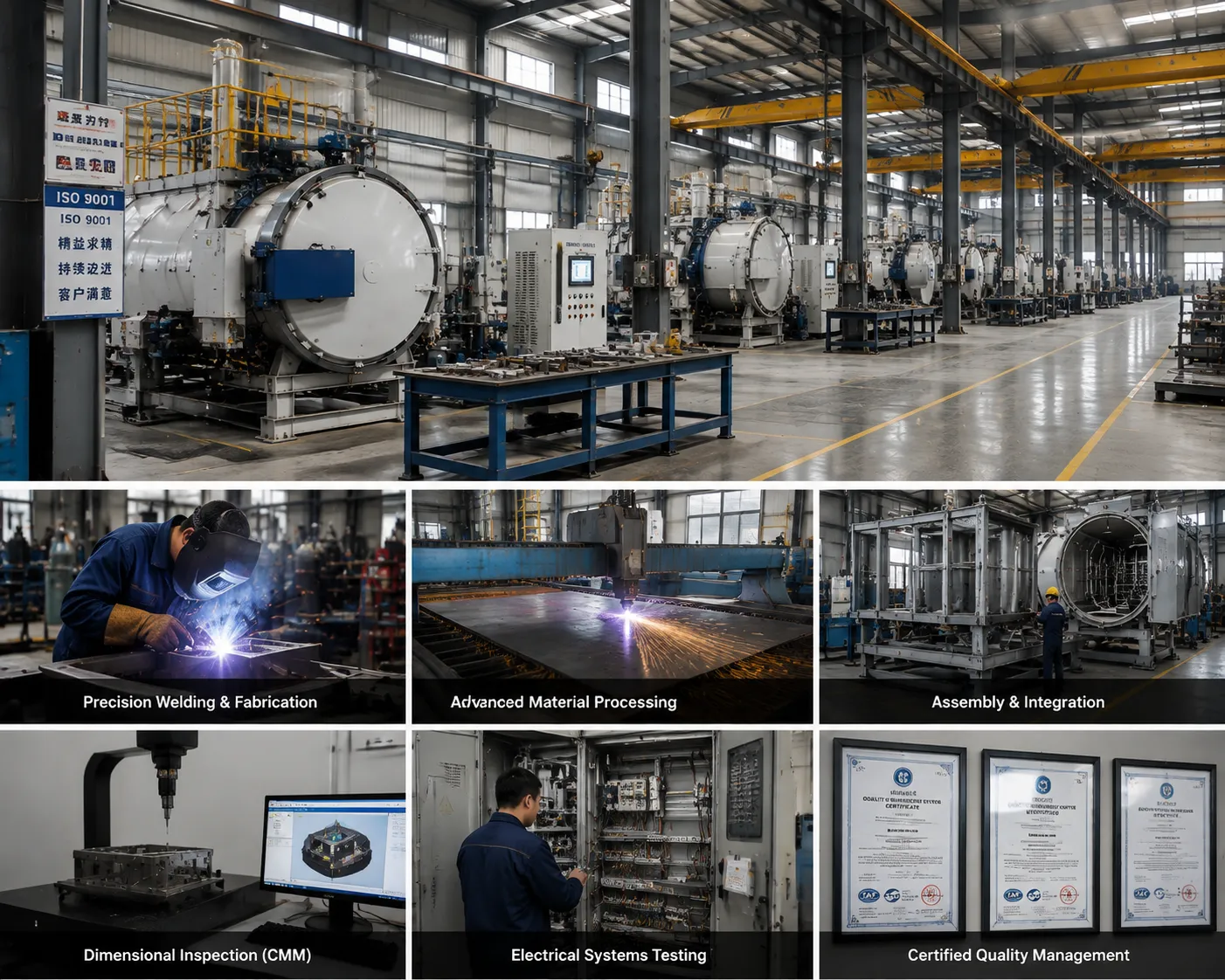

15,000+ m² Modern Industrial Manufacturing Facility
Our specialized industrial furnace factory features heavy CNC machining suites, streamlined assembly lines, and dedicated testing bays. Every tempering furnace undergoes complete pre-shipment thermal uniformity and operational testing prior to delivery.
Turnkey Installation & Lifetime Technical Backup
We deliver turnkey installation assistance, routine pyrometry calibration support, and round-the-clock technical guidance to maximize uptime across global production lines.
Facility Overview
Machining, Assembly, and Thermal Testing Bays
Heat Treatment Quality Standards & Safety Compliance
Haitem Furnace systems align strictly with international quality, safety, and pyrometry benchmarks.
ISO 9001:2015
Certified quality management framework standardizing precision fabrication, quality control, and continuous system refinement.
CE Safety Standards
Compliant with European mechanical and electrical directives ensuring dependable operating safety across global processing plants.
CQI-9 Standard
Engineered to satisfy AIAG CQI-9 heat treat system guidelines for high-integrity automotive component manufacturing.
AMS 2750F Pyrometry
Precise sensor calibration and tight thermal uniformity control matching stringent aerospace processing specifications.
Explore Custom Industrial Heat Treatment Systems
Discover our full range of certified industrial furnaces, automated material handling, and dedicated technical support solutions engineered for long-term reliability.
Tempering Furnace Technical & Procurement FAQs
Get expert insights on CQI-9 and AMS 2750F compliance, protective atmosphere selection, manufacturing lead times, and global service support.
How is temperature uniformity guaranteed to meet CQI-9 and AMS 2750F standards?
Haitem Furnace equips every tempering system with multi-zone PID temperature control, high-velocity forced convection circulation, and low-thermal-mass insulation to ensure chamber temperature uniformity within ±3°C (±5°F).
Before dispatch, our engineers conduct full Thermal Uniformity Surveys (TUS) and System Accuracy Tests (SAT) under load conditions, providing complete validation documentation backed by our strict quality-certifications for automotive and aerospace quality audits.
When should we choose protective atmosphere tempering over standard air tempering?
Select protective atmosphere tempering (using nitrogen, argon, or vacuum purging) when heat treating finished components, tool steels, or precision parts where surface scaling and decarburization must be entirely eliminated.
Choose standard air tempering for rough-machined parts, forgings, or structural components where minor surface oxidation is acceptable, providing lower initial capital investment and reduced operating costs.
What are the typical production lead times for standard and custom furnace models?
Standard batch tempering furnaces (including box and pit furnace configurations) carry a manufacturing lead time of approximately 8 to 12 weeks from technical sign-off.
Fully customized continuous mesh belt lines, automated heat treatment cells, or specialized vacuum-furnaces systems require 16 to 24 weeks for engineering design, assembly, and pre-shipment testing.
What field installation, commissioning, and global aftermarket support do you provide?
Our certified field service engineers provide end-to-end installation supervision, site commissioning, system integration, and hands-on operator training tailored to your production workflow.
For ongoing reliability, Haitem offers comprehensive global-service support, including 24/7 remote diagnostic assistance, rapid OEM spare parts dispatch, and scheduled preventive maintenance agreements.

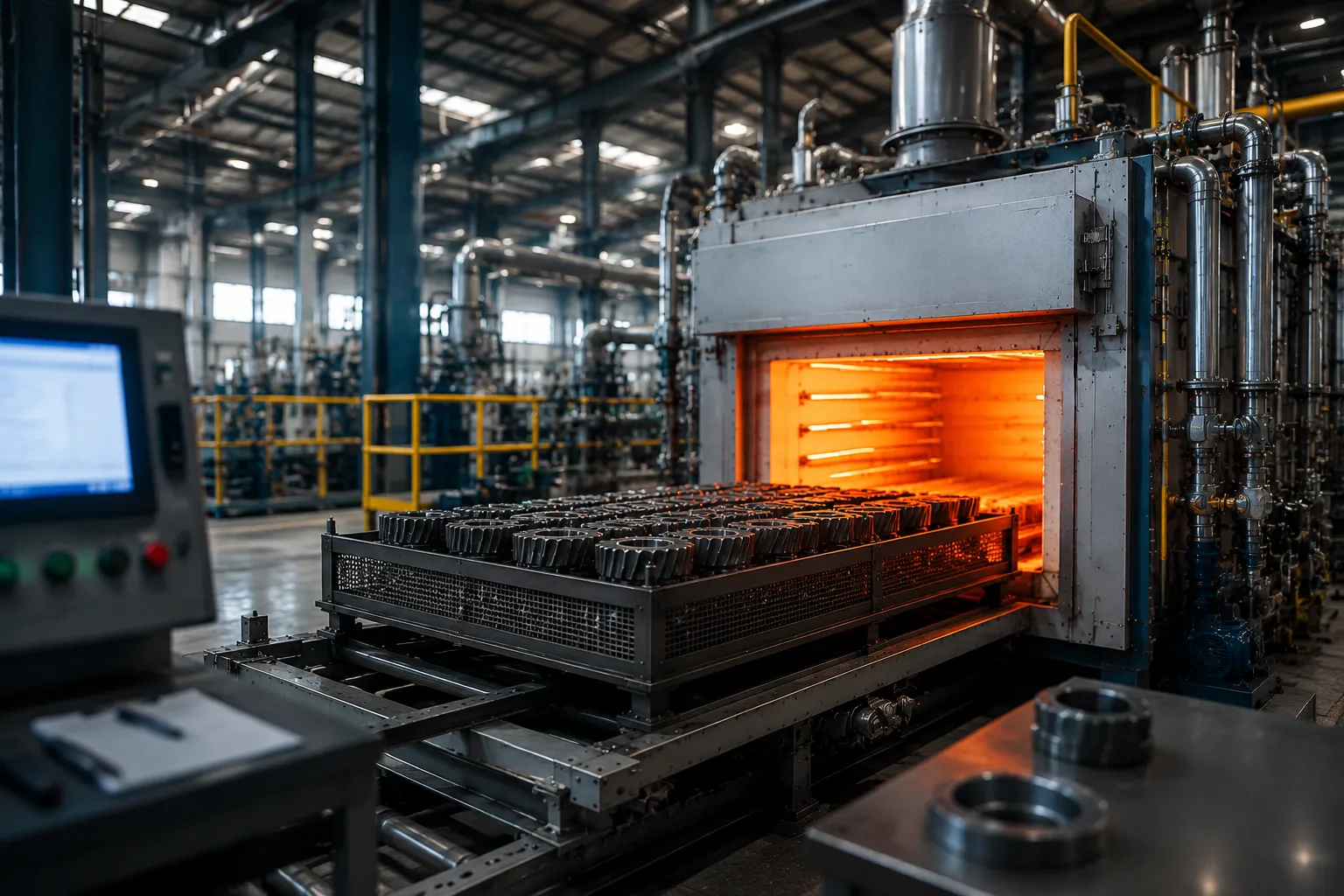

Haitem Engineering Consulting
Need tailored advice on furnace sizing, atmosphere selection, or cycle optimization? Our thermal engineers are available to review your specifications and build custom solutions.
Ready to Build Your Advanced Heat Treatment Solution?
Work with Haitem Furnace engineers to develop a customized thermal processing system designed around your materials, production requirements, and metallurgical objectives.
