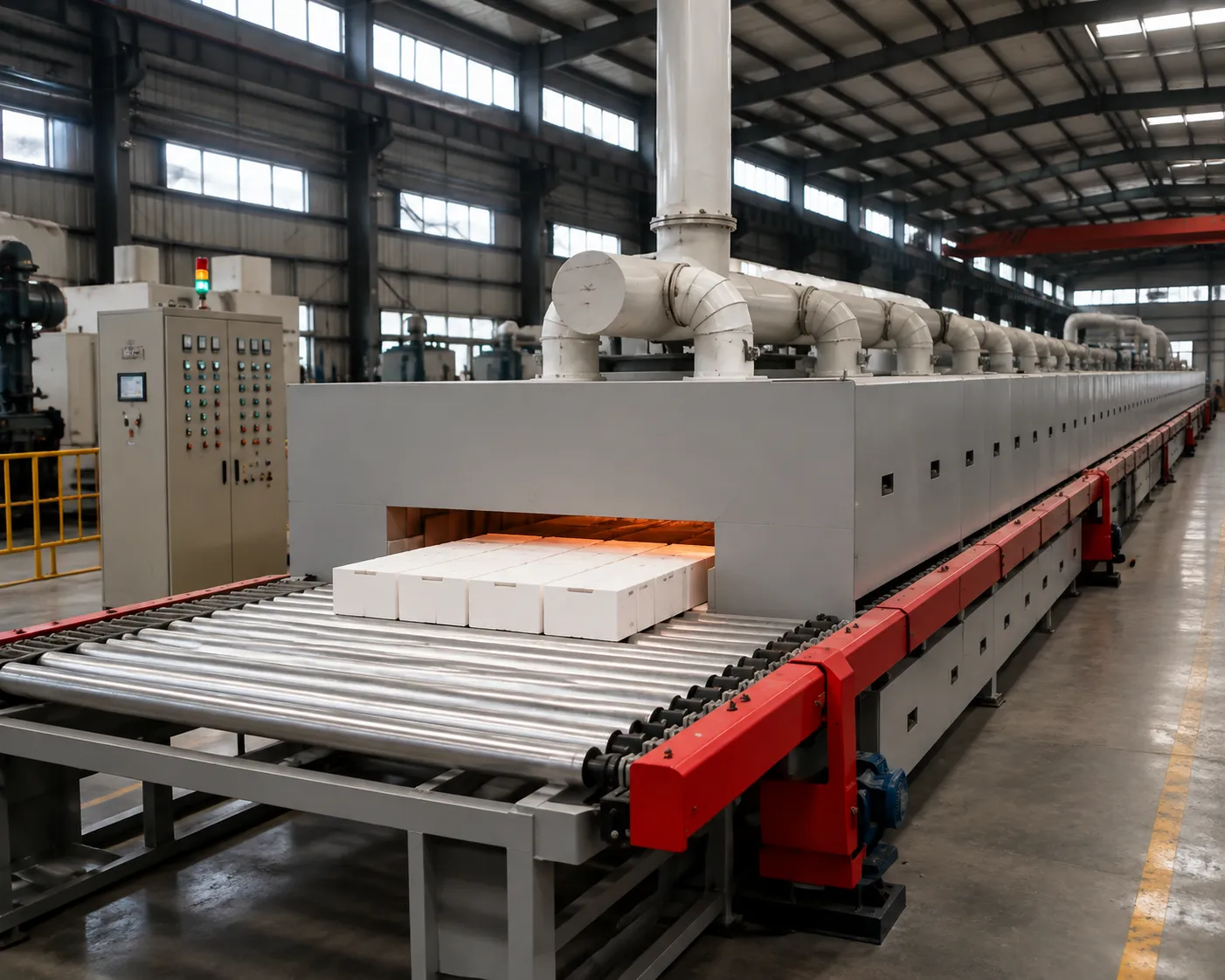

Custom High-Throughput Roller Hearth Furnaces
Engineered for high-volume continuous heat treatment and sintering, delivering precision atmosphere control, multi-zone thermal uniformity, and reliable automated conveying. Learn more about us and our industrial heating solutions.
Automated Heavy-Load Conveying
Trayless continuous drive for large components
Up to 1650°C Peak Temperature
Heat-resistant alloy & SiC ceramic roller options
Multi-Zone PID Control
±3°C furnace temperature uniformity
Protective Atmosphere Sealed
Low gas consumption N2, H2, or Ar purge

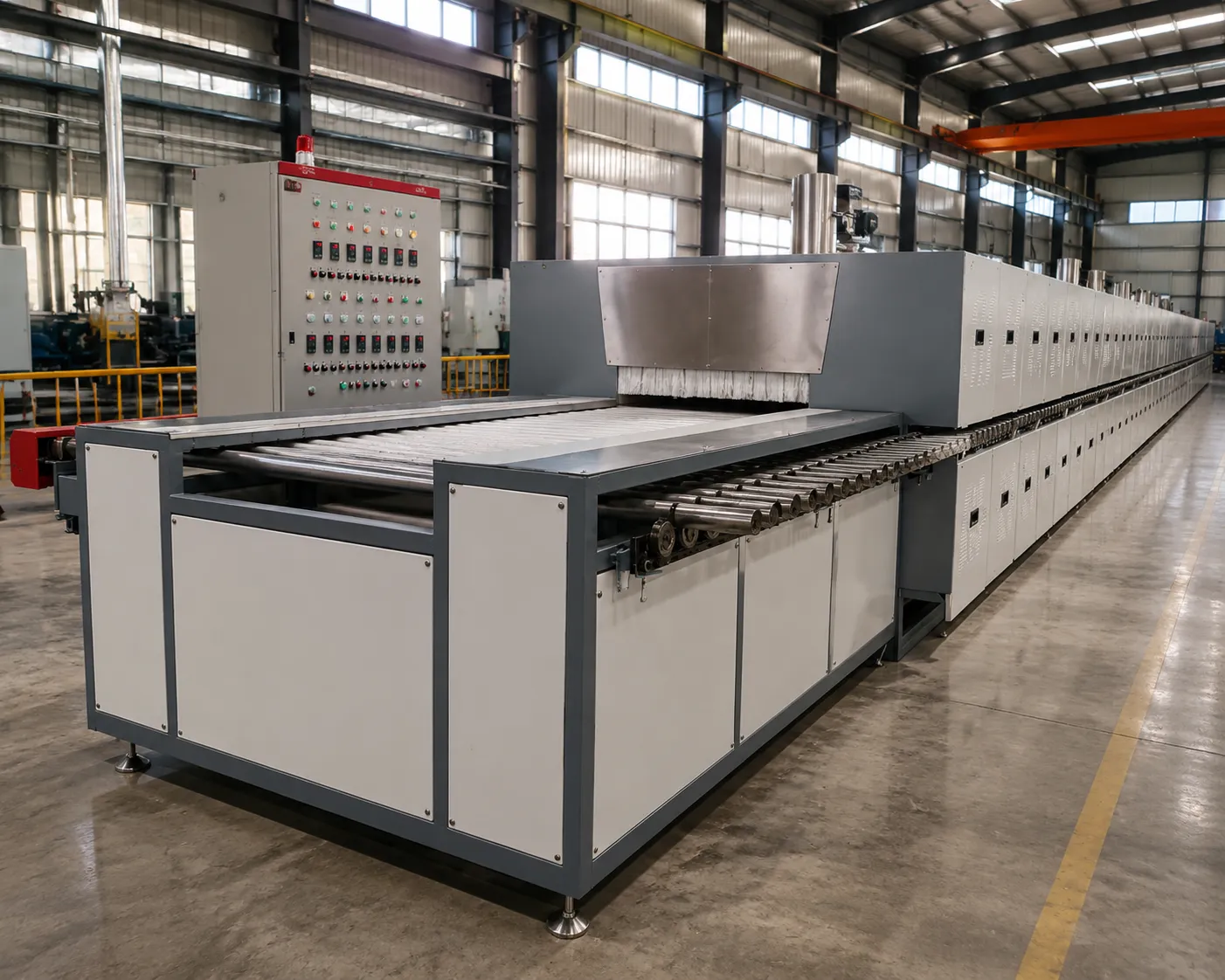

High-throughput continuous thermal processing engineered by Haitem Furnace.
Engineered Advantages of Haitem Roller Hearth Furnaces
Leveraging proprietary temperature control and gas atmosphere engineering, Haitem Furnace continuous roller hearth systems ensure exceptional thermal stability, repeatable metallurgy, and continuous operational uptime. Designed for high-volume industrial production, our equipment optimizes material flow while significantly lowering total energy consumption by using advanced thermal technology built on our extensive manufacturing capabilities. Learn more about us and our engineering solutions.
Heavy-Duty Trayless Conveyance
Specially engineered heat-resistant alloy and SiC ceramic rollers allow heavy parts, steel tubes, and long workpieces to convey continuously without costly trays or fixtures.
Multi-Zone Thermal Control
Precision PID controllers independently manage segmented heating zones to maintain exceptional temperature uniformity within ±3°C throughout the full processing length.
Sealed Protective Atmosphere
Advanced micro-positive pressure sealing supports N2, Ar, H2, or endothermic gas mixtures, eliminating metal oxidation while minimizing gas consumption.
High-Efficiency Thermal Insulation
Premium lightweight ceramic fiber lining dramatically lowers heat storage and shell losses, cutting energy costs by 20% to 30% versus conventional brick-lined furnaces.
Core Technical Specifications & Structural Architecture
Engineered for high-throughput thermal processing, custom roller hearth furnace systems from Haitem Furnace integrate modular mechanical design with precise multi-zone temperature and atmosphere control. Explore our standardized technical specifications, drive mechanisms, and atmospheric containment options developed to ensure exceptional thermal uniformity, long component service life, and reliable 24/7 industrial performance.
Thermal & Operational Engineering Parameters
Baseline specifications for continuous roller hearth processing lines. Dimensional profiles, heating zones, and power configurations are fully customizable to meet exact metallurgical requirements.
| Technical Parameter | Standard Operational Range / Rating |
|---|---|
| Maximum Operating Temperature | Up to 1650°C (3002°F) continuous processing |
| Effective Heating Zone Length | Fully customizable from 6 m to 50 m (19.7 ft to 164 ft) |
| Effective Conveyor Width | 400 mm to 2200 mm based on component dimensions |
| Thermal Uniformity Precision | ±3°C across working zone (multi-point PID continuous regulation) |
| Heating Element Configurations | Silicon carbide (SiC), MoSi2, or high-nickel alloy radiant tubes |
| Refractory Insulation System | High-purity polycrystalline ceramic fiber modules (Low thermal mass) |
| Automation & SCADA Control | Siemens / Allen-Bradley PLC with industrial HMI and SCADA integration |
Atmosphere Control & Gas Injection Systems
Sealed furnace chamber architecture and multi-point gas delivery prevent surface oxidation, decarburization, and material degradation during continuous heat treatment.
| Atmosphere Subsystem | Engineering Capabilities & Features |
|---|---|
| Compatible Process Atmospheres | Nitrogen (N2), Argon (Ar), Hydrogen (H2), Formed Gas, Endo/Exo Gas |
| Chamber Sealing Technology | Micro-positive pressure design with water-cooled vestibules & gas curtains |
| Moisture & Dew Point Monitoring | Continuous online dew point analysis controlling down to -60°C |
| Precision Gas Delivery | Automated Mass Flow Controllers (MFC) with multi-zone injection ports |
| Safety & Emergency Systems | Automated N2 emergency purge, flame curtain barriers, oxygen sensor interlocks |
Conveyor Mechanics & Drive Specifications
Heavy-duty continuous roller assemblies designed to withstand high temperatures and heavy loads while eliminating thermal sagging, axial runout, and mechanical creep.
| Mechanical Component | Material Grade & Design Options |
|---|---|
| Roller Shaft Composition | High-nickel heat-resistant alloys (HU, HT, HK) or Silicon Carbide (SiC) ceramic |
| Drive Transmission Mechanism | Synchronized chain drive or precision bevel gear with VFD speed regulation |
| Conveyor Speed Control | Variable speed adjustment from 0.1 m/min to 10 m/min continuous travel |
| Thermal Deformation Protection | Auxiliary UPS-powered continuous rotation system during power interruptions |
| Bearing & Seal Assembly | External water-cooled self-aligning pillow block bearings with gas seals |

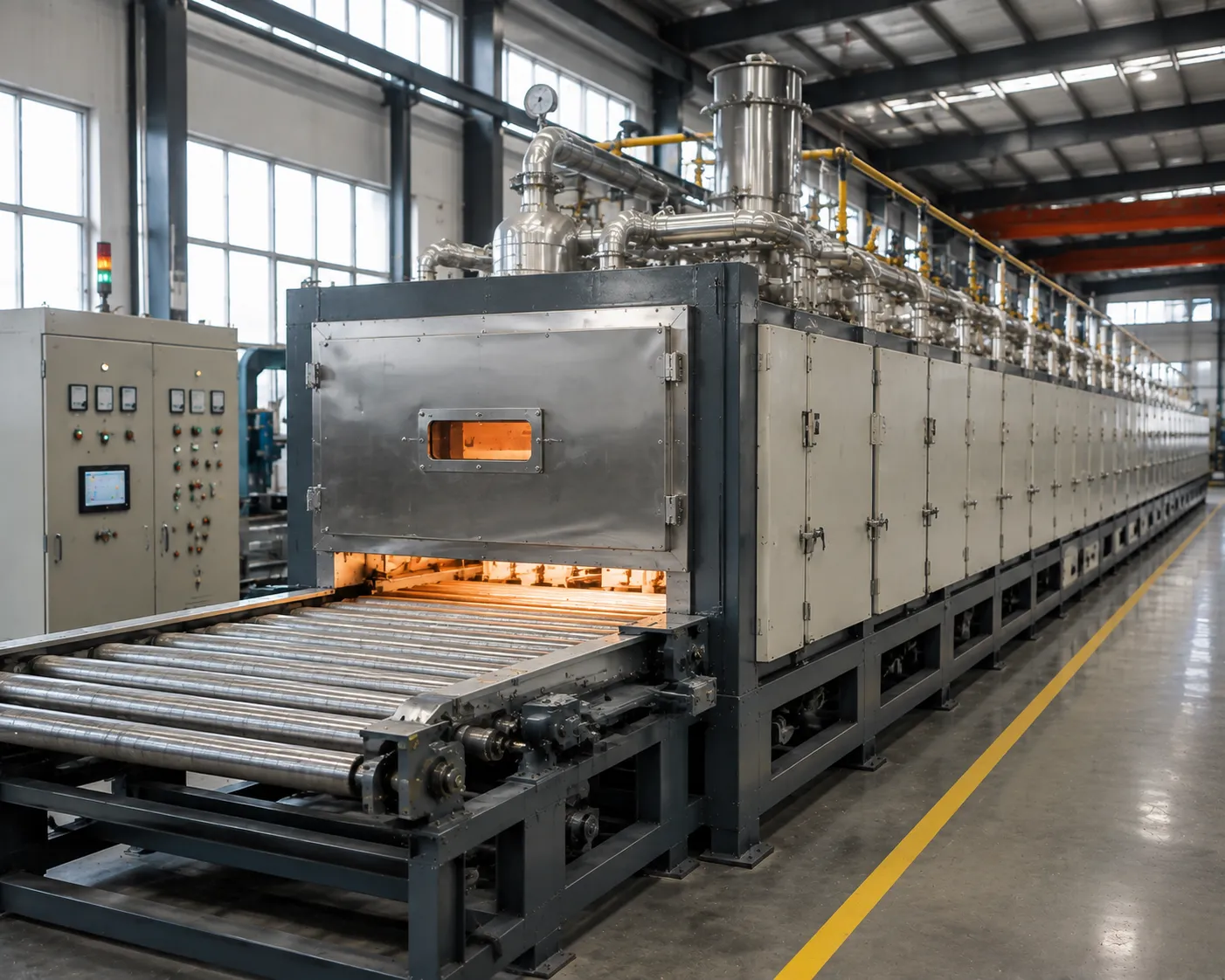

Structural Architecture

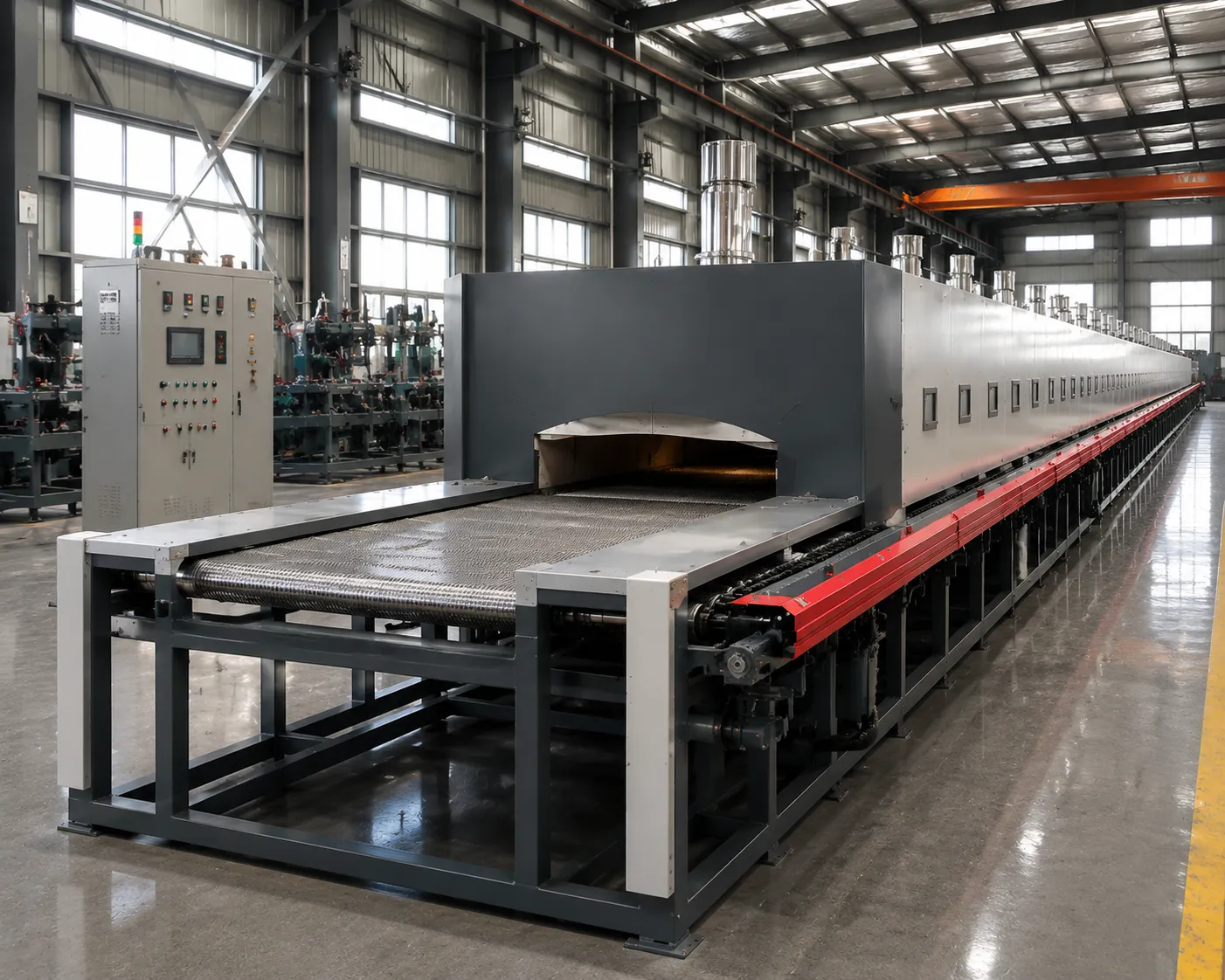

Engineering SchematicMechanical layout illustrating the modular heating chamber sections, synchronized roller drive mechanism, and atmospheric isolation seals backed by our advanced manufacturing-capabilities.
- ✓ Modular Sectional Design: Expandable heating and cooling zones tailored to production capacity.
- ✓ Zero-Creep Roller Support: Precision-engineered roller mountings minimize vibration and maintenance downtime.
- ✓ Rapid Service Access: Clamshell top-opening or side-access panels allow fast roller replacement.
Detailed CAD schematics and plant installation dimensional drawings provided upon engineering review.
Optional Auxiliary Process Modules
Expand your roller hearth thermal processing system with fully integrated upstream and downstream equipment.
Automated Material Handling
Automated charge/discharge tables, hydraulic elevators, and cross-transfer shuttles designed for continuous 24/7 unmanned operations.
Inline Quenching Systems
Integrated oil, water, or polymer quench tanks with high-velocity agitators and heat exchangers for immediate downstream hardening.
Debinding & Preheating Sections
Low-temperature debinding zones with integrated catalytic thermal oxidizers for powder metallurgy and MIM component processing.
Require Custom Technical Drawings or Layout Schematics?
Request detailed CAD engineering layouts, utility consumption matrices, and custom footprint plans tailored to your facility specifications.
As a professional industrial furnace manufacturer, Haitem Furnace delivers fully customized roller hearth furnace systems built to handle rigorous thermal profiles and heavy industrial workloads. From high-nickel alloy and SiC ceramic roller selection to advanced protective atmosphere controls, our continuous heat treatment solutions ensure precise metallurgy, high energy efficiency, and reliable long-term performance.
Typical Industrial Applications for Roller Hearth Furnaces
Engineered for high-volume continuous thermal processing and strict atmosphere regulation, Haitem Furnace roller hearth systems deliver consistent results across demanding manufacturing sectors. From continuous powder metallurgy sintering to bright metal annealing and high-temperature ceramic firing, our customized industrial continuous furnaces optimize thermal profile precision, surface integrity, and operational efficiency.
Powder Metallurgy Powder Metallurgy & MIM Sintering
Execute high-temperature powder metallurgy sintering for heavy structural components and Metal Injection Molding (MIM) parts. Our high-throughput continuous furnaces maintain uniform heating up to 1650°C to ensure repeatable material density, structural integrity, and tight dimensional tolerances.
- ✓ Debinding & Sintering: Integrated multi-stage thermal zones prevent component warping and thermal cracking.
- ✓ Atmosphere Shielding: Supports hydrogen, dissociated ammonia, or nitrogen atmospheres with micro-positive sealing.
- ✓ Direct Conveyance: Heavy PM structural parts travel smoothly over rollers without requiring heavy carrier trays.

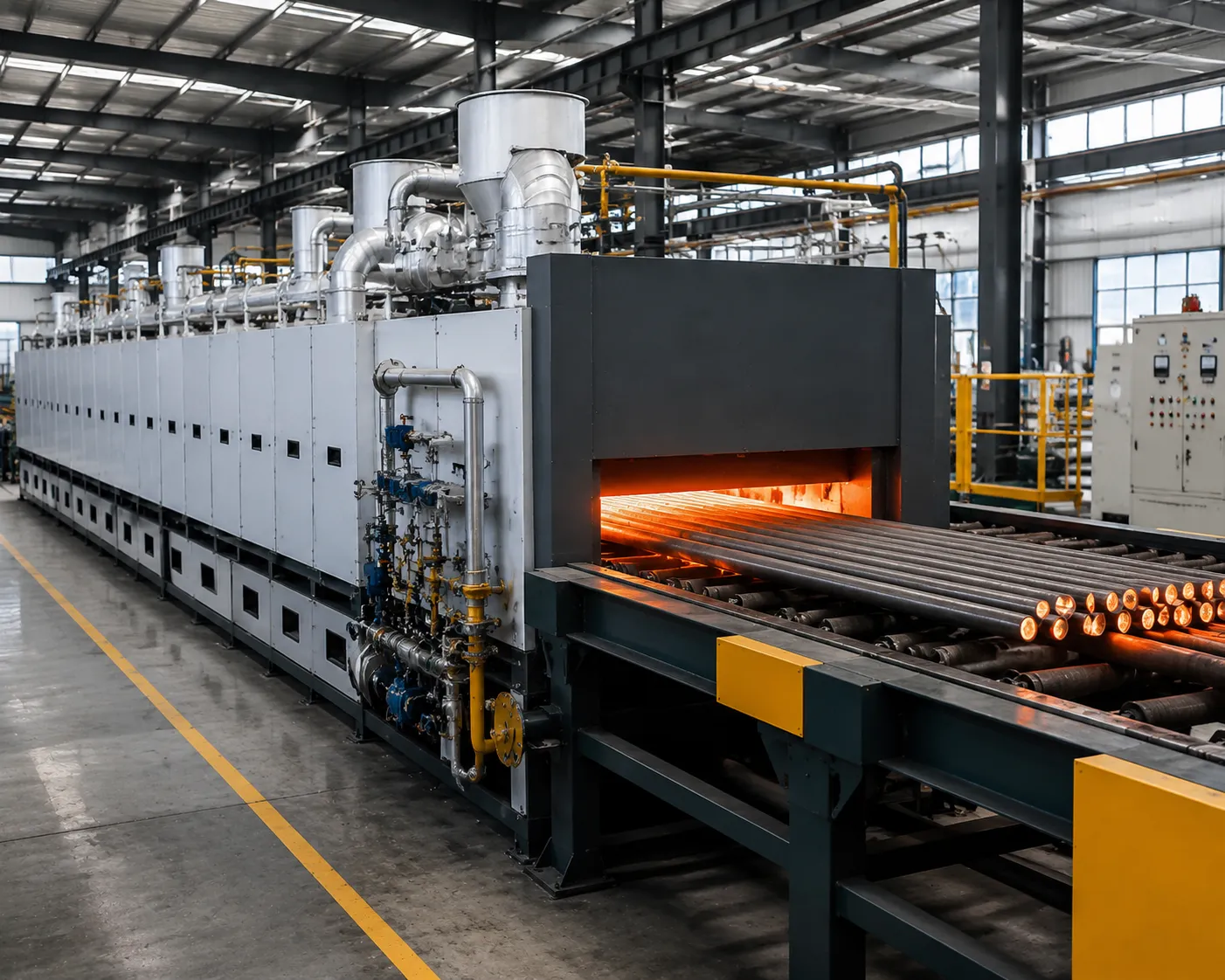

Metal Annealing Steel Tube, Bar & Wire Annealing
Perform continuous normalizing, stress relieving, and bright metal annealing on long stainless steel tubes, copper rods, and alloy wire coils. Synchronized roller drives prevent surface abrasion, scaling, oxidation, and unwanted carbon loss.
- ✓ Bright Surface Finish: Eliminates oxide scale formation through precise protective atmosphere control.
- ✓ Long Stock Support: Synchronized variable-frequency motor drives ensure smooth, continuous workpiece feed.
- ✓ Controlled Jet Cooling: In-line rapid cooling sections establish fine-grain metallurgical microstructures.

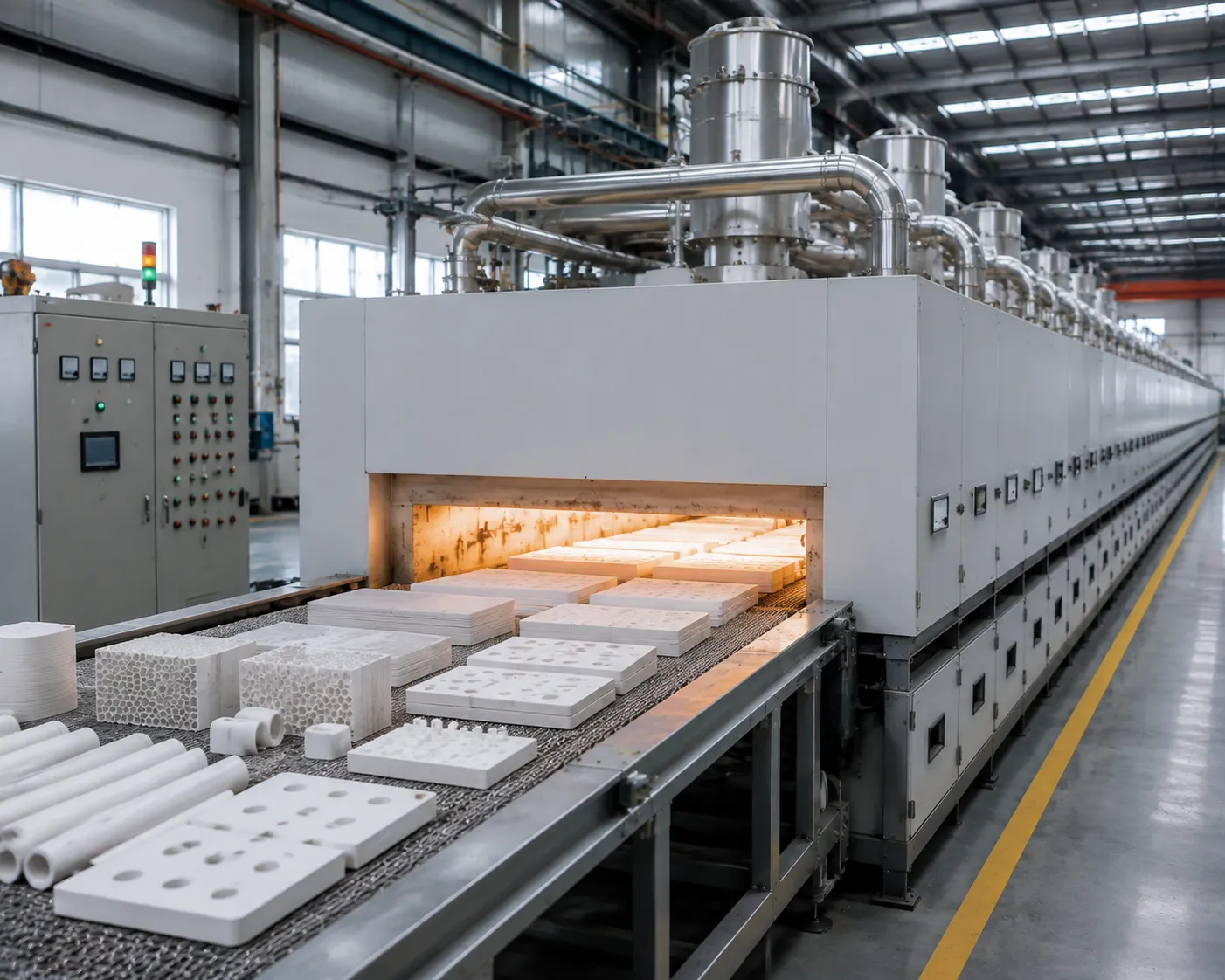

Advanced Ceramics Advanced Ceramics & Substrates
Process high-purity alumina substrates, electronic ceramic carriers, and soft magnetic ferrite cores in a specialized ceramic roller hearth furnace. Smooth, vibration-free roller rotation guarantees defect-free surfaces with zero micro-cracking or thermal distortion.
- ✓ Silicon Carbide Rollers: Recrystallized SiC rollers eliminate thermal contamination and friction wear.
- ✓ Ultra-Precise Temperature: Multi-zone PID control maintains chamber thermal uniformity within ±1.5°C.
- ✓ Vibrationless Conveyance: Precision gear drives protect fragile ceramic green bodies during transfer.

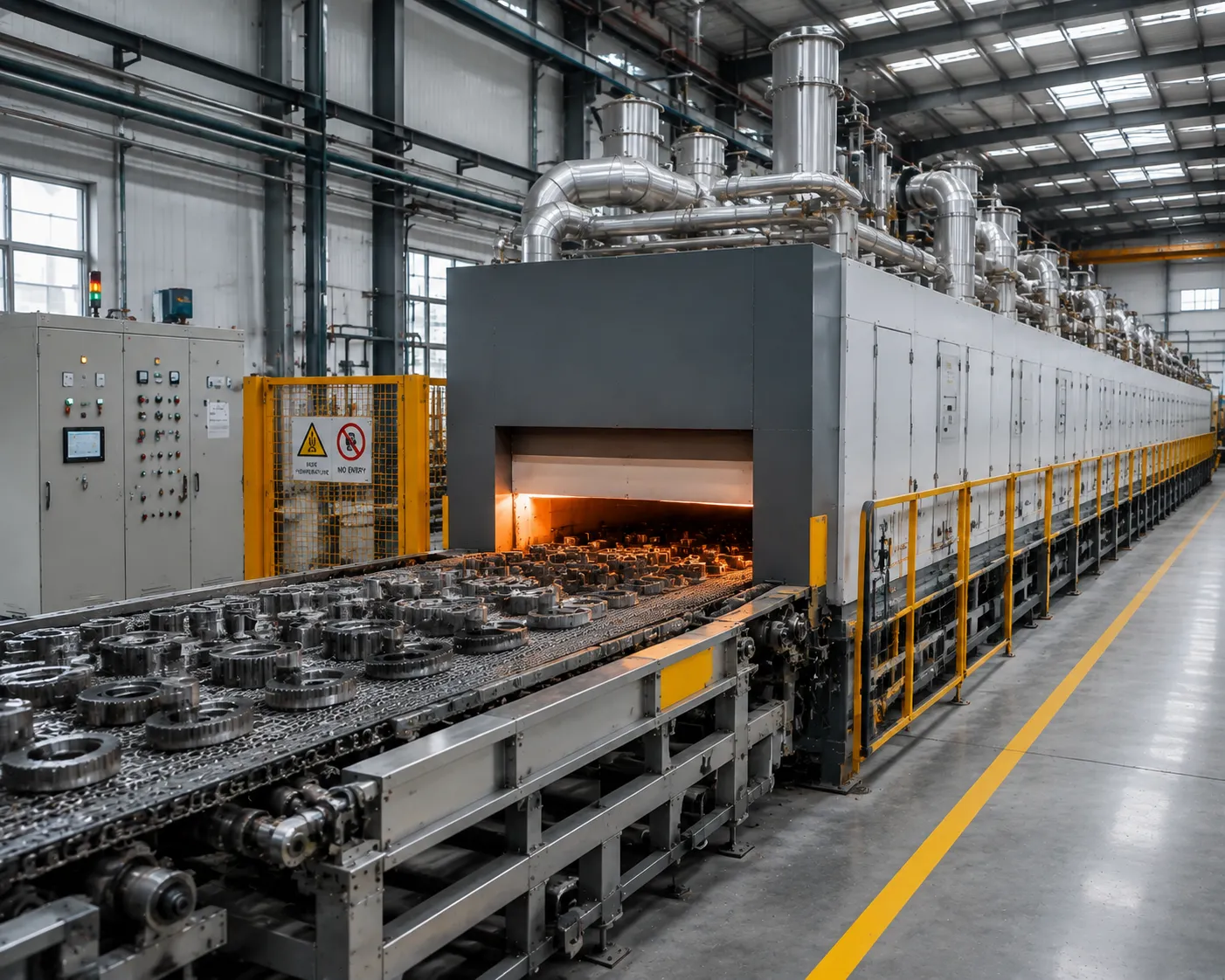

Automotive Parts Automotive Heat Treatment Lines
Handle high-volume continuous carburizing, hardening, and tempering for transmission gears, heavy bearings, and structural forgings. Heavy-duty nickel-chromium alloy rollers support high single-point loads without bending under intense heat.
- ✓ Automated Quench Transfer: Direct in-line delivery into high-speed oil, water, or polymer quench tanks.
- ✓ Carbon Potential Control: Endothermic gas delivery and oxygen probes maintain exact carburizing depths.
- ✓ Heavy Load Capacity: Thick-wall heat-resistant rollers eliminate shaft distortion during continuous duty.
Material Adaptability and Thermal Process Engineering
Selecting the right continuous industrial furnace requires matching exact thermal ramps, atmosphere purges, and mechanical drive systems with specific material characteristics. Supported by our extensive manufacturing capabilities, Haitem Furnace customizes ceramic roller hearth furnaces and heavy-duty alloy continuous lines to satisfy rigorous metallurgical, automotive, and electronic material standards worldwide.
Unlike lightweight mesh belt furnaces that face temperature upper limits and belt stretching under heavy loads, roller hearth furnaces utilize high-strength alloy or ceramic rolls to transport heavy components directly through multiple heating zones. Eliminating heavy fixtures and carrier trays lowers overall thermal mass, cuts energy consumption by 20% to 30%, and significantly boosts production throughput across all major industrial applications.
| Industry Sector | Primary Workpieces | Peak Temp | Atmosphere Protection | Roller Material |
|---|---|---|---|---|
| Powder Metallurgy | PM structural gears, bushing sleeves, MIM parts | Up to 1380°C | Dissociated Ammonia / H2 / N2 Shielding | Recrystallized SiC / High-Ni Alloy |
| Metal Annealing | Stainless steel tubes, copper bars, alloy wire coils | Up to 1100°C | Exothermic Gas / Nitrogen Purge | Centrifugally Cast Heat-Resistant Alloy |
| Advanced Ceramics | Alumina substrates, ferrite cores, ceramic plates | Up to 1650°C | Air / Inert Argon Shield | Silicon Carbide (SiC) Ceramic |
| Automotive Parts | Transmission gears, roller bearings, heavy forgings | Up to 1000°C | Endothermic Gas + Carbon Controller | Heavy-Duty Cr-Ni Alloy Steel |
Need a Customized Thermal Processing System?
Haitem Furnace engineering specialists configure heating lengths, atmosphere systems, and automated handling equipment to match your production goals.
Roller Hearth Furnace Technical FAQ
Explore technical insights into roller hearth furnace engineering, atmosphere sealing integrity, high-temperature roller stability, and operational maintenance requirements. Learn more about-us and our advanced thermal processing solutions.
01 How does a roller hearth furnace prevent rollers from warping under high temperatures?
Roller thermal sag and bending deformation under heavy continuous loads are prevented through advanced material selection and manufacturing-capabilities engineered by Haitem Furnace.
- High-Performance Materials: Rollers are fabricated from sintered silicon carbide (SiC) ceramics or specialized high-nickel heat-resistant alloys (such as Inconel 601 or RA330) tailored to the maximum operating temperature (up to 1650°C).
- Continuous Micro-Rotation Protection: Even when the production line is paused or holding temperature, an auxiliary drive system ensures the rollers continuously rotate at a low speed. This prevents asymmetrical heat distribution and thermal deformation.
- Precision Water-Cooled Bearings: External bearing housings feature water cooling jackets to isolate high radiant heat, ensuring smooth drive shaft rotation and long service life.
02 What protective atmospheres are supported, and how is sealing maintained?
Haitem Furnace continuous systems support a wide range of process atmospheres, including Nitrogen (N₂), Hydrogen (H₂), Argon (Ar), Endothermic/Exothermic gas, and Formed gas. For thermal processes requiring deep thermal treatments under vacuum, explore our advanced vacuum-furnaces.
Dynamic Gas Curtains
Inert gas nitrogen purging curtains at inlet and outlet vestibules prevent ambient oxygen ingress during workpiece entry and exit.
Pass-Through Mechanical Seals
Specialized graphite packing and double-lip mechanical seals surround every roller shaft penetration along the furnace shell.
Multi-point oxygen sensors and automated Mass Flow Controllers (MFC) maintain continuous micro-positive pressure (+50 Pa to +200 Pa), preventing air infiltration while optimizing process gas usage.
03 What are the primary maintenance requirements and high-wear components?
Primary maintenance components include drive shaft mechanical seals, drive chains, thermocouples, and heating elements. To maximize uptime, Haitem Furnace engineered a modular structural design.
Rapid Single-Roller Replacement Advantage
Unlike mesh belt continuous furnaces that require complete belt disassembly during failure, our side-extractable roller design enables individual roller replacement in as little as 30 minutes without requiring a complete furnace cooldown.
Standard preventive maintenance involves monthly bearing lubrication, quarterly chain tensioning checks, and semi-annual dynamic seal integrity inspections.
04 Can the furnace integrate into automated smart factory lines?
Yes. All Haitem Furnace roller hearth equipment comes equipped with advanced PLC control architectures (Siemens S7-1500 or Allen-Bradley systems) designed for seamless integration into Industry 4.0 automated manufacturing environments.
- Upstream Automation: Direct interface with robotic pick-and-place systems, automatic tray loading units, and inline degreasing/pre-washing machinery.
- Downstream Process Control: Automated synchronization with rapid oil or water quench tanks, forced-air cooling chambers, and tempering furnaces.
- SCADA & MES Connectivity: Supports OPC UA, Modbus TCP, and EtherNet/IP protocols for real-time thermal logging, process tracking, and predictive maintenance diagnostics.
Maintenance Benchmarks
Key operational thresholds for ensuring continuous high throughput and thermal efficiency in Haitem Furnace installations.
Need replacement components or custom system engineering?
Atmosphere Sealed Roller System
Precision mechanical seals and ceramic roller pass-through modules minimize process gas loss and protect drive mechanisms from high radiation environments.
Engineering Best Practices for Continuous Roller Hearth Thermal Processing
Optimizing heat treatment consistency across heavy continuous production requires strict adherence to operating parameters and dynamic seal management.
1. Thermal Profile Control
Multi-zone PID loop control prevents thermal gradient shifts during high-volume workpiece feeding. Regular calibration of high-precision thermocouples ensures consistent metallurgical hardness and grain structure.
2. Atmosphere Purity
Maintaining micro-positive chamber pressure guarantees low dew points (down to -40°C or lower), preventing workpiece oxidation or decarburization during continuous bright annealing or sintering processes.
3. Drive Synchronization
Variable-frequency gear transmission keeps all rollers synchronized down to the millimeter. Vibration-free part conveyance is critical for preventing displacement or surface scratching on delicate ceramic or automotive parts.
