High-Precision Industrial Heat Treatment Solutions
Precision-engineered for continuous industrial throughput, tight atmosphere protection, and ultra-precise thermal control. Haitem Furnace delivers high-uniformity industrial heat treatment furnaces tailored for modern metallurgical applications. Learn more about us.
Overview of Industrial Heat Treatment Applications and Core Capabilities
Industrial heat treatment forms the core of modern metallurgy, establishing critical mechanical properties across automotive, aerospace, precision tooling, and heavy machinery manufacturing. By subjecting engineered components to rigorous metal heat treatment cycles, manufacturers unlock exact phase transformations that define tensile strength, core toughness, wear resistance, and fatigue life. As a global industrial furnace manufacturer, Haitem Furnace delivers high-precision thermal processing equipment designed to eliminate surface oxidation, dimensional distortion, and thermal inconsistency across high-volume production lines. To learn more about our history and thermal processing background, visit our about us page.
Resolving Critical Heat Treatment Metallurgical Challenges
Conventional thermal processing equipment often suffers from air ingress, uneven heating zones, and inadequate atmospheric sealing. When industrial heat treatment processes operate without exact parameters, workpieces experience severe metallurgical degradation, resulting in elevated scrap rates, unexpected component failures, and costly secondary machining.
- Grain Coarsening & Overheating: Uncontrolled thermal soaking and localized hot spots enlarge crystalline grain structures, severely compromising impact toughness and fatigue limit.
- Surface Oxidation & Decarburization: Oxygen infiltration at elevated temperatures forms heavy oxide scaling and carbon-depleted surface layers, weakening outer part hardness.
- Deformation & Quench Cracking: Asymmetrical temperature distribution induces severe internal thermal stresses, leading to warping or catastrophic fracturing during quenching.
- Furnace Temperature Non-Uniformity: Thermal drift creates significant hardness variance between components positioned near furnace walls versus the chamber center.
The Haitem Advanced Thermal Engineering Advantage
Haitem Furnace integrates engineered chamber gas-tightness, controlled protective atmospheres, and multi-zone heating control to resolve fundamental heat treatment process flaws. Our system architectures deliver repeatable thermal cycles, high throughput, and maximum efficiency for continuous and batch operations based on our advanced manufacturing capabilities.
Airtight Chamber Engineering
High-temp elastomer flange seals and positive-pressure gas management prevent oxygen contamination during critical heating and holding stages.
Controlled Atmosphere Systems
Integrated gas distribution panels support ultra-pure nitrogen (N₂), argon (Ar), hydrogen (H₂), and decomposed ammonia processes.
Multi-Zone Temperature Control
Precision PID controllers and micro-zone thermocouple arrays maintain tight temperature uniformity within ±1°C at up to 1700°C.
Energy-Efficient Thermal Linings
Low-heat-capacity composite ceramic fiber and metallic radiation shielding reduce thermal losses and trim energy costs by over 30%.
Extensive Material Processing Capabilities
Engineered to handle a wide range of ferrous and non-ferrous alloys, Haitem industrial furnace equipment provides customized heating rates, dwell times, and cooling profiles to achieve precise grain refinement across every heat treatment cycle.
Clean, Bright Surface Integrity
Combining high-purity protective atmospheres with uniform heating elements suppresses oxide formation, preserving original dimensional tolerances without requiring chemical pickling or abrasive blasting.
Primary Process Focus Areas
Tailored industrial furnace configurations engineered for four fundamental heat treatment metallurgical workflows:
Core Heat Treatment Process Solutions
Match high-precision industrial furnace equipment to your exact metallurgy goals. Contact Haitem Furnace to obtain an efficient industrial heat treatment solution tailored to your plant, backed by expert thermal engineering consultation and custom heat treatment line design from our team about-us dedicated to serving global users.
Precision Annealing Furnace Solutions
Eliminate internal stress, soften grain structures, and dramatically enhance cutting machinability. Haitem Furnace provides complete industrial furnace customization, including advanced vacuum-furnaces systems, with tight thermal curve control to ensure uniform grain refinement across heavy forgings and delicate components alike.
Key Thermal Characteristics:
- Stress Elimination: Neutralizes internal residual stresses caused by prior casting, forging, or cold working operations.
- Machinability Enhancement: Softens phase structures to minimize tool wear during subsequent machining processes.
- Ductility Recovery: Restores metal ductility to prevent micro-cracking during downstream cold forming.
Continuous Vacuum / Atmosphere Annealing Line
Recommended Industrial Heat Treatment Equipment Solutions
Selecting the ideal thermal processing system is essential for achieving consistent metallurgical hardness, refined grain structures, and precise dimensional stability across demanding production cycles. The Haitem Furnace product line spans from versatile single-furnace batch systems to fully automated continuous heat treatment lines. Built to meet stringent international standards, our equipment delivers exact atmospheric stability and thermal uniformity for aerospace, automotive, tooling, energy, and heavy machinery manufacturing. Learn more about us and our dedicated thermal engineering team.
Batch Thermal Processing
Engineered for flexible operational cycles, heavy forgings, structural dies, and variable gas atmosphere recipes that require tailored heating curves and precise dwell times.
Continuous Production Lines
Purpose-built for mass output of automotive fasteners, stampings, tubing, and bar stock, integrating automated feeding, multi-zone heating, and controlled quenching systems.

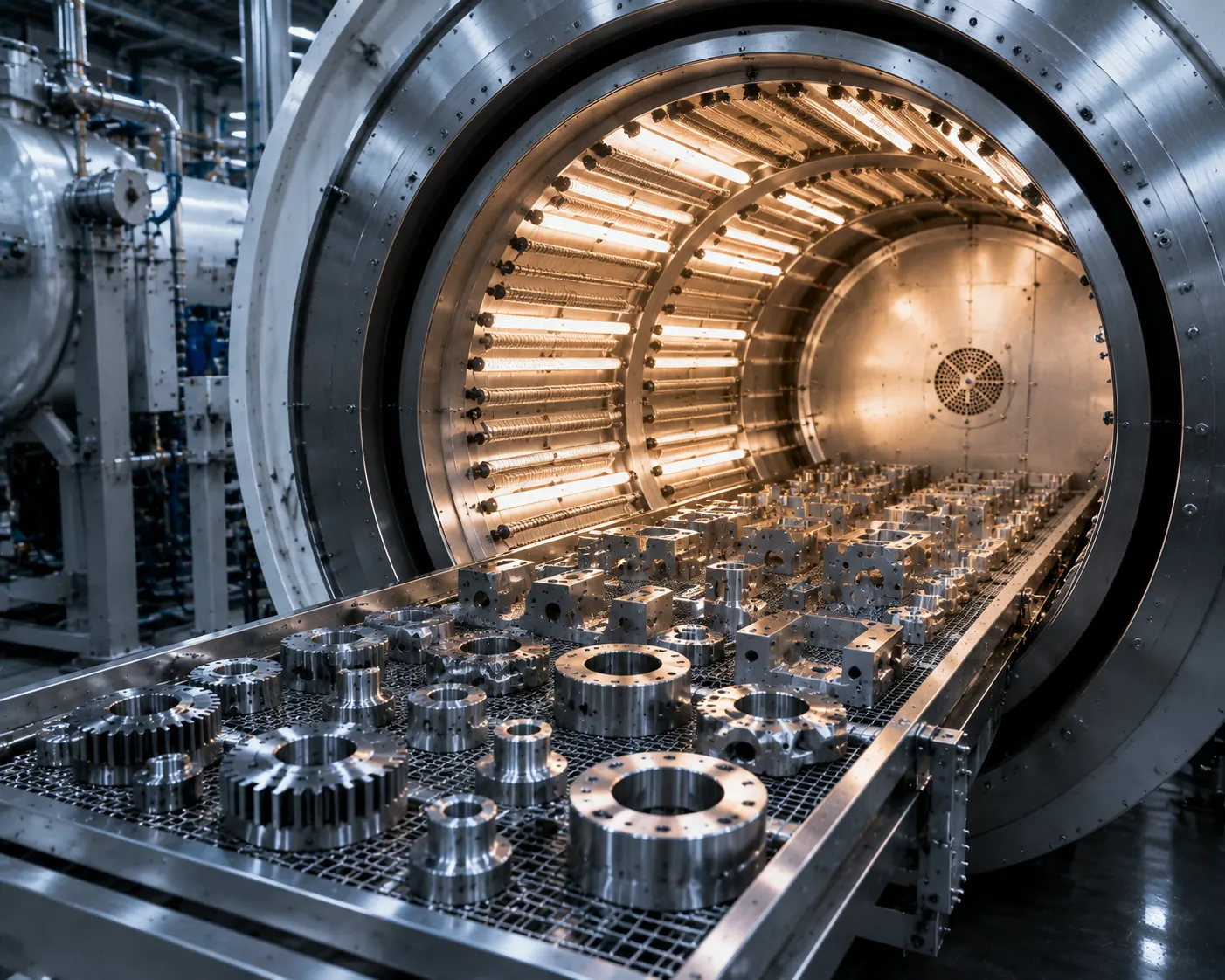

Vacuum Thermal Systems
Designed for oxidation-free, decarb-free bright finishing of high-alloy tool steels, titanium components, medical implants, and precision vacuum-brazed assemblies.

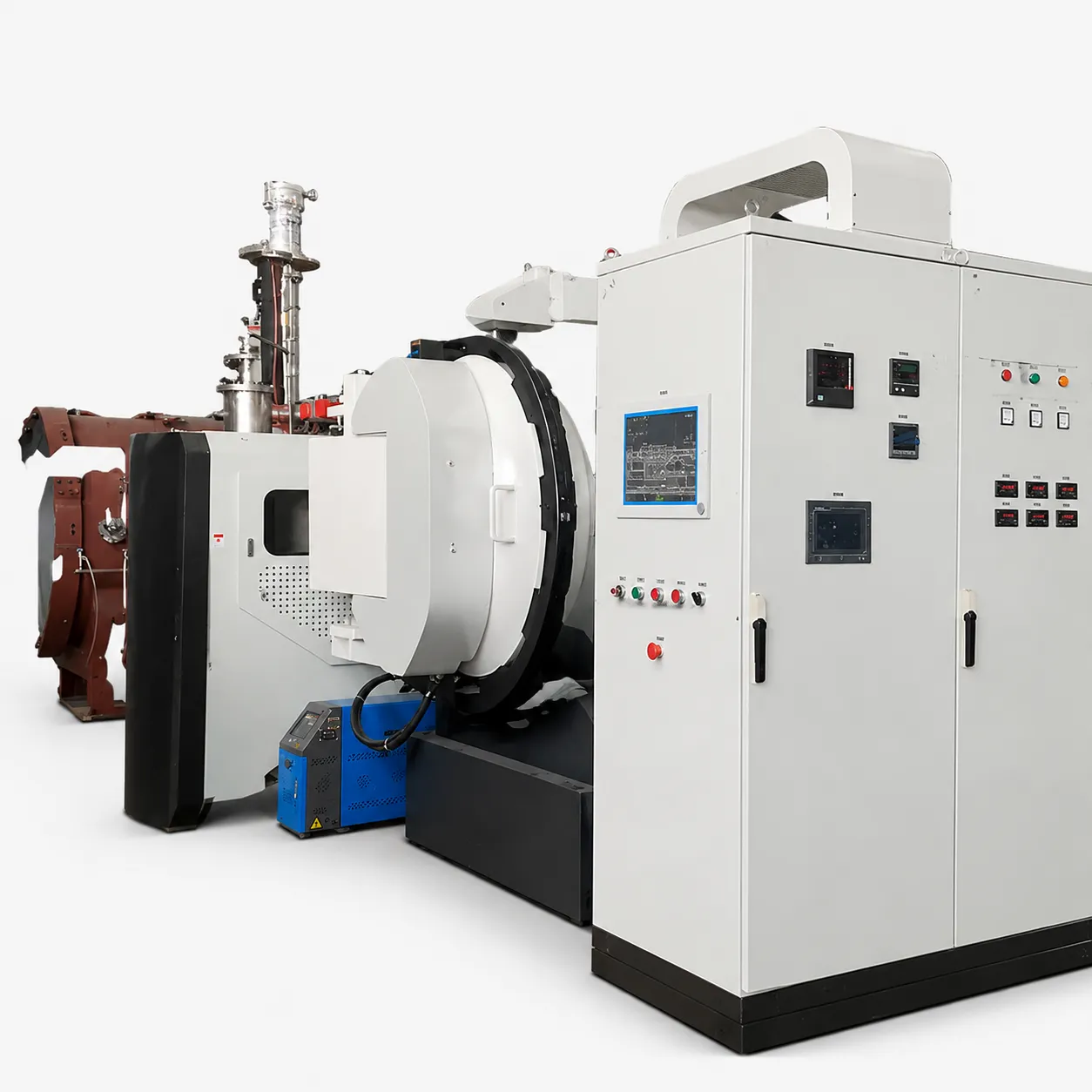

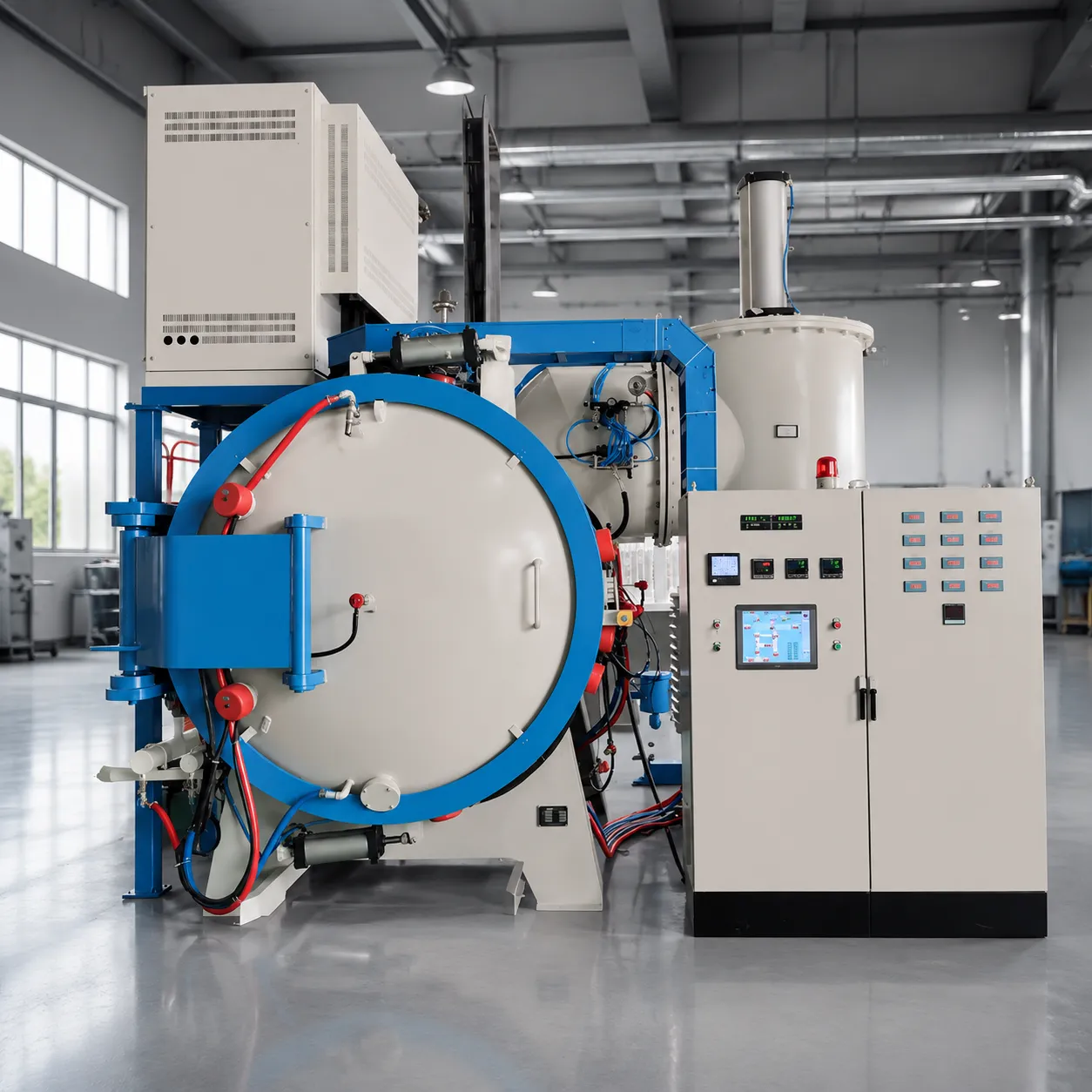

Vacuum & High Cleanliness Vacuum Heat Treatment Furnace
Engineered for critical metallurgical processes demanding complete surface protection without oxidation, scaling, or decarburization. Operating under high-vacuum environments with high-pressure gas quenching capabilities, this vacuum heat treatment furnace produces ultra-clean, bright parts with optimal mechanical strength and minimal distortion.
Primary applications include high-speed tool steel hardening, aerospace solution treating, stainless steel bright annealing, and complex vacuum brazing. Multi-zone graphite or molybdenum heating elements deliver exceptional temperature uniformity across the entire furnace chamber.
Key Technical Parameters
- • Max Operating Temp: Up to 1350°C (2462°F) with multi-zone control
- • Ultimate Vacuum: 10⁻¹ Pa to 10⁻⁴ Pa via high-vacuum pump sets
- • Quenching Capability: 2 bar to 10 bar directional high-pressure gas quenching
- • Core Processes: Bright hardening, stress relieving, vacuum brazing, solution treatment

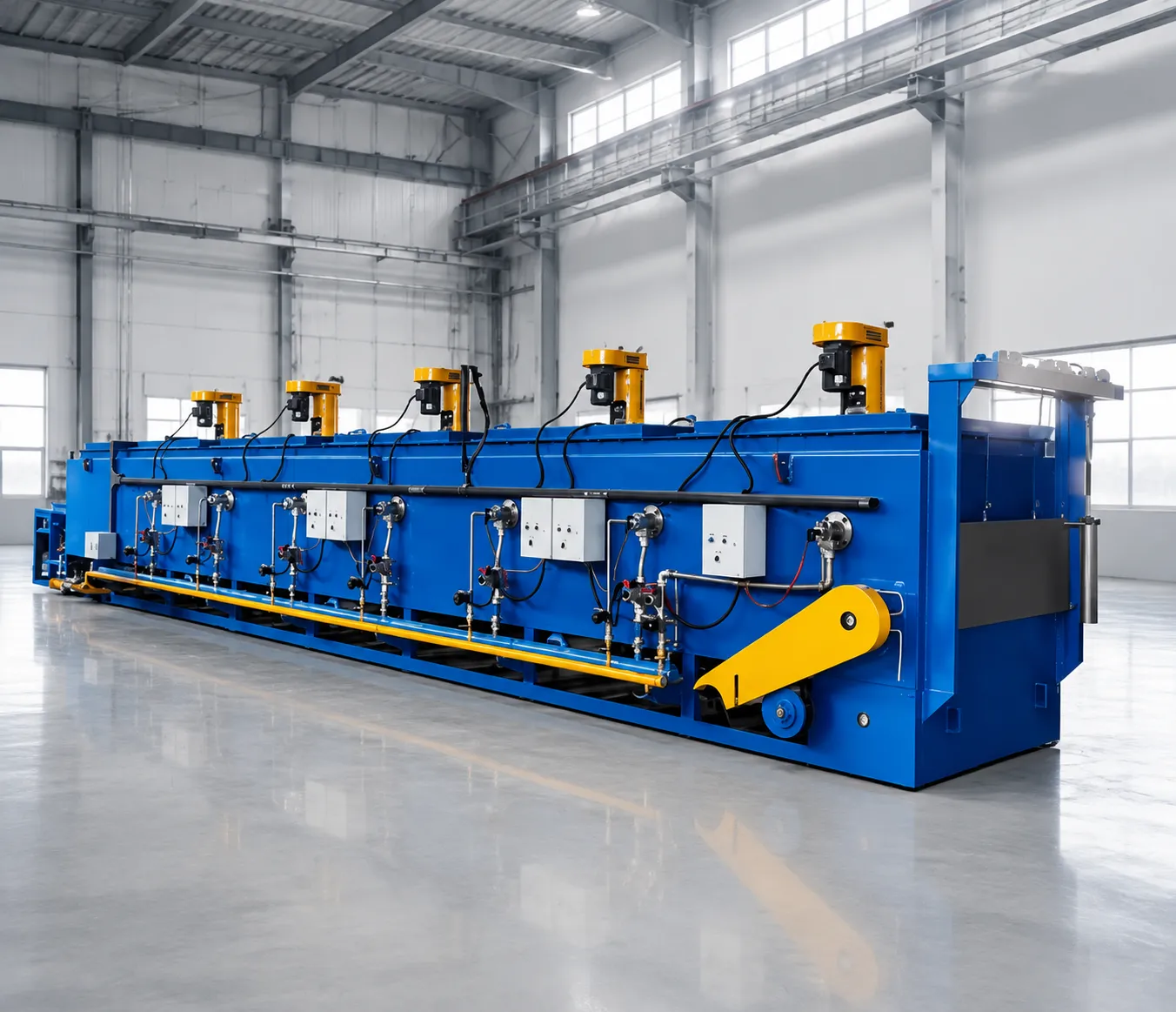

Continuous & Mass Production Mesh Belt Continuous Heat Treatment Line
Designed for continuous, automated thermal processing of high-volume small to medium-sized components. Featuring frequency-controlled mesh belt speeds and independent multi-zone heating, this continuous heat treatment line guarantees uniform case depth, core hardness, and repeatable metallurgical properties.
Ideal for high-strength bolts, automotive fasteners, bearing races, precision stampings, and hardware components. The line integrates pre-washing, carburizing or carbonitriding, oil or polymer quenching, post-washing, and tempering in a single seamless workflow. Backed by our advanced manufacturing-capabilities, these systems deliver exceptional durability.
Key Technical Parameters
- • Production Output: 100 kg/h to 1,500 kg/h continuous production capacity
- • Atmosphere Control: Methanol-nitrogen, endothermic gas, or ammonia cracking systems
- • Integrated Equipment: Auto-loader, degreaser, hardening furnace, quench tank, tempering furnace
- • Core Processes: Continuous carburizing, thin-case carbonitriding, quenching, tempering

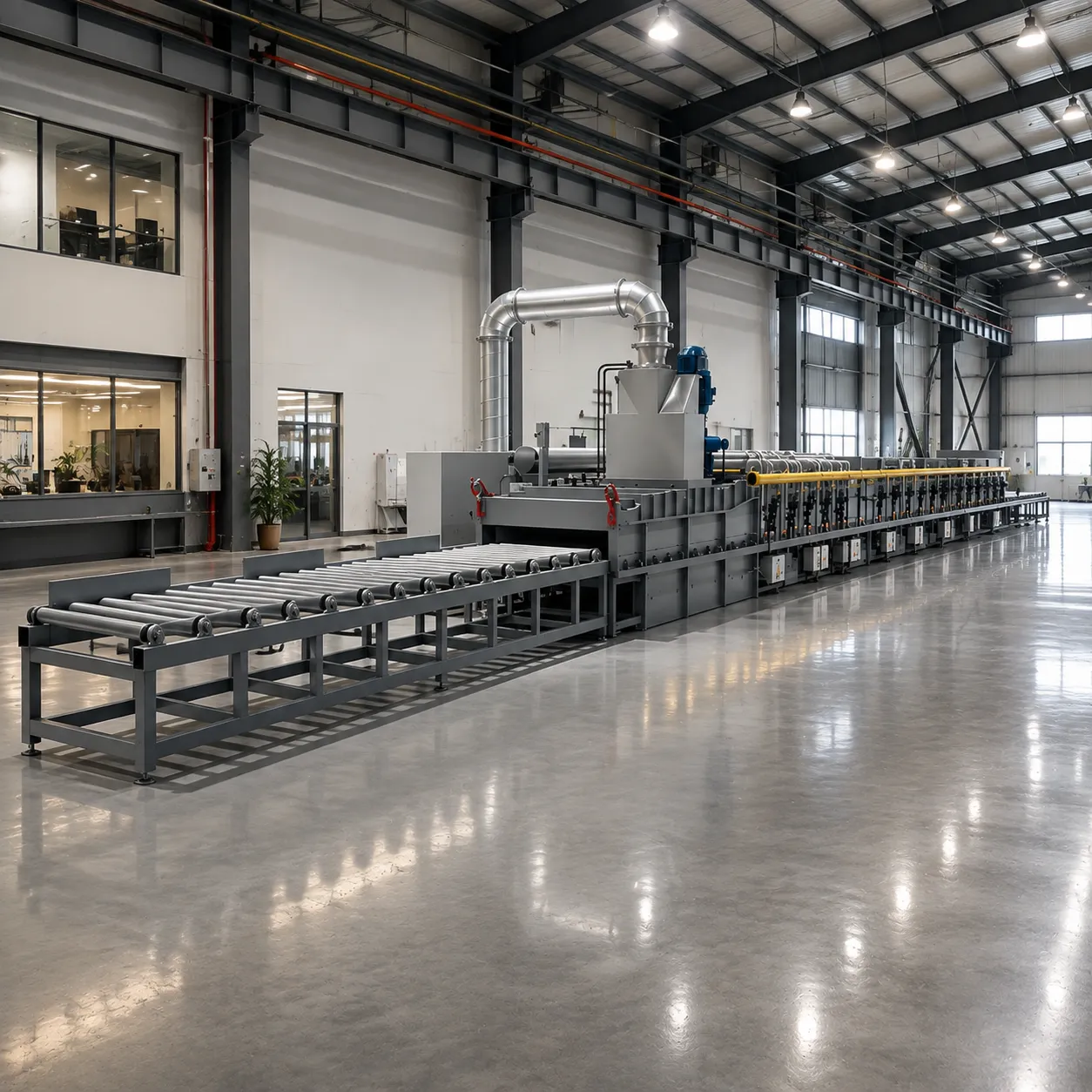

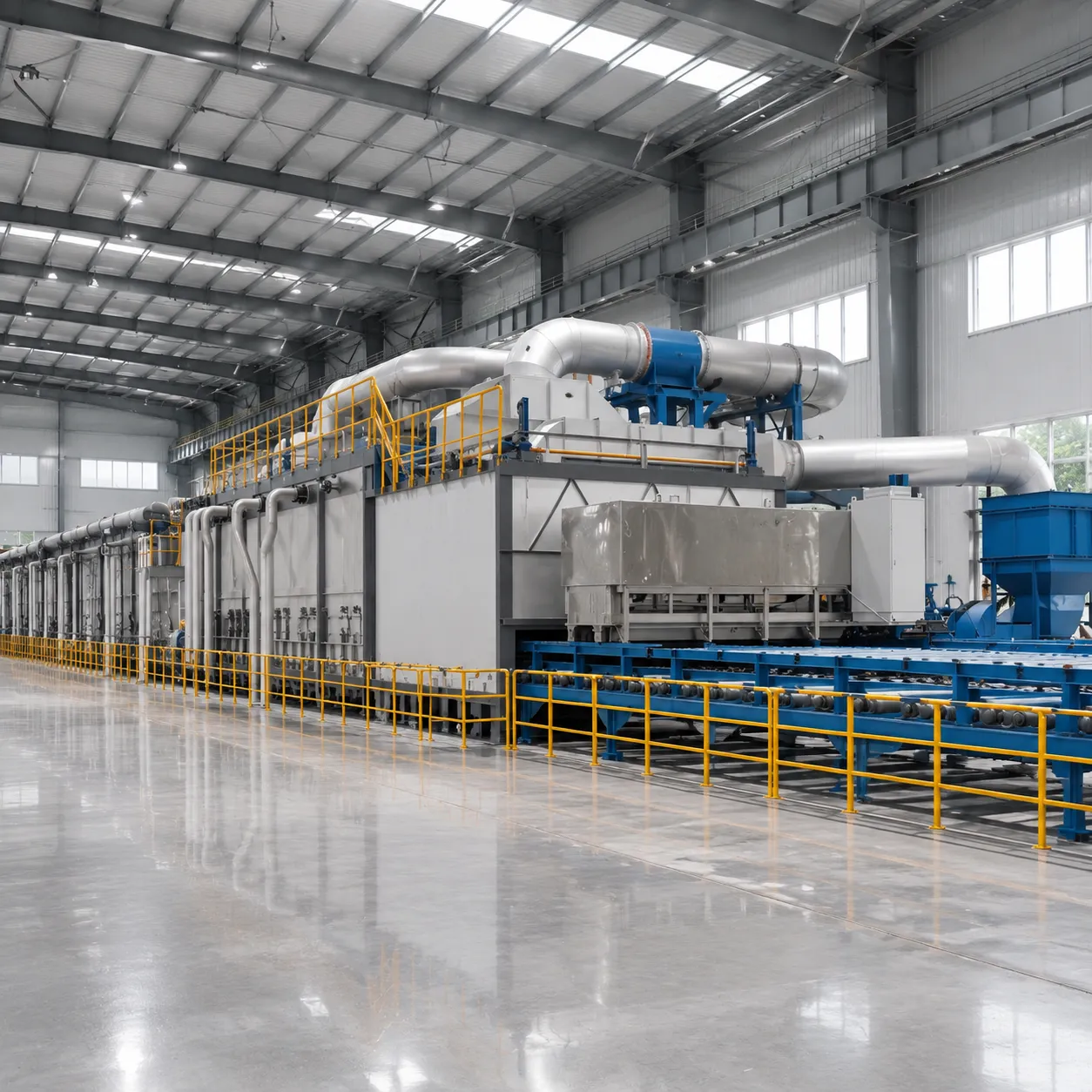

Continuous & Heavy Duty Roller Hearth Furnace Line
Engineered for the high-throughput heat treatment of long or heavy materials, including alloy steel bars, seamless tubes, structural plates, and coil stock. Heavy-duty ceramic or heat-resistant alloy rollers ensure smooth conveyance through multi-zone heating and controlled cooling chambers.
Offers high thermal efficiency and customizable modular zone lengths. Advanced gastight seals maintain strict atmosphere protection, preventing decarburization during extended bright annealing, normalizing, or solution treatment cycles.
Key Technical Parameters
- • Loading Width: Up to 2,500 mm accommodating heavy tonnage tube/bar bundles
- • Thermal Uniformity: ±3°C (±5°F) across multi-zone PID temperature controls
- • Conveyance Drive: Synchronized, variable-frequency heavy-duty roller drive
- • Core Processes: Continuous annealing, normalizing, stress relieving, solution aging

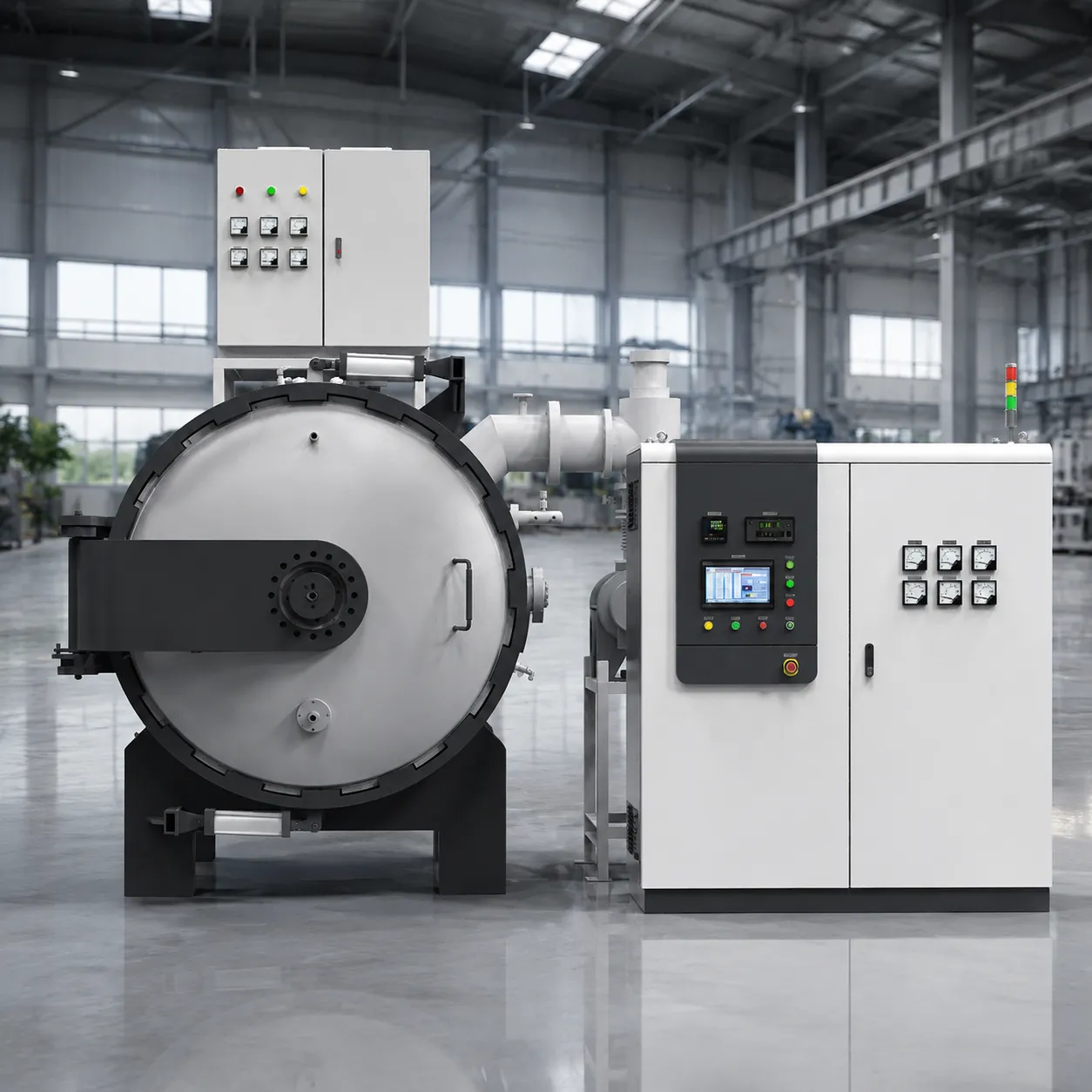

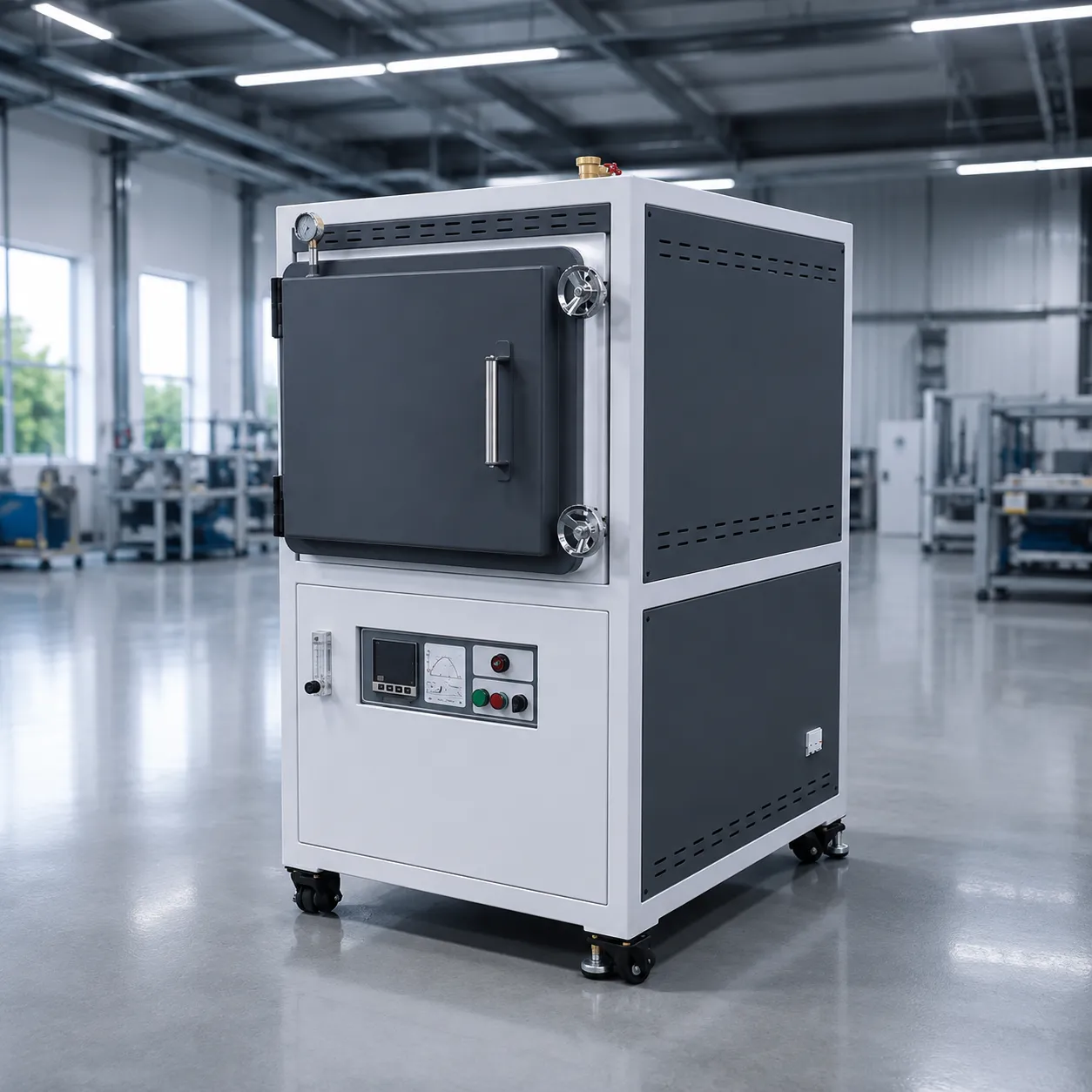

Batch & Flexible Controlled Atmosphere Box and Pit Furnace
Provides maximum operational versatility for large components, heavy forgings, and custom batch production. Precision-sealed chamber designs enable exact injection of protective gases (nitrogen, argon, methanol) to eliminate scale formation and surface degradation during thermal processing.
Pit furnaces excel at vertical loading of long shafts, wind turbine gears, and heavy drive components to prevent thermal distortion, while box furnaces offer accessible horizontal loading for complex die-casting molds, forgings, and tool steels.
Key Technical Parameters
- • Charge Capacity: 500 kg to 30+ metric tons per batch load
- • Atmosphere Monitoring: In-situ oxygen probe analysis with automated gas dosing
- • Thermal Insulation: Low thermal mass ceramic fiber linings for fast heating cycles
- • Core Processes: Deep gas carburizing, nitriding, annealing, stress relief, tempering
Navigating Heat Treatment Furnace Selection by Production Scale & Material Specs
Determining whether a vacuum heat treatment furnace, mesh belt continuous heat treatment line, roller hearth furnace, or atmosphere batch furnace best fits your operation depends on annual throughput targets, workpiece metallurgy, required surface finish, and facility energy goals. The thermal engineering specialists at Haitem Furnace analyze your exact component dimensions, material grades, and heating profiles to configure high-efficiency furnace systems optimized for long-term reliability and low operating costs.
Key Technical Highlights and Control Benchmarks
Haitem Furnace integrates multi-zone precision heating and controlled atmosphere technology to guarantee strict batch-to-batch metallurgical consistency and minimal thermal variance.
Furnace Temperature Uniformity
Tight thermal distribution across active heating zones ensures repeatable metallurgical outcomes.
Atmosphere Purity Control
High-purity protective gas management eliminates surface oxidation and decarburization risks.
Energy Consumption Reduction
Composite ceramic fiber insulation reduces thermal loss and minimizes operational power demands.
Continuous Stable Operation
Engineered with high thermal resistance for uninterrupted 24/7 heavy industrial production.

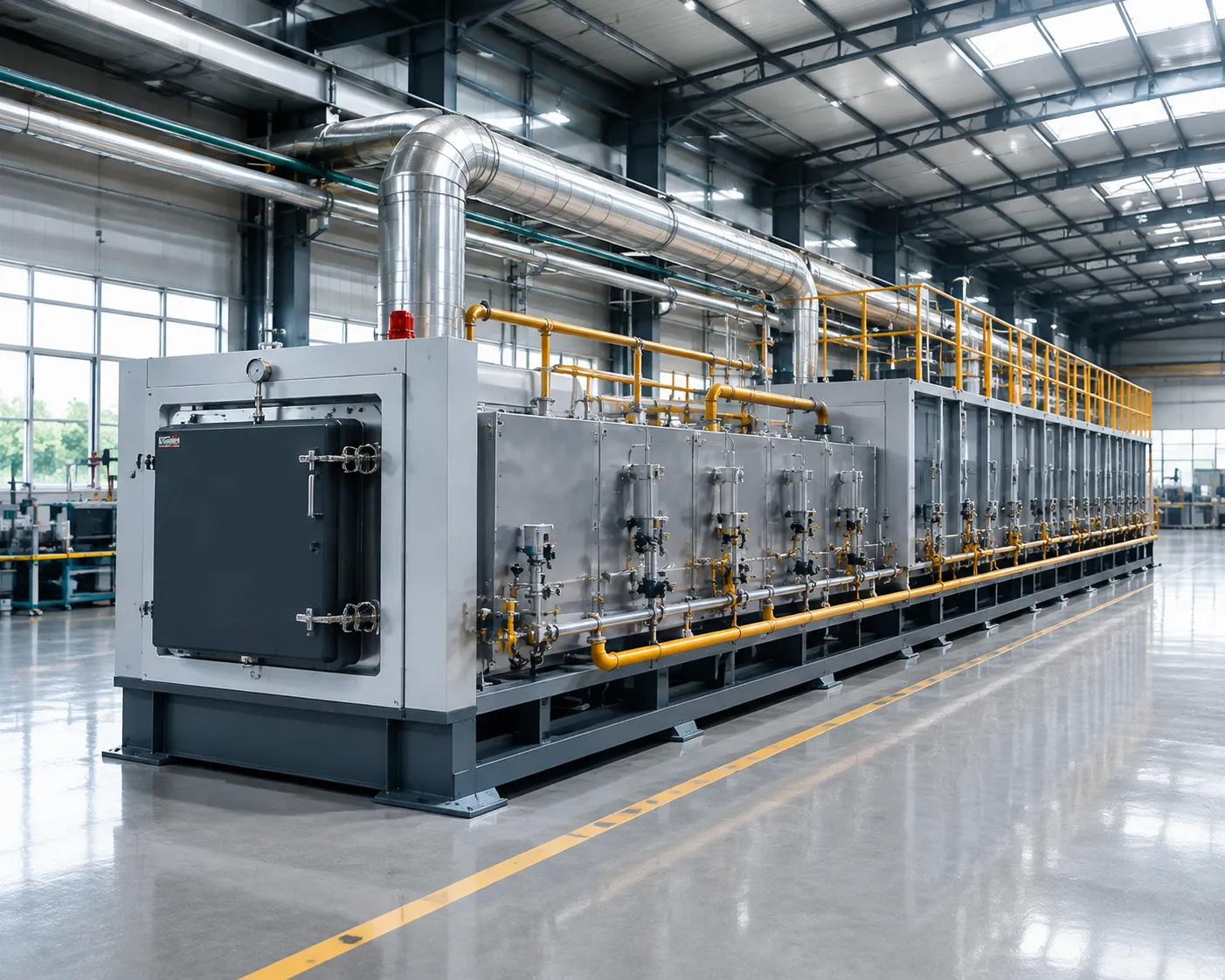

System Integration
Precision thermal monitoring and atmosphere feedback in real time.
Industrial-Grade Process Reliability
Built to satisfy demanding manufacturing specifications, Haitem Furnace systems combine tight thermal uniformity, high-integrity atmosphere containment, and optimized energy efficiency for peak productivity.
Multi-Zone PID Intelligent Temperature Control
Independent multi-zone PID control automatically regulates heating elements to eliminate cold spots and maintain tight temperature tolerances.
Low-Energy Composite Fiber & Metallic Shielding
Layered ceramic fiber insulation combined with metallic heat shields minimizes radiation loss and accelerates heating efficiency.
Multi-Tiered Safety Interlock Protection
Integrated gas flow sensors, over-temperature limiters, and pressure interlocks safeguard thermal equipment and operational personnel.
SCADA Data Logging & Process Traceability
Real-time monitoring logs exact temperature profiles and atmosphere readings to support comprehensive quality audits and traceability.
Industry Application Scenarios and Field Success Cases
From high-stress automotive gears to precision aviation titanium components, Haitem Furnace thermal processing systems deliver uncompromising metallographic properties, rigorous distortion control, and 24/7 industrial repeatability across critical global manufacturing sectors.
Surface Hardness: 60–62 HRC | Effective Case Depth: 0.8–1.2 mm

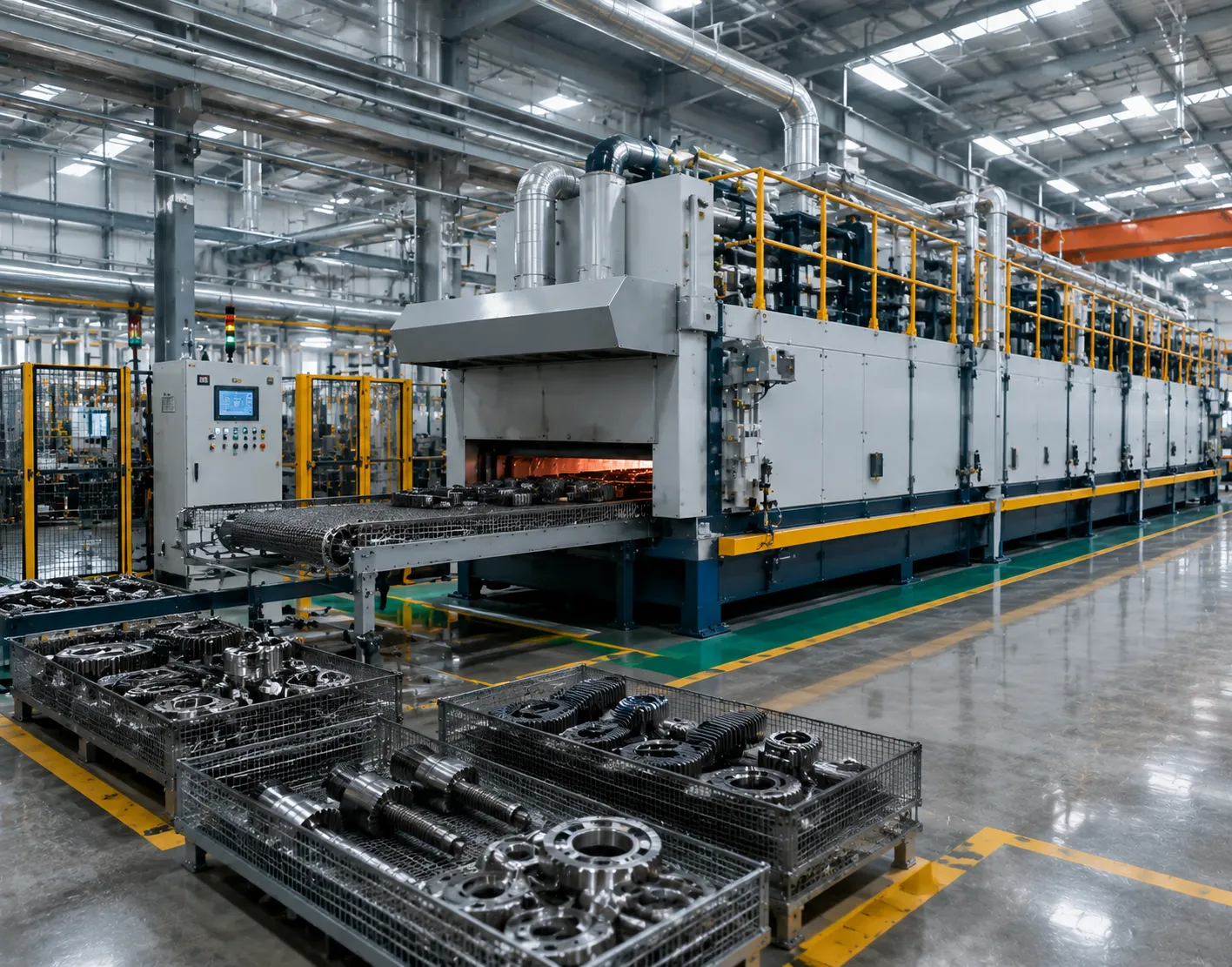

Automotive & Components Manufacturing
Modern automotive powertrains demand exceptional fatigue strength, wear resistance, and minimal operational noise. Critical automotive heat treatment processes require precise carbon potential regulation and uniform oil or high-pressure gas quenching to protect transmission gears, drive axles, needle bearings, and suspension springs against premature fatigue failure.
Haitem Furnace engineers fully automated continuous mesh belt and pusher-type carburizing lines. Integrated multi-zone PID controllers maintain precise atmosphere carbon potential, suppressing grain coarsening and intergranular oxidation while achieving consistent surface-to-core hardness profiles across massive production runs.
Key Technical Implementation Highlights:
- High-Frequency & Continuous Carburizing: Precise carbon depth gradient control engineered for heavy-duty transmission gears, drive shafts, and planetary gear sets.
- Press & Direct Quenching Integration: Minimizes gear tooth distortion and eliminates expensive post-heat-treatment hard grinding operations.
- Automated Tempering & Stress Relief: Stabilizes retained austenite and delivers uniform impact toughness across all automotive batches.

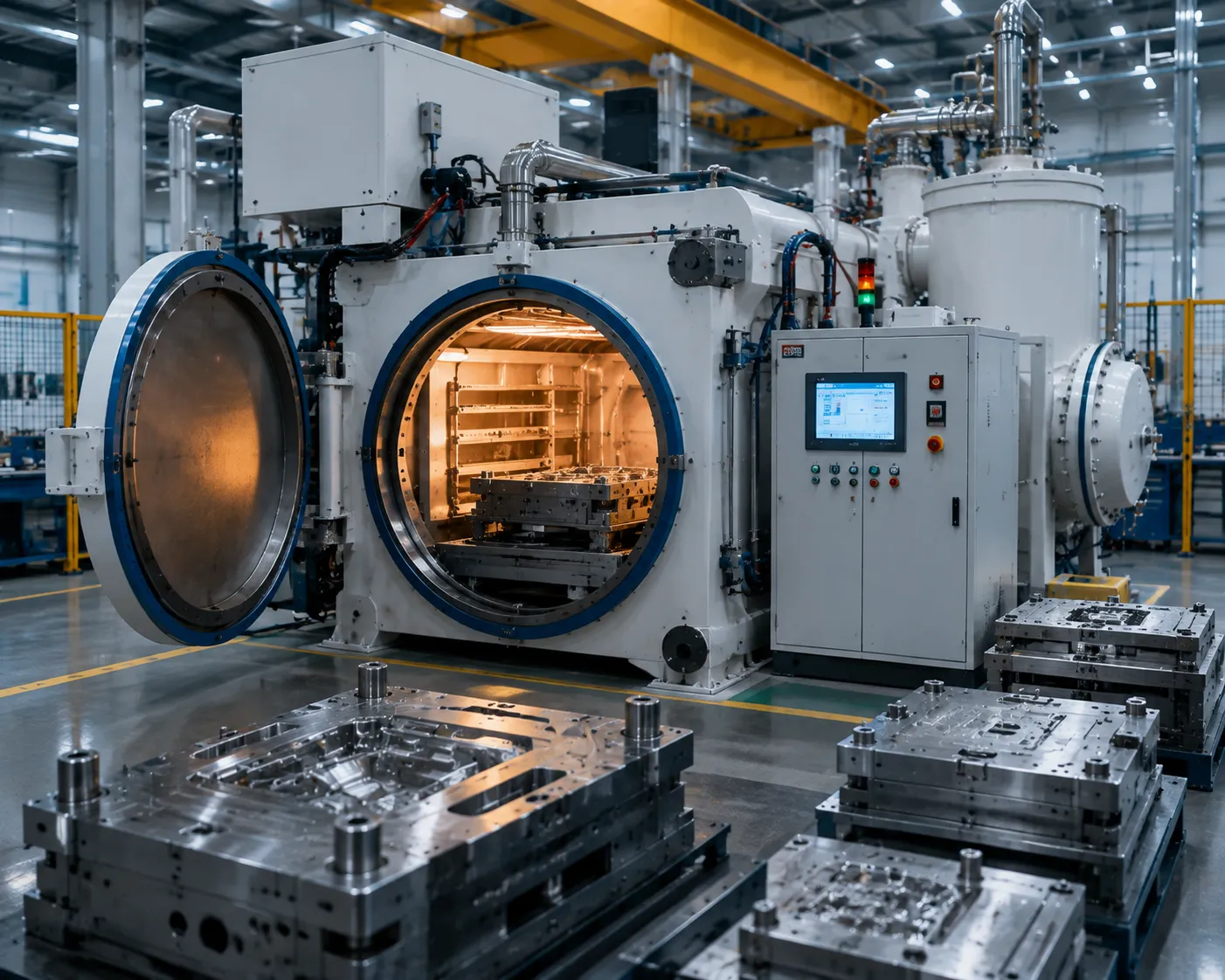

Mold & Tool Manufacturing
Tool steels, high-speed steels (HSS), and aluminum die-casting molds require defect-free thermal processing. Conventional heat treatment methods often suffer from surface decarburization, thermal shock cracking, and uncontrolled dimensional changes that ruin high-value tooling cavities.
Specialized tool and die heat treatment solutions engineered by Haitem Furnace leverage advanced vacuum furnaces and high-vacuum gas quenching technology combined with multi-stage preheating and stress relief cycles. High-purity nitrogen quenching prevents surface oxidation, maintaining pristine mold surface finishes and sharp cutting edges without manual refinishing.
Key Technical Implementation Highlights:
- High-Vacuum Quenching (Up to 15 bar N₂): Ensures uniform cooling rates across thick mold sections without liquid quench hazards.
- Multi-Stage Vacuum Tempering: Eliminates retained austenite and stabilizes precision tooling dimensions during long production runs.
- Sub-Zero Cryogenic Integration: Optional deep cryogenic processing down to -196°C for maximum wear resistance and dimensional stability.
Metallographic Structure: Fine Tempered Martensite | Zero Oxidation
AMS 2750 Compliant | Vacuum Level: 10⁻⁵ mbar Range

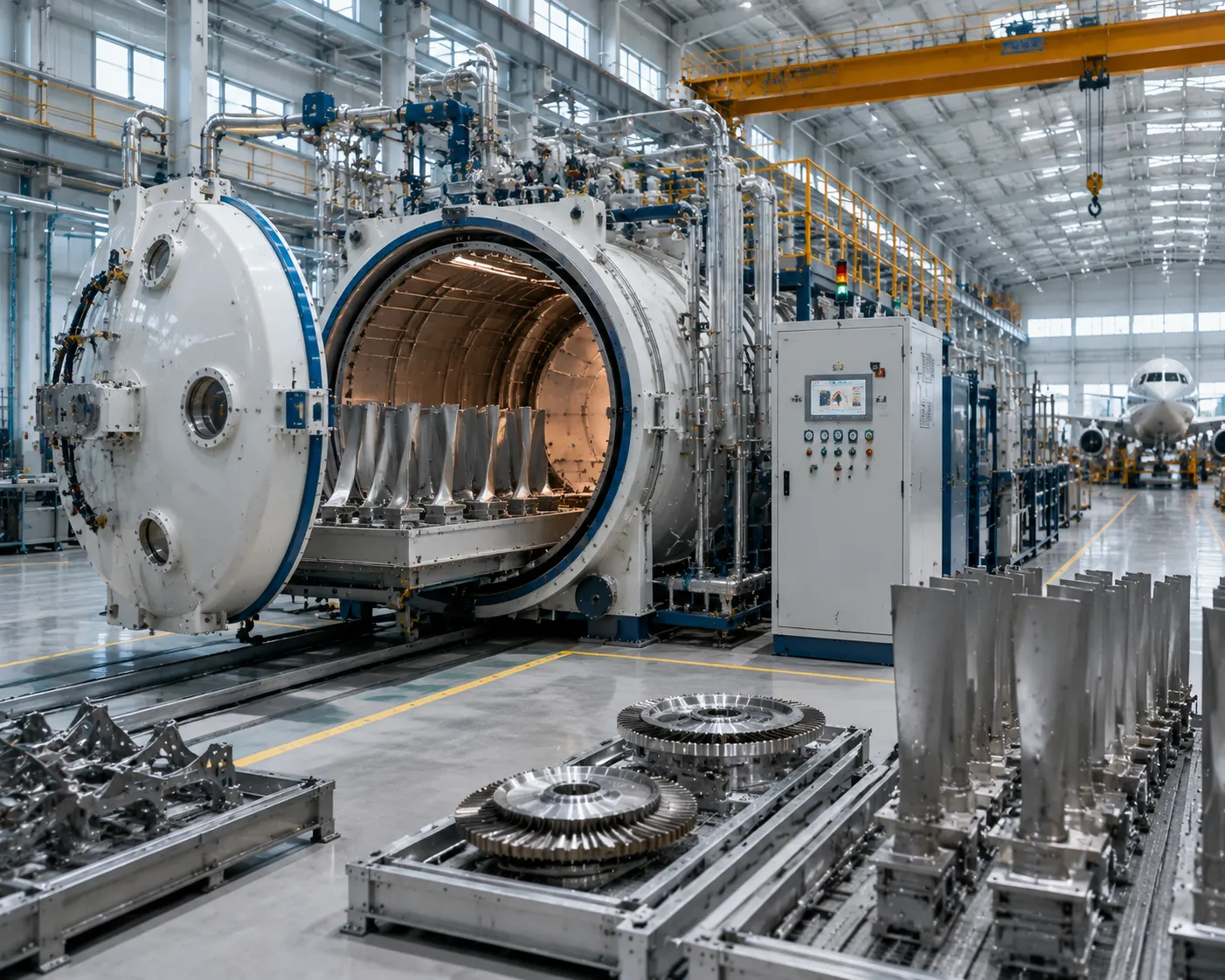

Aerospace & Defense Industry
Demanding aerospace heat treatment applications require absolute adherence to stringent international standards such as AMS 2750 and Nadcap specifications. High-strength titanium alloys (Ti-6Al-4V), nickel-based superalloys (Inconel 718), and specialized stainless steels demand ultra-clean vacuum environments to prevent hydrogen embrittlement and destructive alpha-case formation.
Haitem Furnace delivers advanced industrial heat treatment furnace solutions backed by our world-class manufacturing capabilities. Equipped with real-time SCADA data recording, multi-zone heating elements, and automated rapid gas quench systems, our systems guarantee microstructural consistency across large working zones for turbine blades, landing gear assemblies, and rocket engine structures.
Key Technical Implementation Highlights:
- Precision Solution Treating & Aging: Optimized thermal processing curves for precipitation hardening of high-temperature alloys.
- AMS 2750 Class 2 Uniformity: Tight furnace chamber temperature control within ±2.8°C (±5°F) across the entire effective work zone.
- Full SCADA Data Traceability: Continuous electronic record keeping for individual flight part batch audits and quality verification.

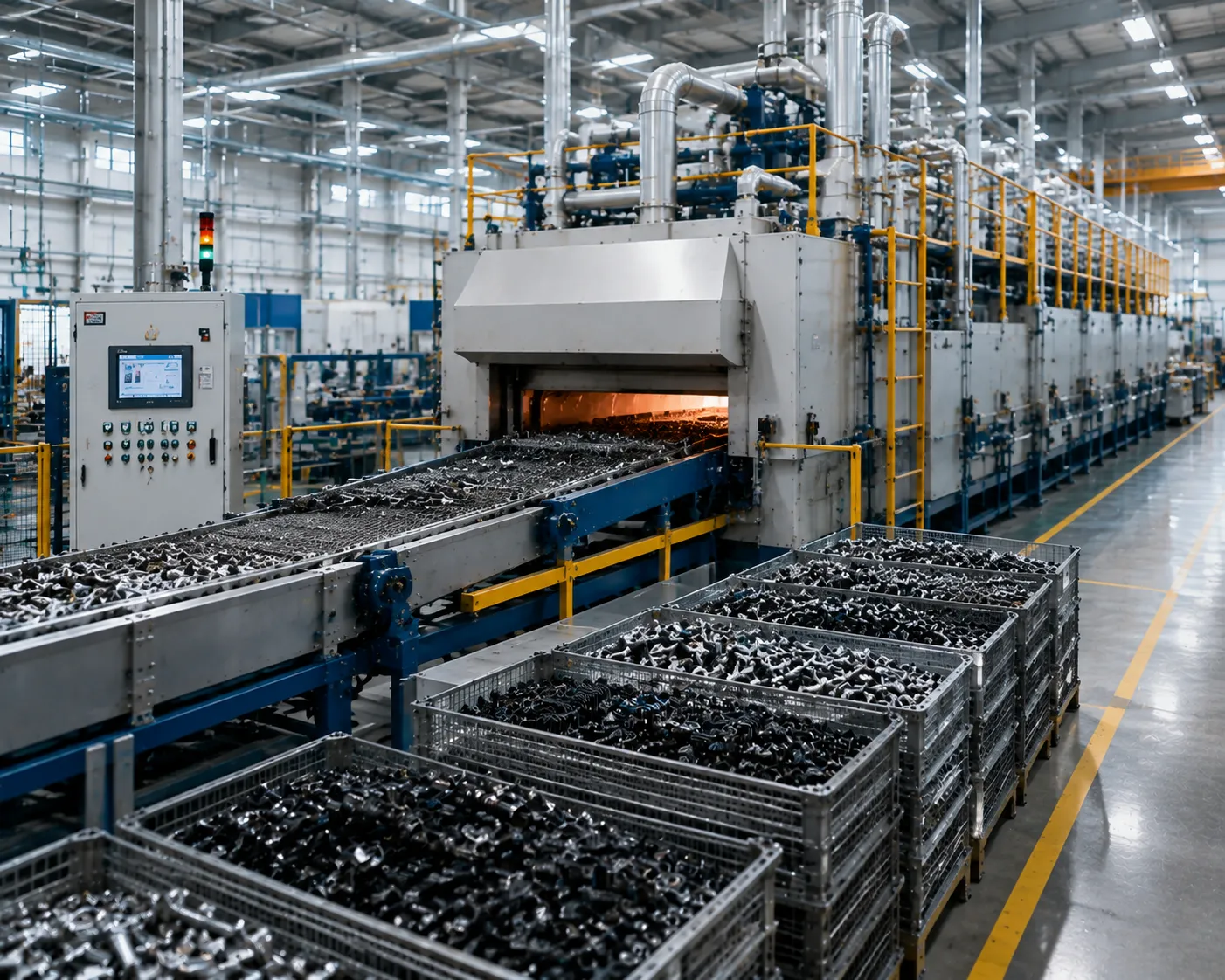

Fasteners & Standard Parts
High-tensile bolts, structural screws, and heavy-duty nuts require high-volume continuous thermal processing to meet ISO 898-1 property classes (8.8, 10.9, 12.9). Heat treating millions of small components per month demands exceptional furnace atmosphere control to eliminate non-uniform hardness or soft spots caused by improper quenching.
Haitem Furnace continuous mesh belt furnace lines integrate automated feeding, ultrasonic washing, controlled atmosphere carburizing/hardening, oil quenching, and continuous tempering. Nitrogen-methanol protective gas systems ensure zero decarburization and uniform carbon retention across complex thread profiles.
Key Technical Implementation Highlights:
- High-Capacity Mesh Belt Line: Continuous throughput up to 2.5 tons per hour featuring dynamic variable-speed drive controls.
- Atmosphere Carbon Control (±0.02% C): Prevents thread root decarburization and hydrogen-induced delayed fracture.
- Energy-Efficient Heat Recovery: Exhaust thermal exchangers reduce overall plant gas and electrical operating expenses.
Grade 10.9 & 12.9 Fasteners | Zero Thread Decarburization
Global Industrial Reliability and Metallographic Standards
From automotive gears to aviation titanium alloy parts, Haitem Furnace heat treatment systems have served multiple high end manufacturing fields globally through our extensive global-service support network. Our integrated thermal processing equipment delivers accurate furnace temperature control, reliable protective atmospheres, and long-term production uptime for demanding industrial facilities worldwide.
Quality Assurance Benchmarks
Frequently Asked Questions About Industrial Heat Treatment Systems
Selecting the optimal industrial thermal processing equipment requires evaluating component metallurgy, target throughput, and strict process parameters. Below, the engineering team at Haitem Furnace answers key questions regarding heat treatment furnace selection, protective atmosphere control, temperature uniformity standards, and equipment troubleshooting to help optimize your plant's thermal operations. Learn more about-us and our dedication to every customer we serve.
Choosing between a continuous heat treatment production line (such as a mesh belt furnace or roller hearth system) and a batch heat treatment furnace (such as a sealed quench box furnace or pit furnace) depends primarily on component volume, geometric uniformity, and operational flexibility.
- Manufacturing high-volume, standardized workpieces like fasteners, bearing rings, or automotive gears.
- Requiring identical thermal cycles, fixed soak times, and continuous inline oil or gas quenching.
- Aiming to minimize manual loading and unloading while maximizing energy efficiency per kilogram processed.
- Processing oversized, heavy, or complex geometries requiring crane loading or deep vertical pit immersion.
- Managing high-mix, low-to-medium production runs with frequent atmosphere or recipe adjustments.
- Requiring multi-stage thermal programs, such as deep carburizing cycles or controlled slow vacuum cooling.
Haitem Furnace provides custom throughput modeling and furnace selection analysis to ensure your equipment architecture balances capital expenditure with long-term operating costs.
Controlled protective atmospheres prevent surface oxidation, scaling, and unwanted decarburization during elevated heating cycles. Selecting the correct gas chemistry depends on workpiece metallurgy, operating temperature, and desired surface chemistry:
Systems engineered by Haitem Furnace feature automated mass flow controllers, oxygen zirconia probes, and multi-stage gas safety interlocks to maintain protective atmosphere purity up to 99.999%.
Heat treatment in advanced vacuum-furnaces operates in an oxygen-free vacuum environment, delivering pristine metallurgical quality, superior dimensional stability, and zero surface contamination compared to conventional protective atmosphere furnaces:
- • Zero Surface Oxidation: Preserves original surface finish and metal luster without scaling or decarburization.
- • Eliminates Secondary Cleaning: Removes the need for post-quench shot blasting, acid pickling, or grinding.
- • Outgassing & Decontamination: Extracts entrapped gases and volatile impurities from high-purity superalloys.
- • High-Pressure Gas Quenching (HPGQ): Employs pressurized nitrogen or argon (up to 20 bar) for uniform cooling with significantly less distortion than liquid oil quenches.
- • Environmentally Friendly: Eliminates hazardous oil fumes, toxic effluence, open flames, and washing chemicals.
Haitem Furnace vacuum thermal processing equipment is engineered for critical applications across aerospace, medical device manufacturing, tool and die steel processing, and precision defense production.
Achieving consistent temperature uniformity (conforming to strict pyrometry standards like AMS 2750 and CQI-9) is critical for preventing thermal distortion and ensuring batch-to-batch repeatability. Haitem Furnace employs four core engineering technologies:
Have Specific Questions About Heat Treatment Selection or Troubleshooting?
The engineering team at Haitem Furnace offers technical process consultation, atmosphere optimization analysis, and custom furnace engineering tailored to your specific workpiece dimensions, materials, and production goals.
