B4C3 Vacuum Furnace Manufacturer for Ceramic Sintering

Product Overview: Engineered for Extreme Densification

Advanced Thermal Processing & Vessel Specifications

By combining deep vacuum extraction with rapid thermal uniformity, our boron carbide sintering furnace eliminates residual porosity and drives full density in dense ceramic matrices.

System Component	Technical Engineering Standard	Operational Advantage
Chamber Design	Double-wall water-cooled 304/316L stainless steel	Eliminates thermal distortion and keeps outer skin cool during extended runs
Atmosphere Control	Deep high vacuum, inert gas (Ar/N2), negative pressure debinding	Prevents oxidation and safely removes organic binders prior to sintering
Thermal Uniformity	Precision-zoned graphite hot zone architecture	Prevents localized thermal stresses and yields uniform grain growth

Key System Highlights

• • Porosity Elimination: High-vacuum capability strips trapped volatile gases before matrix closure occurs.
  • Heavy-Duty Construction: Industrial-grade 304/316L stainless steel pressure vessel ensures decades of continuous, high-temperature service.
  • Multiphase Processing: Integrates organic binder removal (debinding) and high-temperature vacuum sintering into a single, automated cycle.
  • Flexible Atmosphere Control: Precise mass flow controllers allow rapid switching between high vacuum, partial-pressure inert gas purging, and controlled debinding environments.

As an established b4c vacuum furnace factory and direct b4c vacuum furnace company, we deliver complete, turn-key ceramic vacuum sintering equipment tailored to rigid production standards.

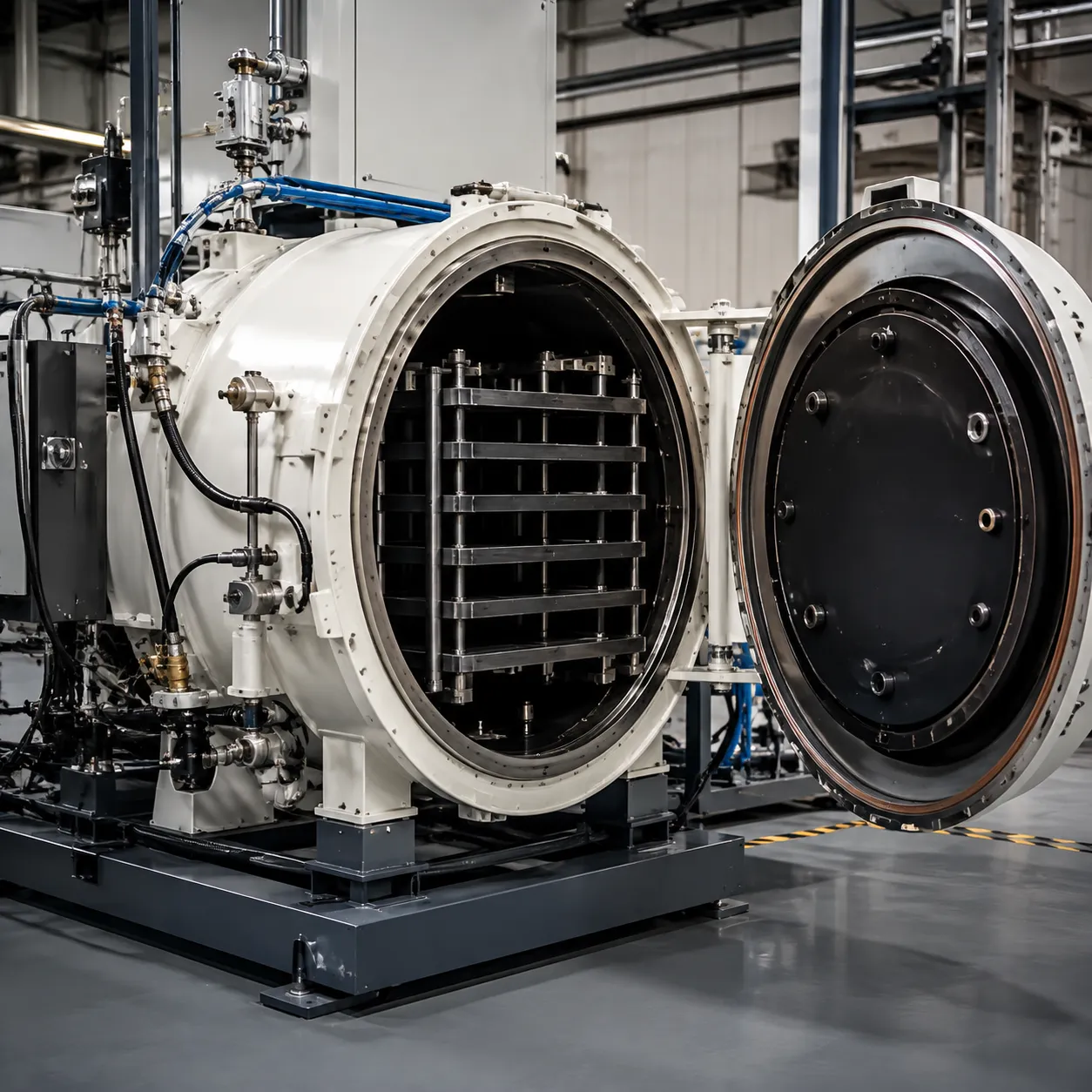

Technical Specifications Matrix

As a direct b4c vacuum furnace manufacturer, we build our systems to match specific processing demands, from laboratory R&D to high-volume industrial production. For a deeper look at operating principles and equipment selection, explore our comprehensive vacuum furnace guide.

Specification / Parameter	Standard Laboratory Model	Industrial Batch Model	Custom Large-Scale Hot Press
Max Operating Temperature	2200°C	2300°C	2400°C
Ultimate Vacuum Pressure	6.6 x 10-4 Pa	5.0 x 10-4 Pa	1.0 x 10-4 Pa
Effective Hot Zone (W x H x L)	200 x 200 x 300 mm	600 x 600 x 900 mm	Up to 1200 x 1200 x 1500 mm
Integrated Press Force	N/A (Pressureless)	Optional (Up to 50 Tons)	Dual-Action (100–1000 Tons)
Heating Element Type	High-Purity Graphite / CFC	Fine-Grain Isostatic Graphite	Ultra-Purity Graphite / Rigid CFC
Atmosphere Options	High Vacuum, Ar, N2	High Vacuum, Ar, N2, Partial Pressure	High Vacuum, Ultra-Pure Inert Gas
Thermal Uniformity	±5°C	±5°C to ±8°C	±5°C

Standard Laboratory Model Parameters

• • Compact footprint: Engineerd for university research, material development, and small-batch testing.
  • Rapid thermal control: Achieves target sintering temperatures quickly with high energy efficiency.
  • Versatile gas control: Supports high-vacuum processing and low-pressure inert gas cycles in a single system.

Industrial Batch Model Thermal & Vacuum Capabilities

• • High-volume throughput: Engineered for production runs of dense B4C ceramic armor plates and wear-resistant components.
  • Automated gas management: Features multi-channel atmosphere switching for precise vacuum-to-gas transitions.
  • Durable hot zone: Multi-layer graphite felt insulation ensures thermal stability across multi-hour soaking stages.

Custom Large-Scale Hot Press Force & Dimensions

• • Extreme pressing force: Delivers up to 1000 tons of hydraulic load to achieve theoretical density in boron carbide matrices.
  • Servo-hydraulic control: High-precision ram positioning controls displacement and holding pressure during peak temperatures.
  • Tailored engineering: Leveraging our advanced manufacturing capabilities, our b4c vacuum furnace factory tailors chamber dimensions and structural frames to fit your facility requirements.

B4C Vacuum Furnace System Features & Architecture

Advanced High-Purity Hot Zone Architecture

How do you maintain strict thermal uniformity when sintering ultra-hard boron carbide ceramics? We equip every b4c vacuum furnace with a rigid, high-purity graphite hot zone furnace enclosure built for maximum stability.

• • High-Purity Graphite Heating Elements: Engineered with low surface load density to prevent localized hotspots and extend element service life.
  • Multi-Layer Carbon Felt Insulation: Minimizes heat loss, protects the outer vessel, and cuts overall energy consumption.
  • Uniform Thermal Distribution: Delivers temperature uniformity within ±5°C across the heating chamber, essential for dense ceramic compacts.

Precision Vacuum & Atmosphere Management

Contamination ruins high-performance ceramics. Our advanced pumping systems deliver rapid evacuation and precise partial-pressure controls for demanding atmosphere requirements. As a leading b4c vacuum furnace manufacturer, we build systems configured for high vacuum, inert gas purging, or controlled negative pressure environments.

Parameter / Feature	Performance Specification	Operational Benefit
Ultimate Vacuum Level	Up to 5 x 10^-4 Pa (Turbomolecular / Diffusion)	Eliminates oxidation during sintering
Working Atmospheres	High Vacuum, Argon (Ar), Nitrogen (N2)	Protects sensitive B4C and MMC matrix materials
Leak Rate	Less than 0.5 Pa/h	Ensures pure, repeatable processing cycles
Pressure Control	Automated mass flow controllers (MFC)	Enables precise atmosphere management

When processing advanced ceramics, choosing the right vacuum sintering furnace ensures optimal material density and phase purity.

Integrated Debinding & Dewaxing Capability

Struggling with organic binders clogging your vacuum pumps? We integrate dedicated dewaxing modules directly into the thermal cycle, combining debinding and final sintering into a streamlined process.

• • Targeted Gas Flow Traps: Directs binder vapors into specialized cold traps to protect vacuum pumps and exhaust valves.
  • Negative Pressure Debinding: Runs under controlled partial pressure to ensure clean binder removal without damaging green ceramic parts.
  • Zero Hot Zone Contamination: Keeps the primary heating chamber free from carbon residue buildup.

Smart Automation & Multi-Tier Safety Interlocks

Safety and precision are non-negotiable for high-temperature industrial processing. As an experienced b4c vacuum furnace factory, we equip our systems with intuitive PLC controls and multi-layered safety interlocks to guarantee non-stop operation.

• • PLC Touchscreen Interface: Offers real-time trend logging, recipe management, and automated multi-segment PID temperature profiling.
  • Water-Cooling Safeguards: Continuous flow and pressure monitoring protect the double-wall stainless vessel during extreme temperature runs.
  • Over-Temperature Interlocks: Independent hardware limits prevent thermal runaways and shield workpieces from accidental overheating.
  • Power Loss Protection: Automatic fail-safe isolation valves lock down the chamber in the event of an unexpected site power interruption.

Explore our complete line of engineered industrial vacuum furnaces built to meet rigorous global manufacturing standards.

Primary Industrial Applications

---

Body & Vehicle Armor Components

Boron carbide stands as the gold standard for lightweight ballistic protection due to its extreme hardness and low density.

• • Near-Theoretical Density: Achieves over 98% density to eliminate micro-voids that compromise structural integrity.
  • Complex Geometries: Sinter large-format curved torso plates, side inserts, and modular tactical vehicle armor panels.
  • Consistently High Hardness: Delivers uniform hardness profiles essential for defeating armor-piercing threats.

---

Industrial Wear Components

When components face relentless abrasive wear, standard alloys fail quickly. Our high-temperature sintering systems produce ultra-durable B4C components designed for harsh environments.

• • Sandblasting & Waterjet Nozzles: Extreme wear resistance maintains precise nozzle diameters under long operational cycles.
  • Precision Mechanical Seals: Processed with uniform grain structures for chemical pumps and slurry management systems.
  • Wire-Drawing Dies: Perfect for high-stress industrial wire processing through advanced powder metallurgy applications.

---

Nuclear Power & Defense

Boron carbide’s exceptional neutron absorption cross-section makes it indispensable for nuclear containment and control. As a dedicated b4c vacuum furnace manufacturer, we design systems that meet strict nuclear-grade quality standards.

• • Control Rods & Shielding: Process high-purity B4C pellets and neutron-absorbing tiles with zero atmospheric contamination.
  • Burnable Poisons: Maintain tight chemistry control to ensure precise neutron capture characteristics in power reactors.
  • Defense Hardware: Reliable thermal performance for specialized military component production.

---

Composite Materials Development

Fabricating metal matrix composites like Aluminum-Boron Carbide (Al/B_{4}C) requires precise thermal management to prevent unwanted interfacial reactions.

• • Al/B4C Composites: Combines the stiffness of ceramic with the toughness of metal for lightweight aerospace structures.
  • Integrated Debinding: Safely eliminates organic binders prior to high-vacuum densification.
  • Tailored Atmosphere Control: Our direct b4c vacuum furnace factory designs enable seamless transitions from vacuum to negative pressure inert gas for custom advanced materials processing.

Custom Engineering Capabilities for Your B4C Vacuum Furnace

Standard off-the-shelf equipment rarely meets the rigorous demands of advanced ceramic densification. As an experienced b4c vacuum furnace manufacturer, we tailor every system to match your precise footprint, material specifications, and throughput goals. Through our dedicated custom design and engineering capabilities, we build high-temperature vacuum sintering systems engineered for long-term operational success.

Dimensional Tailoring

We custom-build chamber dimensions and load capacities around your component geometry and production volume.

• • Hot Zone Configuration: Choose between cylindrical graphite hot zones for uniform radial heating or rectangular graphite zones designed for stacked planar components.
  • Loading Orientations: Top-loading, bottom-loading, or front-loading vessel architectures tailored to your facility setup and automated material handling systems.
  • Usable Work Zone: Scalable working volumes from compact laboratory sizes (150 × 150 × 200 mm) up to full-scale industrial chambers (800 × 800 × 1200 mm and beyond).

Integrated Hot Pressing

For applications requiring theoretical density, we offer seamless tailored process integration that converts a standard system into a high-tonnage vacuum hot press sintering furnace.

• • Precision Force Control: Integrated single-action or dual-action hydraulic rams offering controlled pressing forces from 10 tons to over 500 tons.
  • Real-Time Displacement Tracking: High-resolution optical or linear transducers to monitor compaction and shrinkage throughout the sintering cycle.
  • Grafoil & Die Setup: High-strength graphite tooling matched to your specific part shapes, ensuring zero movement under maximum load at 2200°C.

Rapid Cooling Modules

To boost furnace throughput and shorten overall cycle times, our b4c vacuum furnace factory installs engineered forced-gas cooling circuits.

• • Directional Gas Quenching: Multi-directional gas nozzles deliver high-purity Argon or Nitrogen directly across the hot zone.
  • External Heat Exchangers: Closed-loop water-to-gas heat exchangers rapidly pull heat out of the vacuum vessel.
  • Controlled Cooling Ramps: Programmable cooling rates prevent thermal shock cracking in sensitive Boron Carbide (B4C) and metal matrix composite parts.

Why Partner with Haitem Furnace Factory

When sourcing a high-performance b4c vacuum furnace, working directly with the original equipment manufacturer makes all the difference in build quality, cost efficiency, and thermal performance. As a leading b4c vacuum furnace factory and global b4c vacuum furnace manufacturer, Haitem Furnace designs and builds industrial thermal systems tailored specifically for extreme boron carbide processing. By selecting our engineered sintering furnaces, clients eliminate middleman markup while retaining total control over custom system specifications.

---

Factory-Direct Manufacturing

We manage every phase of the b4c vacuum furnace manufacture process in-house—from pressure vessel welding to hot zone precision assembly.

• • Eliminate Middleman Costs: Direct sourcing from our manufacturing facility delivers direct factory pricing without distributor markups.
  • Customization at Source: Full flexibility to tailor vessel dimensions, pressing force, graphite insulation, and vacuum pumping stacks.
  • Streamlined Production: Unified engineering and manufacturing teams reduce lead times and ensure seamless quality control.

---

Quality Compliance & Engineering Rigor

As an established b4c vacuum furnace supplier, we enforce strict operational standards to guarantee that every system meets severe industrial demands.

Standard / Compliance	Manufacturing Integration	Operational Benefit
ISO 9001:2015 Quality Management	Comprehensive audit trail from raw material intake to final testing	Consistent structural integrity and build quality
CE & UL Electrical Safety	Certified control panels, safety interlocks, and emergency stops	Seamless compliance with international workplace safety standards
Helium Mass Spectrometry	Vacuum chamber tightness verified to ultra-strict leak rates	Prevents graphite degradation and oxidation during high-temp runs

---

Global Technical Support & Lifetime Care

Partnering with our b4c vacuum furnace company means receiving end-to-end lifecycle support wherever your plant operates. Explore our furnace buying guide to see how we evaluate site requirements and streamline deployment.

• • Turnkey On-Site Commissioning: Our field technicians manage physical installation, vacuum integration, and initial process testing.
  • 24/7 Remote Diagnostics: Integrated PLC telemetry allows our engineers to perform real-time troubleshooting and operational optimization worldwide.
  • Stocked Spare Parts Inventory: Strategic reserves of heating elements, insulation boards, thermocouples, and seals ensure quick global dispatch to minimize downtime.

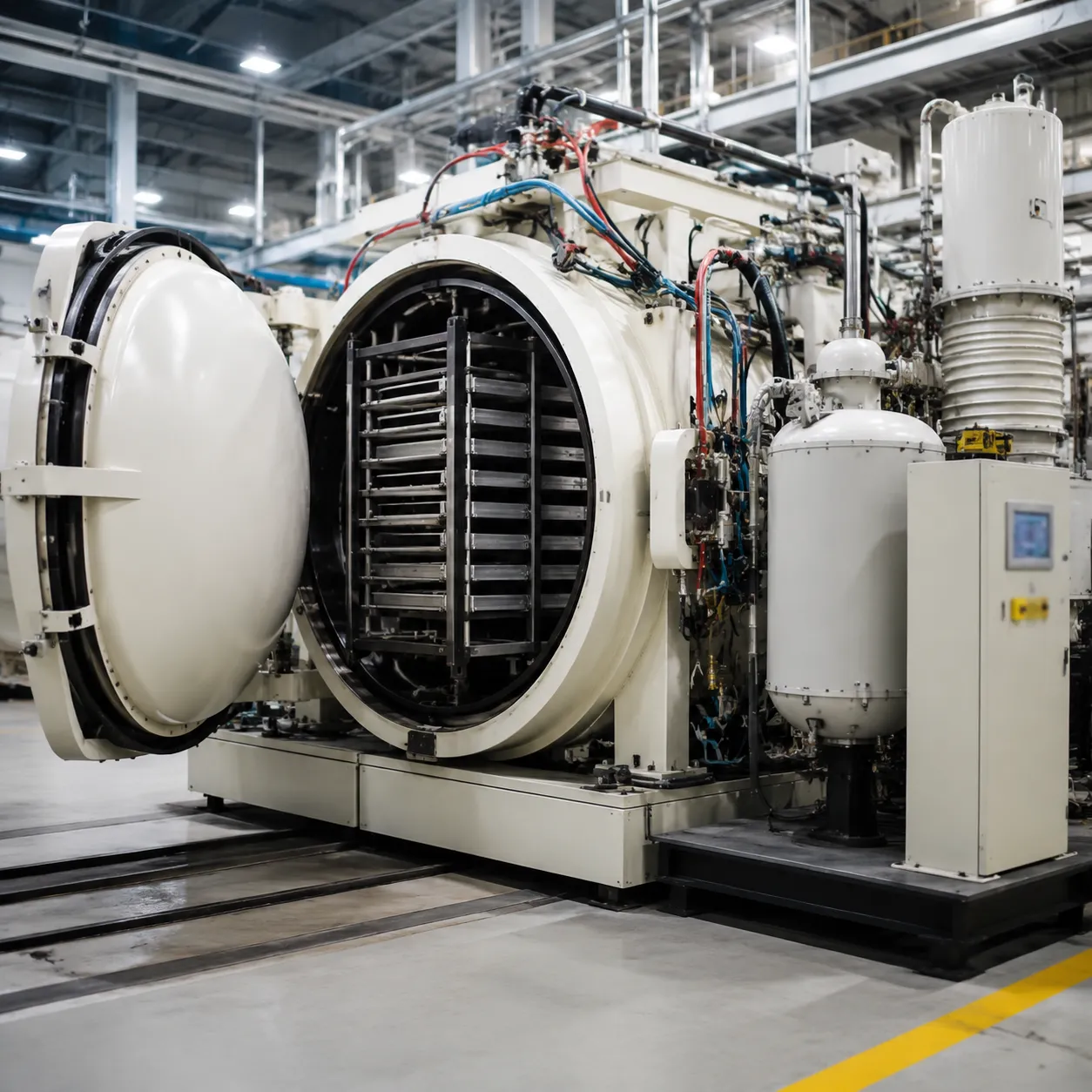

Ordering Process for Custom B4C Vacuum Furnace Systems

Stage	Milestone	Key Deliverables & Actions
01	Technical Requirement Review	Process parameter evaluation, chamber sizing, and atmosphere planning.
02	Engineering Proposal & CAD Design	Detailed 3D modeling, power supply specs, and structural blueprints.
03	Factory Acceptance Testing (FAT)	Vacuum leak checks, full thermal profiling, and safety interlock validation.
04	Global Shipping & Commissioning	Heavy equipment packing, overseas logistics, hookup, and staff training.

Step 1: Technical Requirement Review

We start by assessing your exact ceramic densification goals. As a leading b4c vacuum furnace supplier, we examine your target boron carbide heating profiles, vacuum thresholds, inert gas flushing requirements, and hot-pressing press force needs to determine the ideal structural architecture.

Step 2: Engineering Proposal & CAD Design

Our design team generates complete CAD models and utility schematics tailored to your shop floor layout. We optimize the vessel geometry, water-cooling channels, and graphite hot zone configuration to lower power consumption while maximizing thermal uniformity. You can review optimal furnace configurations across our complete range of high temperature vacuum furnace products.

Step 3: Factory Acceptance Testing (FAT)

Before any system departs our b4c vacuum furnace factory, it undergoes rigorous staging and testing. We run ultimate vacuum level checks, helium leak detection, temperature uniformity mapping, and emergency interlock testing compliant with international standards and our verified quality certifications.

Step 4: Global Shipping & On-Site Commissioning

Our turnkey service covers sea/air transport packaging, export documentation, and site delivery. Once on site, our field engineers manage system positioning, utility connections, final calibration, and operator training to guarantee immediate production readiness.

Frequently Asked Questions About B4C Vacuum Furnaces

What is the difference between pressureless vacuum sintering and vacuum hot pressing for B4C?

Pressureless sintering uses thermal energy alone (2100°C–2300°C) to densify Boron Carbide parts, making it ideal for complex, near-net-shape geometries. In contrast, a vacuum hot press sintering furnace applies simultaneous uniaxial pressure (up to 100 MPa) during heating. This mechanical pressing achieves near-theoretical density (>99%) at lower temperatures, making hot pressing the preferred route for flat armor tiles and ballistic plates.

How does our b4c vacuum furnace factory handle chemical reactivity above 2000°C?

As an authoritative b4c vacuum furnace manufacturer, we build custom high-purity graphite hot zones equipped with carbon-carbon (C/C) composite insulation and protective graphite foil linings. This architectural design prevents boron vapor from degrading heating elements, eliminates carbon contamination, and maintains thermal uniformity during boron carbide sintering furnace operation above 2000°C.

Can this furnace handle both Boron Carbide (B4C) and Silicon Carbide (SiC)?

Yes. Every high temperature vacuum furnace built by our team supports multi-material processing for B4C, SiC, and metal matrix composites (Al/B4C). The control system manages rapid switching between argon, nitrogen, and high vacuum atmospheres up to 2400°C. For benchtop testing or recipe development, check out our versatile range of laboratory furnaces configured for advanced ceramic research.

What are the utility requirements for industrial b4c vacuum furnace equipment?

As a leading b4c vacuum furnace supplier, we provide exact utility parameters to ensure smooth site preparation and rapid commissioning:

Utility Parameter	Industrial B4C Vacuum System Specification
Electrical Power	3-Phase 380V / 415V / 480V (50/60 Hz), 80 kW to 450 kW depending on chamber volume
Cooling Water	Closed-loop recirculating chiller, inlet pressure 0.3–0.5 MPa, temperature <25°C
Inert Process Gas	High-purity Argon (99.999%) or Nitrogen, regulated at 0.2–0.4 MPa
Pneumatic Air	Dry, oil-free compressed air at 0.6–0.8 MPa for safety interlocks and valve drives
Vacuum Performance	Industrial pumping stack achieving operating vacuum down to 1x10^-3 Pa
